Каталог запасных частей к технике: SDLG LG956L. Control lever assembly

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
3
3
4
4
4
5
5
6
6
7
7
8
8
8
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
23
23
24
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
54
55
56
57
58
59

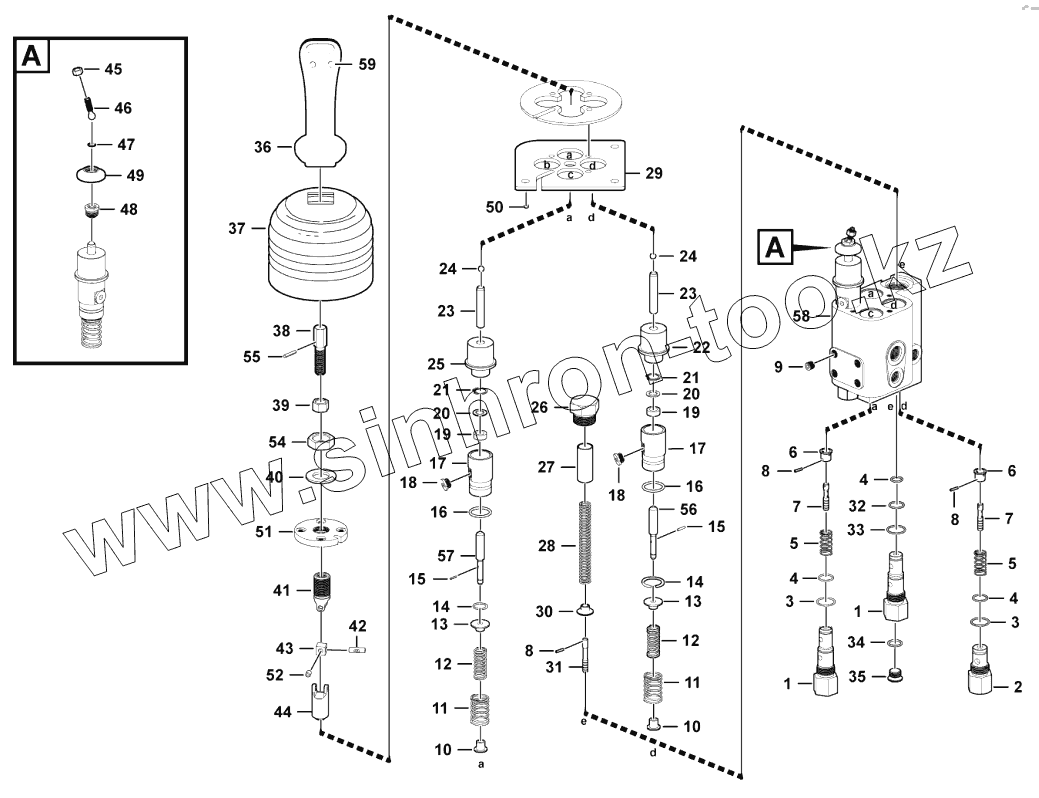

Позиция на иллюстрации Заводской номер детали Название детали
1 4120002027005 Safety valve seat dxs-18-01
2 4120002027006 Safety valve seat dxs-16-04
3 4120002027007 O-ring 18x1.8 gb3452.1-82
4 4120002027008 O-ring 12.5x1.8 gb3452.1-82
5 4120002027009 Spring dxs-16-01
6 4120002027010 Safety valve seat dxs-16-02
7 4120002027011 Valve stem dxs-16-03
8 4120002027012 Pin p2.5x12 gb879-86
9 4120002027013 R1/8 plug dxs-22
10 4120002027014 Spring seat dxs-10-05
11 4120002027015 Spring dxs-17
12 4120002027016 Spring dxs-10-04
13 4120002027017 Spring seat dxs-10-06
14 4120002027018 Wired cirllip dxs-10-03
15 4120002027019 Pin <p2x10 gb879-86
16 4120002027020 O-ring 22.4x2.8 gb3452.1-82
17 4120002027021 Cover dxs-10-02-01
18 4120002027022 Plastic plug dxs-10-02-02
19 4120002027001 Sealing ring
20 4120002027023 Cover dxs-10-07
21 4120002027024 Snap ring gb893.1-86
22 4120000370024 Magnet
23 4120002027025 Pin dxs-05-01
24 4120002027026 Steel ball gb308-84
25 4120000370018 Axile bush dxs-11
26 4120002027027 Plug dxs-21
27 4120002027028 Guided set dxs-19
28 4120002027029 Spring dxs-20
29 4120002027030 Cover dxs-07-03
30 4120002027031 Spring seat dxs-18-03
31 4120002027032 Valve stem dxs-18-02
32 4120002027033 O-ring 20x1.8 gb3452.1-82
33 4120002027034 O-ring 16x1.8 gb3452.1-82
34 4120002027035 O-ring 11.8x1.8 gb3452.1-82
35 4120002432424 Plug
36 4120002027002 Control kit
37 4120000370014 Cover
38 4120000370005 Nipple
39 4120002027036 Nut m12 gb6170-86
40 4120002027037 Washer-20-140hv gb848-85
41 4120002027038 Seat dxs-07-01
42 4120002027039 Pin dxs-07-05
43 4120002027040 Articulate dxs-07-02
44 4120002027041 Seat dxs-07-05
45 4110001321160 Nut gb6170-86m6din934 80637006014
46 4120002027042 Pin dxs-03-01
47 4120002027043 Snap ring 8 gb895.1-86
48 4120002027044 Pin seat dxs-03-03
49 4120002027045 Cover
50 4120002027046 Screw dxs-07-08
51 4120000370009 Plate
52 4120002027047 Pin dxs-07-04
53 4120002027048 Pin dxs-07-06
54 2810000357004 Nut
55 4110001321157 Spring pin
56 4120002027049 Plate
57 4120002027050 Plate
58 4120000370013 Valve body dxs-08
59 4120002027051 Button
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
