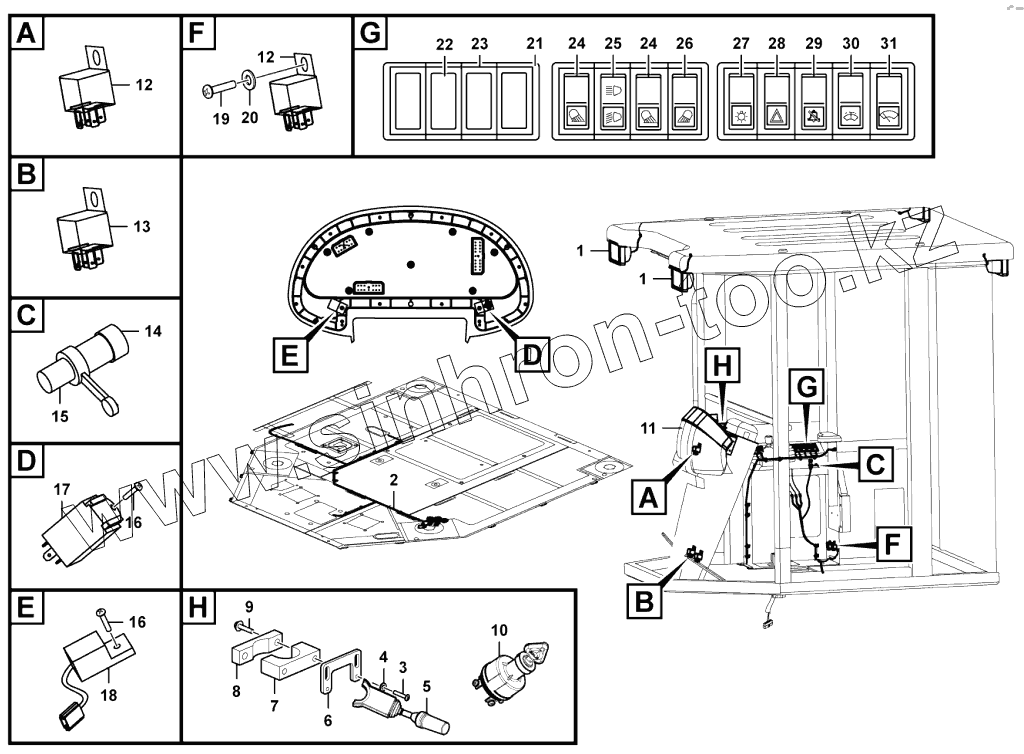

Каталог запасных частей к технике: SDLG LG956L. Cab electric system
1
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4130001685 | Lamp | |
| 2 | 29430000752 | Cable haness | |
| 3 | 4014000026 | SCREW | |
| 4 | 4015000207 | WASHER | |
| 5 | 4130000290 | STEERING SWITCH | |
| 6 | 29370012571 | SUPPORTING PLATE | |
| 7 | 29370012561 | FIXED PEDESTAL | |
| 8 | 29370012551 | PIPE NIP | |
| 9 | 4011000481 | BOLT | |
| 10 | 11215151 | Starter switch | |
| 11 | 4130001906 | Display panel | |
| 12 | 4130000869 | Relay | |
| 13 | 4130000912 | Relay | |
| 14 | 4130000331 | STANDBY PLUG | |
| 15 | 4130000332 | STANDBY SOCKET | |
| 16 | 4014000066 | Screw | |
| 17 | 4130000022 | FLASH RELAY SG252 | |
| 18 | 4130001291 | Buzzer | |
| 19 | 4014000048 | SCREW | |
| 20 | 4015000110 | WASHER | |
| 21 | 4130000498 | SIDE FRAME | |
| 22 | 4130000496 | CAP | |
| 23 | 4130000497 | Switch panel | |
| 24 | 4130000491 | Rocker switch | |
| 25 | 4130000555 | FRONT BlG LAMP BUTTON-SWlTCH JK931-01QDD | |
| 26 | 4130000490 | Rocker switch | |
| 27 | 4130000489 | BACK LAMP BUTTON-SWlTCH JK931-01BGD | |
| 28 | 4130000492 | Rocker switch | |
| 29 | 4130001052 | Rocker switch | |
| 30 | 4130000499 | SPRAY WATER BUTTON-SWITCH | |
| 31 | 4130000493 | Rocker switch |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
