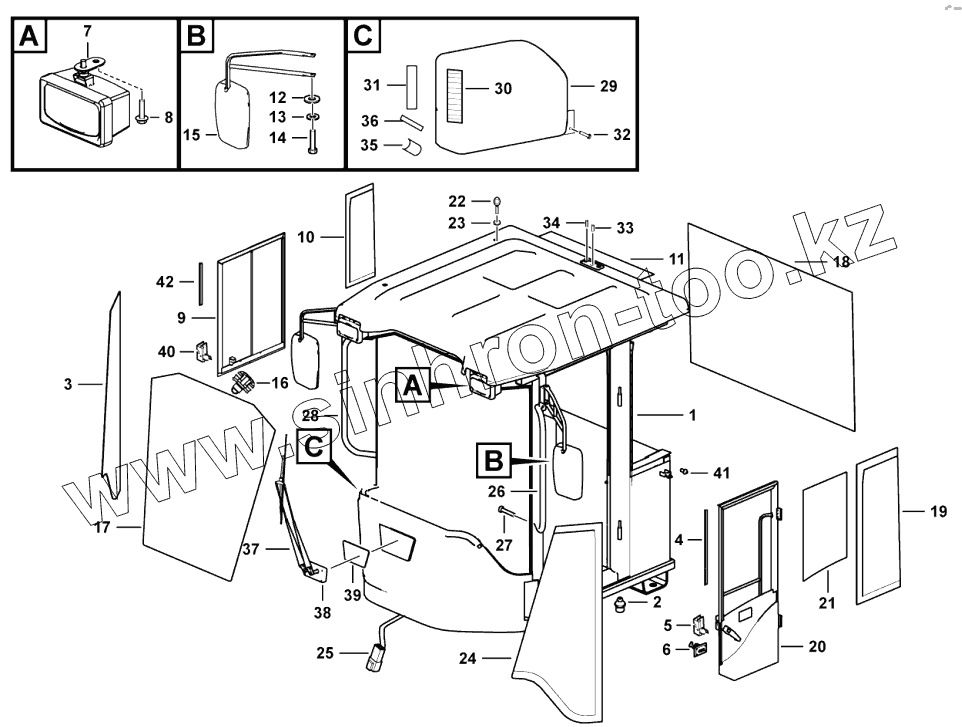

Каталог запасных частей к технике: SDLG LG956L. Cab assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4190000941 | CAB GROUP LG956 | |
| 2 | 4030000535 | OIL CUP | |
| 3 | 4190000945 | RIGHT FRONT GLASS | |
| 4 | 4190000966 | RUBBER SPACER | |
| 5 | 4190000605 | LEFT LOCK | |
| 6 | 4190000595 | COUNTER LOCK | |
| 7 | 4190000968 | TRANSTION PLATE OF LIGHT | |
| 8 | 4011000474 | BOLT | |
| 9 | 4190000951 | RIGHT DOOR GUROUP | |
| 10 | 4190000948 | RIGHT REAR GLASS | |
| 11 | 4190000953 | REAR ARM REST | |
| 12 | 4015000072 | WASHER | |
| 13 | 4015000036 | WASHER | |
| 14 | 4011000105 | BOLT | |
| 15 | 4190000575 | BACK UP GLASS GROUP | |
| 16 | 4190000952 | GLASS SUSPENSION CENTER FIXED GROUP | |
| 17 | 4190000943 | FRONT WINDSHIELD | |
| 18 | 4190000949 | REAR GLASS | |
| 19 | 4190000947 | LEFT REAR GLASS | |
| 20 | 4190003071 | Cover | |
| 21 | 4190000946 | DOOR GLASS | |
| 22 | 4014000028 | SCREW | |
| 23 | 4190000956 | SEAL WASHER | |
| 24 | 4190000944 | LEFT FRONT GLASS | |
| 25 | 4190000920 | LG956 CAB WIRING | |
| 26 | 4190000965 | LEFT ARM REST | |
| 27 | 4014000055 | SCREW GB70.1-M12x30EpZn-8.8 | |
| 28 | 4190000957 | RIGHT ARM REST | |
| 29 | 29290009141 | BOILER'S HOOD | |
| 30 | 29290009151 | AIR-INLET GRILLE | |
| 31 | 29290009171 | SPONGE | |
| 32 | 4011000291 | BOLT | |
| 33 | 4190000958 | RUBBER COVR-30 | |
| 34 | 4190000959 | RUBBER COVR-10 | |
| 35 | 4190000960 | SEAL OF TUBE SPONGE | |
| 36 | 4190000961 | LINEAR SEALING SPONGE | |
| 37 | 4190000599 | WIPER BUTTON | |
| 38 | 4190000963 | WIPER BUTTON CAP | |
| 39 | 4190000964 | WIPER BUTTON GASKET | |
| 40 | 4190000604 | RIGHT LOCK | |
| 41 | 4190000596 | CHECK OF UPPER GATE | |
| 42 | 4190000967 | RUBBER SPACER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
