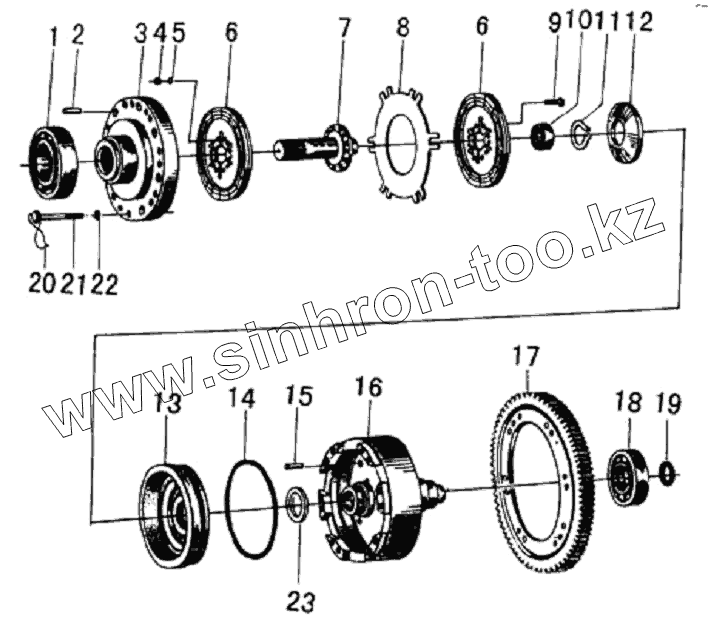

Каталог запасных частей к технике: SDLG LG956L. 4TH SHAFT ASSY (II)
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4021000015 | BALL BEARING | |
| 2 | 3030900112 | PIN | |
| 3 | 3030900103 | BACK DISK FOR THE SECOND SPEED | |
| 4 | 4013000162 | NUT | |
| 5 | 4015000036 | WASHER | |
| 6 | 2030900020 | DRIVE DISK ASSY FOR THE SECOND SPEED | |
| 7 | 3030900104 | SHAFT FOR THE SECOND SPEED | |
| 8 | 3030900106 | DRIVEN DISK FOR THE SECOND SPEED | |
| 9 | 4011000105 | BOLT | |
| 10 | 4021000016 | BALL BEARING | |
| 11 | 4015000023 | RIONG SNAP | |
| 12 | 3030900114 | DISH SPRING | |
| 13 | 3030900107 | PISTION | |
| 14 | 3030900113 | SEALING RING | |
| 15 | 3030900115 | PIN | |
| 16 | 3030900109 | CYLINDER ASSY FOR THE SECOND SPEED | |
| 17 | 3030900108 | OUTPUT GEAR OF THE INTER-SHAFT | |
| 18 | 4021000024 | BALL BEARING | |
| 19 | 3030900111 | SEAL | |
| 20 | 4090000011 | STEEL WIRE | |
| 21 | 3030900105 | BOLT | |
| 22 | 4015000026 | WASHER | |
| 23 | 3030900110 | SEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
