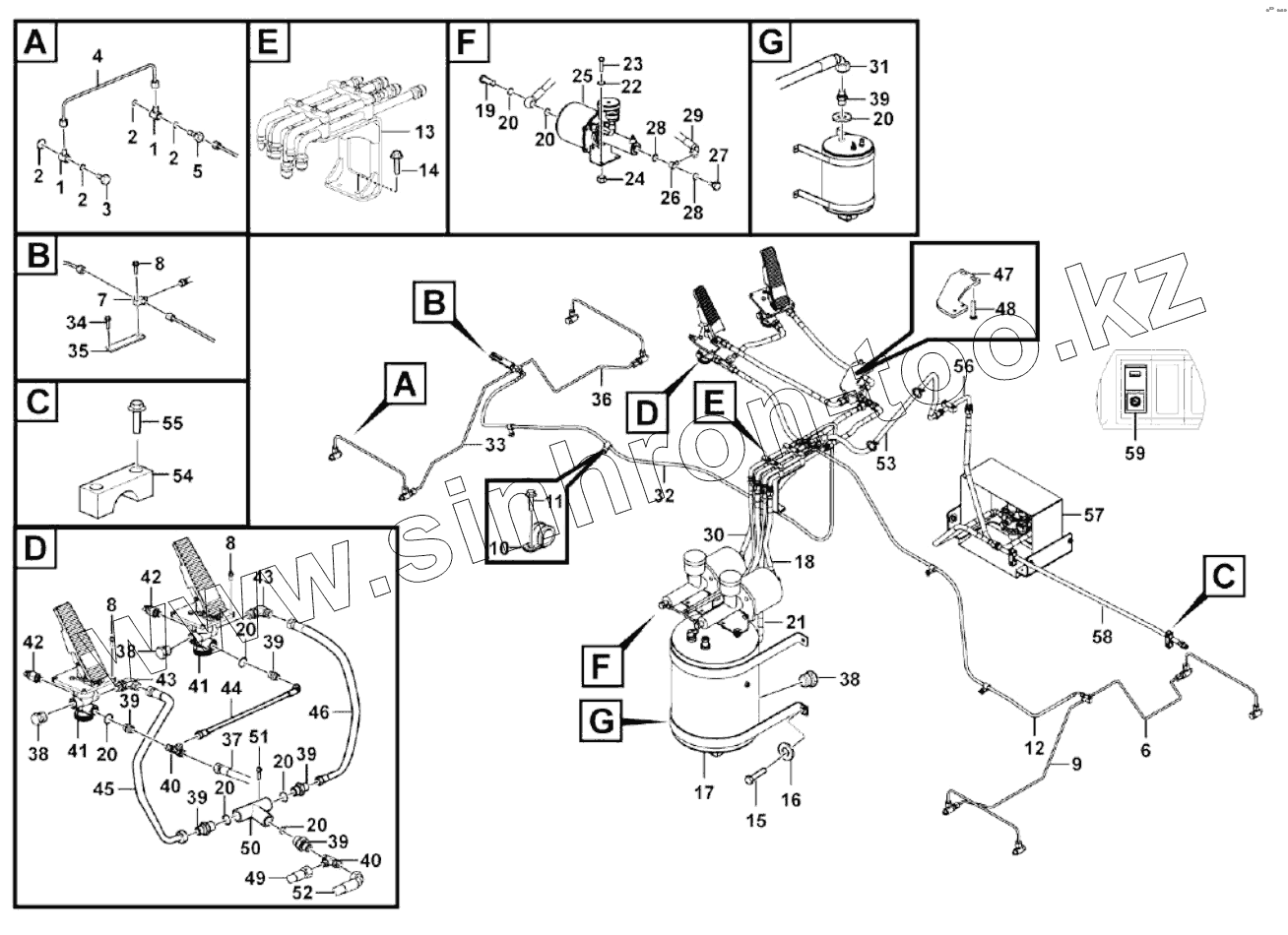

Каталог запасных частей к технике: SDLG LG956FH. Travel brake system
1
1
2
2
2
2
3
4
5
6
7
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
20
20
20
20
20
20
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
34
35
36
37
38
38
38
39
39
39
39
39
39
40
40
41
41
42
42
43
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29220009021 | Block | |
| 2 | 4030000552 | O-Ring | |
| 3 | 29220001251 | CONNECTOR | |
| 4 | 29220020451 | Brake pipe | |
| 5 | 29220009011 | Nipple | |
| 6 | 29220020171 | Brake pipe | |
| 7 | 29220009031 | Three-way nipple | |
| 8 | 4011001295 | Screw | |
| 9 | 29220020151 | Brake pipe | |
| 10 | 4041002412 | Clamp | |
| 11 | 4011001313 | Screw | |
| 12 | 29220022151 | Hose | |
| 13 | 29220024741 | Pressure pipe connection | |
| 14 | 4011001296 | Screw | |
| 15 | 4011001250 | Screw | |
| 16 | 4015000427 | Washer | |
| 17 | 29220019831 | Air reservoir | |
| 18 | 29220025661 | Hose assembly | |
| 19 | 29010000041 | BOLT | |
| 20 | 29220000811 | WASHER | |
| 21 | 4041002784 | Hose assembly | |
| 22 | 4015000426 | Washer | |
| 23 | 4011001249 | Screw | |
| 24 | 4013000370 | Nut | |
| 25 | 4120006981 | Pneumatic cylinder | |
| 26 | 29220001241 | CONNECTOR | |
| 27 | 29220001231 | CONNECTOR | |
| 28 | 4030000551 | O-ring | |
| 29 | 29220024781 | Hose assembly | |
| 30 | 29220025671 | Hose assembly | |
| 31 | 4041002783 | Hose assembly | |
| 32 | 4041001183 | HOSE LGB153-202310 | |
| 33 | 29220020111 | Brake pipe | |
| 34 | 4011001297 | Screw | |
| 35 | 29220025681 | Plate | |
| 36 | 29220020131 | Brake pipe | |
| 37 | 4041002844 | Hose assembly | |
| 38 | 4030000055 | PLUG JB1000-M22x1.5-35 | |
| 39 | 29220017601 | Nipple | |
| 40 | 29220012381 | Three-way nipple | |
| 41 | 4120006889 | Brake valve | |
| 42 | 4120003757 | Pressure switch | |
| 43 | 29220016531 | Nipple | |
| 44 | 4041002788 | Hose assembly | |
| 45 | 4041002844 | Hose assembly | |
| 46 | 4041002802 | Hose assembly | |
| 47 | 29220023261 | Bracket | |
| 48 | 4011001299 | Screw | |
| 49 | 4041002933 | Hose assembly | |
| 50 | 4120002025 | SHUTTLE VALVE VS22 | |
| 51 | 4011000281 | BOLT GB16674-M6x40EpZn-8.8 | |
| 52 | 4041002934 | Hose assembly | |
| 53 | 4041002935 | Hose assembly | |
| 54 | 29220018641 | Block | |
| 55 | 4011001301 | Screw | |
| 56 | 29220021121 | Brake pipe | |
| 57 | 29220026721 | Water separator | |
| 58 | 29220017521 | Brake pipe | |
| 59 | 4130000504 | Rocker switch |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
