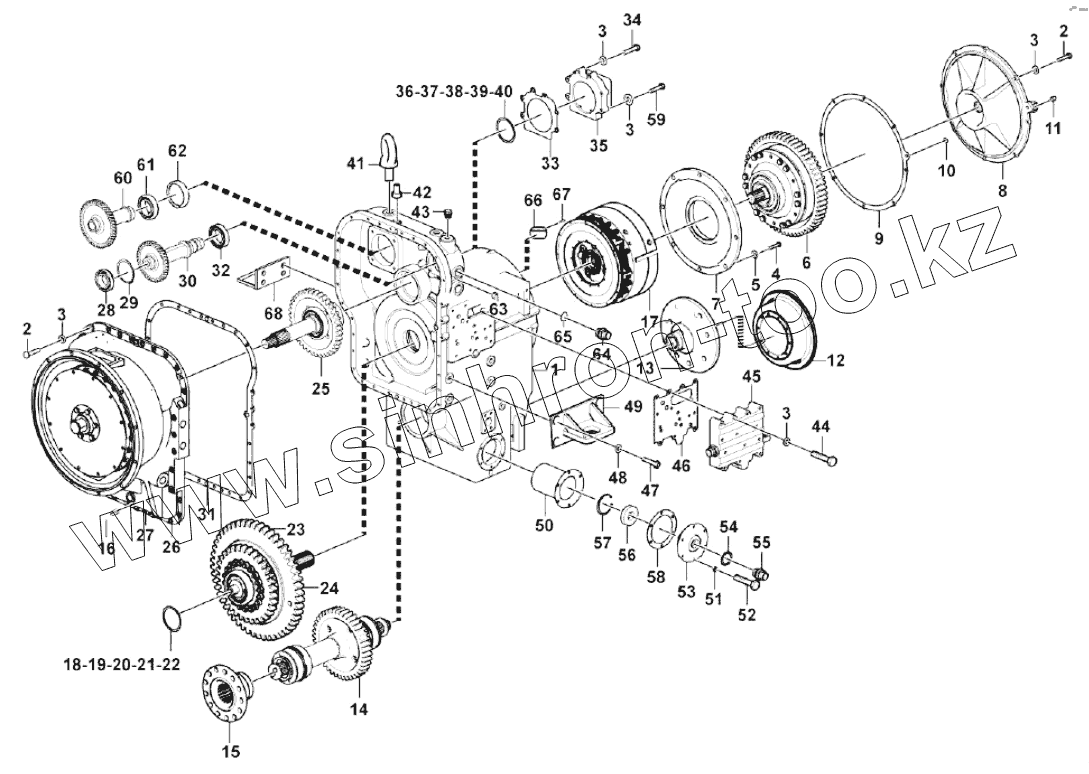

Каталог запасных частей к технике: SDLG LG956FH. Transmission
1
2
2
3
3
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29050027231 | Transmission housing | |
| 2 | 4011000017 | BOLT | |
| 3 | 29050015481 | Washer | |
| 4 | 4011001127 | Screw | |
| 5 | 4015000358 | Plain washer | |
| 6 | 29050024791 | Shaft | |
| 7 | 29050022981 | Cover | |
| 8 | 3030900091 | END COVER | |
| 9 | 29050011321 | SEALING SPACER | |
| 10 | 4030000011 | O-RING | |
| 11 | 3030900102 | PLUG SCREW | |
| 12 | 29230009952 | Brake assembly | |
| 13 | 29050027361 | Flange | |
| 14 | 29050024251 | Output shaft | |
| 15 | 29050021541 | Flange | |
| 16 | 29050023122 | Pin | |
| 17 | 29050032151 | Planet gear kit | |
| 18 | 29050025551 | Shim | |
| 19 | 29050020581 | Shim | |
| 20 | 29050020541 | Shim | |
| 21 | 29050020531 | Shim | |
| 22 | 29050020521 | Shim | |
| 23 | 7200000462 | AXIS ASSEMBLY | |
| 24 | 29050019471 | Clutch | |
| 25 | 2030900027 | 3RD SHAFT ASSY | |
| 26 | 29040012411 | Torque converter | |
| 27 | 4110003131 | Torque covertor | |
| 28 | 4021000019 | BEARING | |
| 29 | 4015000024 | RETAINNER RING | |
| 30 | 29050012701 | GEAR | |
| 31 | 29050023111 | Gasket | |
| 32 | 4021000012 | BEARING | |
| 33 | 29050011363 | Gasket | |
| 34 | 4011000855 | Bolt | |
| 35 | 4120005410 | Gear pump | |
| 36 | 29050020551 | Shim | |
| 37 | 29050020561 | Shim | |
| 38 | 29050020571 | Shim | |
| 39 | 29050020921 | Shim | |
| 40 | 29050025561 | Shim | |
| 41 | 4014000030 | SCREW | |
| 42 | 29050018031 | Nipple | |
| 43 | 29050033171 | Plug | |
| 44 | 4011000174 | BOLT | |
| 45 | 4120000064 | SHIFT CONTROL VALVE | |
| 46 | 29050011381 | GASKET | |
| 47 | 4011000097 | BOLT | |
| 48 | 4015000029 | WASHER | |
| 49 | 29050029941 | Attachment bracket | |
| 50 | 2030900065 | OIL-FILTER ASSEMBLY | |
| 51 | 29050015471 | Washer | |
| 52 | 4011000107 | BOLT | |
| 53 | 29050023011 | Plate | |
| 54 | 4015000163 | Washer | |
| 55 | 29050023001 | Nipple | |
| 56 | 4190000007 | RING MAGNET | |
| 57 | 4015000013 | RETAINER RING | |
| 58 | 3030900232 | SHIM | |
| 59 | 4011001013 | Screw | |
| 60 | 29050020181 | Gear | |
| 61 | 4021000020 | BEARING | |
| 62 | 29050000071 | BEARING COVER | |
| 63 | 3030900098 | BOLT | |
| 64 | 29050018471 | Nipple | |
| 65 | 4030000013 | O-RING | |
| 66 | 29050025601 | Name plate | |
| 67 | 4019000012 | Rivet | |
| 68 | 29050029971 | Attachment bracket |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
