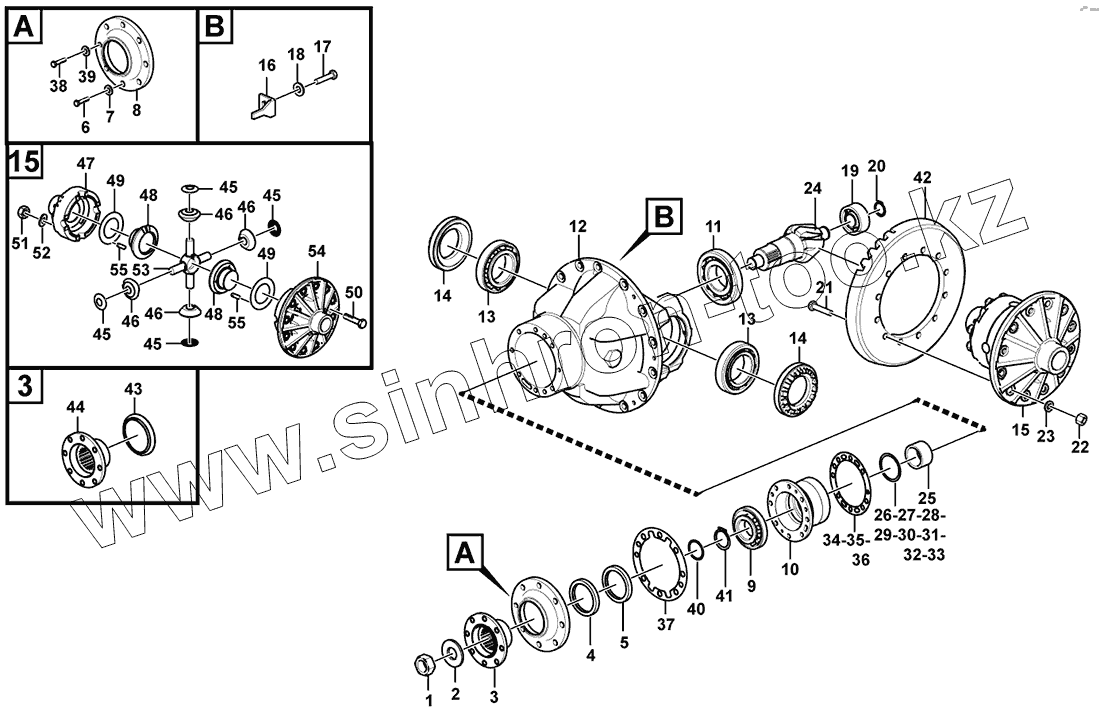

Каталог запасных частей к технике: SDLG LG956F. Final drive
1
2
3
3
4
5
6
7
8
9
10
11
12
13
13
14
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
45
45
45
46
46
46
46
47
48
48
49
49
50
51
52
53
54
55
55
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29070021481 | Lock nut | |
| 2 | 29070000221 | Washer | |
| 3 | 29070000231 | INPUT FLANGE | |
| 4 | 4030001002 | Sealing ring | |
| 5 | 4030000789 | Sealing ring | |
| 6 | 4011001318 | Screw | |
| 7 | 29090007961 | WASHER | |
| 8 | 29070000251 | SEALING COVER | |
| 9 | 4021000030 | BEARING | |
| 10 | 29070000271 | BEARING SEAT | |
| 11 | 4021000032 | BEARING | |
| 12 | 29070023342 | Centre housing | |
| 13 | 4021000036 | BEARING | |
| 14 | 29070000351 | ADJUSTING NUT | |
| 15 | 29070019611 | Differential | |
| 16 | 29070000401 | LOCKING LEAF | |
| 17 | 4011000597 | BOLT | |
| 18 | 4015000025 | Washer | |
| 19 | 4021000027 | BEARING | |
| 20 | 4015000020 | RING SNAP | |
| 21 | 29070009501 | BOLT | |
| 22 | 4013000198 | NUT | |
| 23 | 29070009511 | WASHER | |
| 24 | 29090008841 | Crown wheel | |
| 25 | 29070022561 | Sleeve | |
| 26 | 29070022481 | Shim | |
| 27 | 29070022491 | Shim | |
| 28 | 29070022501 | Shim | |
| 29 | 29070022511 | Shim | |
| 30 | 29070022521 | Shim | |
| 31 | 29070022531 | Shim | |
| 32 | 29070022541 | Shim | |
| 33 | 29070022551 | Shim | |
| 34 | 29070000151 | ADJUSTING SHIM | |
| 35 | 29070000161 | ADJUSTING SHIM | |
| 36 | 29070000171 | ADJUSTING SHIM | |
| 37 | 29070000261 | GASKET | |
| 38 | 4011001281 | Screw | |
| 39 | 29070015981 | Washer | |
| 40 | 4030000035 | O-RING GB3452.1-53x5.30G | |
| 41 | 29070000241 | RETAINER RING | |
| 42 | 29090008511 | Crown wheel | |
| 43 | 29070000641 | Cover | |
| 44 | 29070000631 | Connection flange | |
| 45 | 29070000331 | WASHER THRUST | |
| 46 | 29070000341 | GEAR PINION | |
| 47 | 29070000431 | LEFT CASE DIFFERENTIAL MECHANISM | |
| 48 | 29070013221 | Differential side gear | |
| 49 | 29070000381 | HALF AXLE GEAR SPACER | |
| 50 | 29070009491 | BOLT | |
| 51 | 4013000198 | NUT | |
| 52 | 29070009511 | WASHER | |
| 53 | 29070000411 | CROSS AXLE | |
| 54 | 29070000361 | RIGHT CASE DIFFERENTIAL MECHANISM | |
| 55 | 29070000461 | PIN |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
