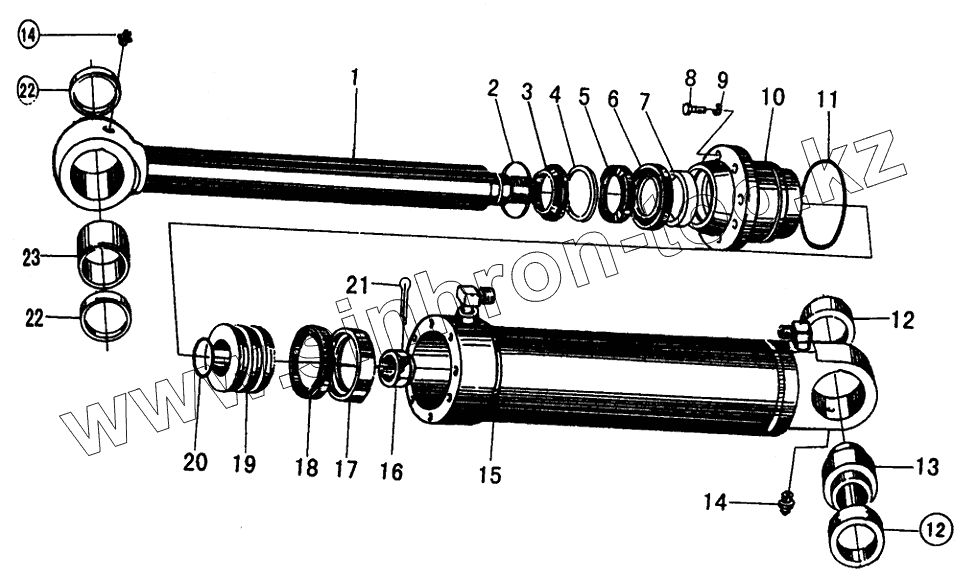

Каталог запасных частей к технике: SDLG LG956. STEERING CYLINDER
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
14
15
16
17
18
19
20
21
22
22
23
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | PISTONROD | PISTON ROD | |
| 2 | LOCKRING | LOCK RING | |
| 3 | DUSTPROOFRING | DUST PROOF RING | |
| 4 | RINGSNAP | RING SNAP | |
| 5 | U-R1NG | U-R1NG | |
| 6 | CUSHIONRING | CUSHION RING | |
| 7 | SUPPORTINGRING | SUPPORTING RING | |
| 8 | RING | RING | |
| 9 | LOCKWASHER | LOCK WASHER | |
| 10 | CYLINDERCOVER | CYLINDER COVER | |
| 11 | 0-R1NG | 0-R1NG | |
| 12 | HOLDINGBLOCK | HOLDING BLOCK | |
| 13 | JOINTBEARING | JOINT BEARING | |
| 14 | FIRRING | FIRRING | |
| 15 | CYLINDERBODY | CYLINDER BODY | |
| 16 | NUTWITHSLOT | NUT WITH SLOT | |
| 17 | SUPPORTINGRING | SUPPORTING RING | |
| 18 | FABRICATESEALING | FABRICATE SEALING | |
| 19 | PISTONROD | PISTON ROD | |
| 20 | O-RING | O-RING | |
| 21 | SPLITPIN | SPLIT PIN | |
| 22 | DUSTPROOFRING | DUST PROOF RING | |
| 23 | BUSHING | BUSHING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
