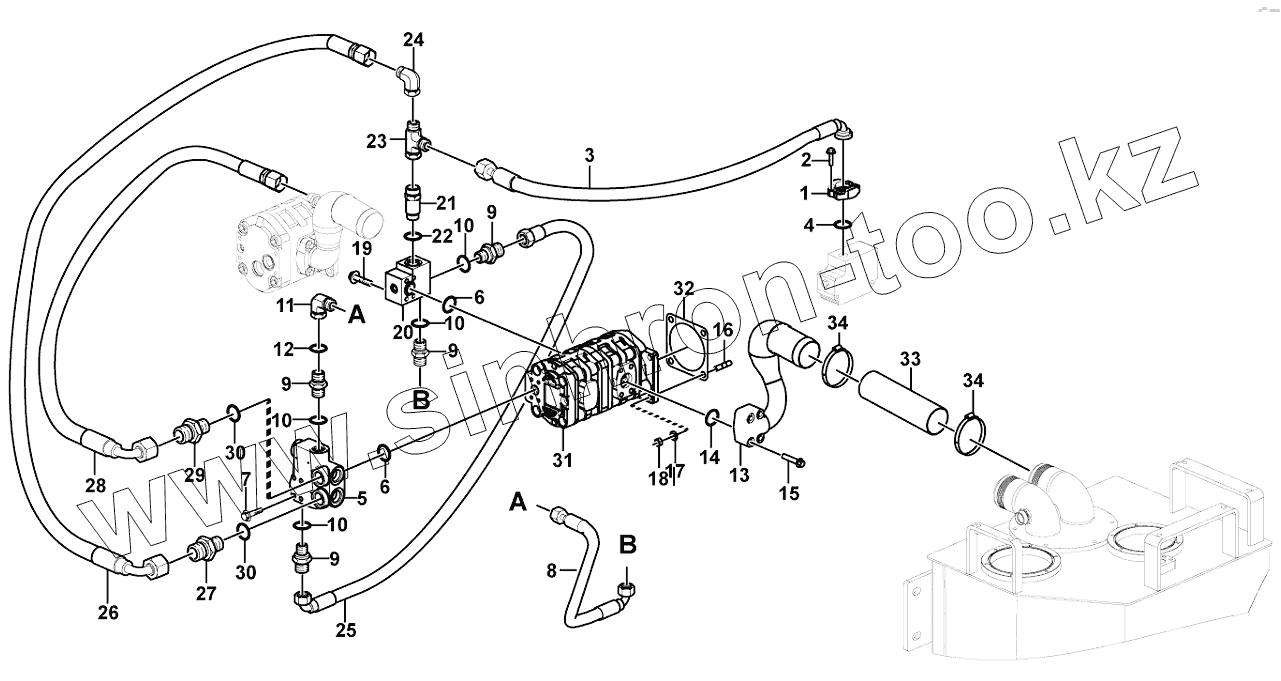

Каталог запасных частей к технике: SDLG LG955N. Steering pump assembiy
1
2
3
4
5
6
6
7
8
9
9
9
9
10
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4041000027 | FLANGE | |
| 2 | 4011000475 | BOLT | |
| 3 | 29190010231 | Hose assembly | |
| 4 | 4030000029 | O-RING | |
| 5 | 29190009431 | Valve | |
| 6 | 4030000026 | O-RING | |
| 7 | 4011000314 | BOLT GB16674-M10x80EpZn-8.8 | |
| 8 | 4041001425 | Hose assembly | |
| 9 | 4041000133 | Nipple | |
| 10 | 4041000767 | O-RING | |
| 11 | 4041001047 | CONNECTOR | |
| 12 | 4030000530 | O-RING | |
| 13 | 29190001022 | INTAKE TUBE | |
| 14 | 4030000235 | O-RING | |
| 15 | 4011000337 | BOLT | |
| 16 | 4012000003 | DOUBLE-SCREW BOLT | |
| 17 | 4015000168 | WASHER | |
| 18 | 4013000011 | NUT | |
| 19 | 4011000282 | BOLT GB16674-M10x75EpZn-8.8 | |
| 20 | 29190009591 | Valve | |
| 21 | 4041000676 | CONNECTOR LGB120-03630 | |
| 22 | 4041000685 | O-RING LGB168-12631 | |
| 23 | 29190010221 | Three-way nipple | |
| 24 | 4041001006 | CONNECTOR | |
| 25 | 4041001379 | Hose assembly | |
| 26 | 4041000536 | Hose assembly | |
| 27 | 29190009911 | Nipple | |
| 28 | 4041000803 | Hose assembly | |
| 29 | 29190009991 | Nipple | |
| 30 | 4041000765 | O-RING | |
| 31 | 4120003067 | Gear pump | |
| 32 | 29110000042 | Gasket | |
| 33 | 4030000560 | INTAKE TUBE HG4-763-64x270 | |
| 34 | 4017000013 | CLAMP |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
