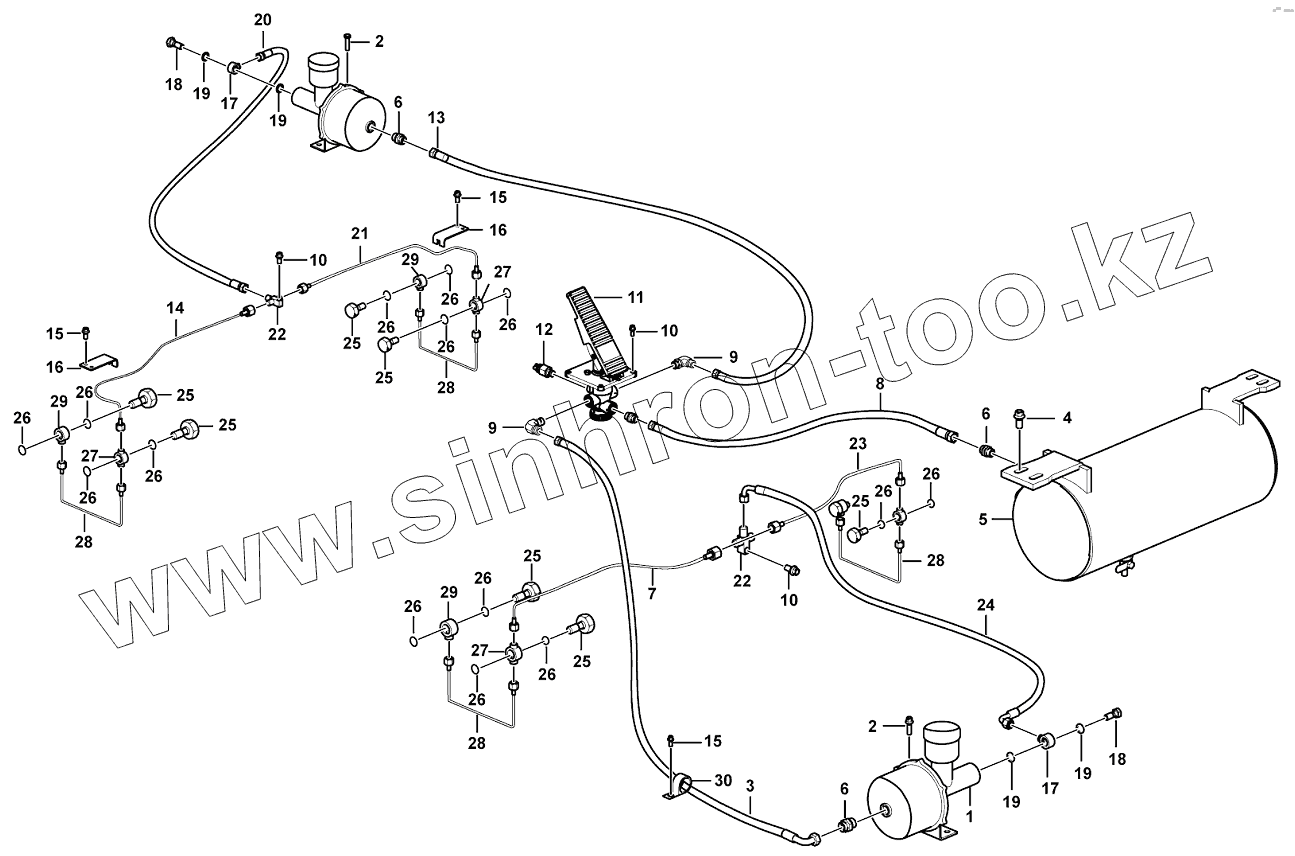

Каталог запасных частей к технике: SDLG LG955N. Service brake assembly
1
2
2
3
4
5
6
6
6
7
8
9
9
10
10
10
11
12
13
14
15
15
15
16
16
17
17
18
18
19
19
19
19
20
21
22
22
23
24
25
25
25
25
25
25
25
26
26
26
26
26
26
26
26
26
26
26
26
26
26
27
27
27
28
28
28
28
29
29
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120006350 | Pneumatic cylinder | |
| 2 | 4011000447 | BOLT | |
| 3 | 4041001030 | HOSE LGB145-205320 | |
| 4 | 4011000137 | BOLT | |
| 5 | 29220012961 | Air tank | |
| 6 | 29220001191 | CONNECTOR | |
| 7 | 29220001301 | TUBE OF REAR AXLE | |
| 8 | 4041001031 | TUBE LGB145-205263 | |
| 9 | 29220001201 | JOINT | |
| 10 | 4011000455 | BOLT | |
| 11 | 4120003758 | Brake valve | |
| 12 | 4120003757 | Pressure switch | |
| 13 | 4041001789 | Hose assembly | |
| 14 | 29220001281 | TUBE OF FRONT AXLE | |
| 15 | 4011000461 | BOLT | |
| 16 | 29220001121 | GUARD PLATE | |
| 17 | 29220001241 | CONNECTOR | |
| 18 | 29220001231 | CONNECTOR | |
| 19 | 4030000551 | O-ring | |
| 20 | 4041001027 | HOSE LGB153-202046 | |
| 21 | 29220001291 | TUBE OF FRONT AXLE | |
| 22 | 29220000131 | CONNECTOR | |
| 23 | 29220001311 | TUBE OF REAR AXLE | |
| 24 | 4041001195 | PIPE LGB154-202200 | |
| 25 | 29220001251 | CONNECTOR | |
| 26 | 4030000552 | O-Ring | |
| 27 | 29220001271 | TEE OF THE OIL LINE | |
| 28 | 29220001321 | TUBE | |
| 29 | 29220001261 | CONNECTOR OF BRAKE | |
| 30 | 29220009911 | Clamp |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
