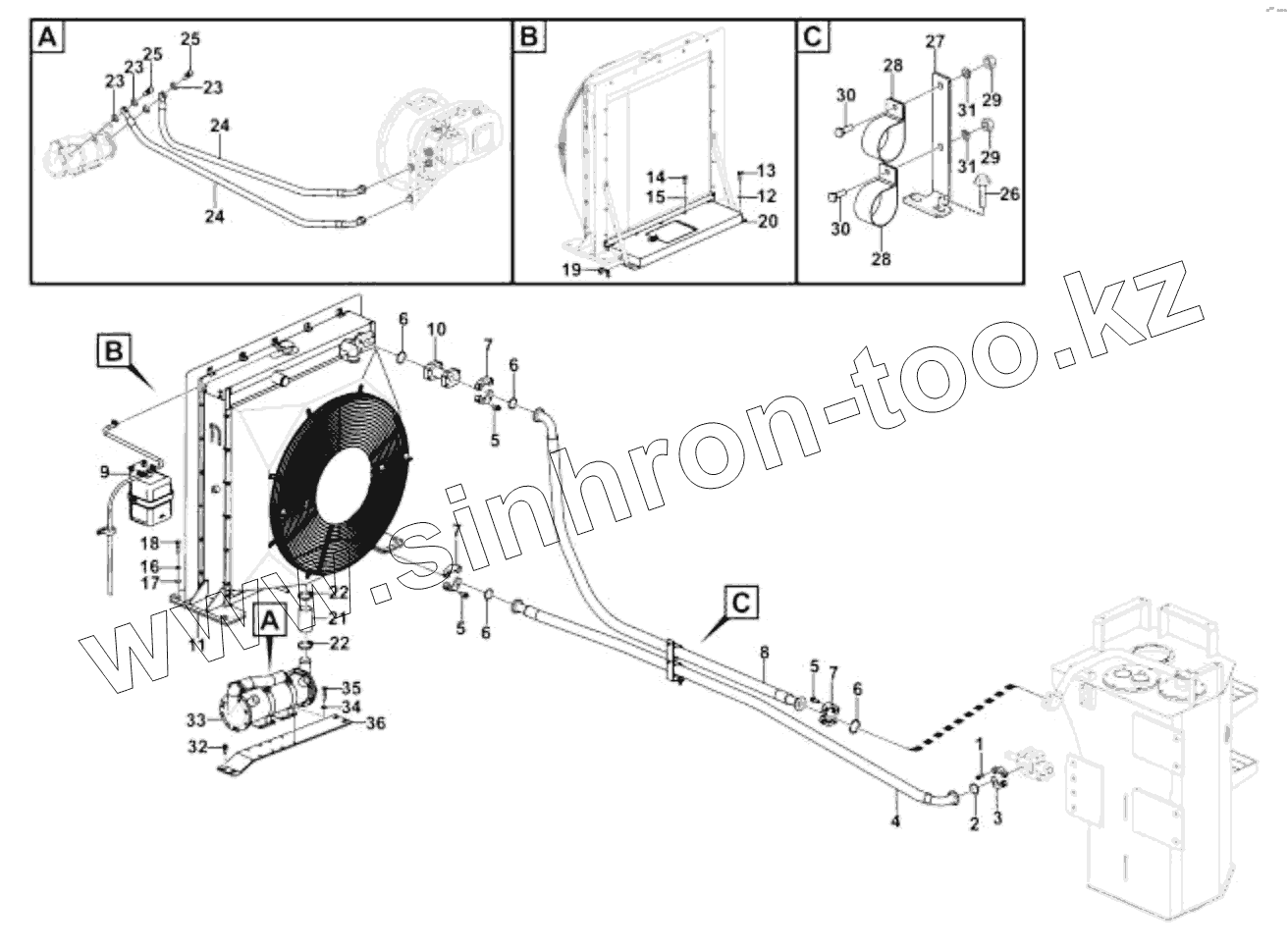

Каталог запасных частей к технике: SDLG LG953N. Cooling system
1
2
3
4
5
5
5
6
6
6
6
7
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
23
23
24
24
25
25
26
27
28
28
29
29
30
30
31
31
32
33
34
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4011000475 | BOLT | |
| 2 | 4030000029 | O-RING | |
| 3 | 4041000027 | FLANGE | |
| 4 | 29030023141 | Hose assembly | |
| 5 | 4011000477 | BOLT | |
| 6 | 4030000130 | O-RING | |
| 7 | 4041000011 | FLANGE | |
| 8 | 29030024451 | Hose assembly | |
| 9 | 29030021751 | Expansion tank assembly | |
| 10 | 29030007941 | TRANSITION | |
| 11 | 4110002233 | Cooling unit | |
| 12 | 29030010391 | WASHER | |
| 13 | 4011000107 | BOLT | |
| 14 | 4011000105 | BOLT | |
| 15 | 4015000256 | WASHER | |
| 16 | 4015000026 | WASHER | |
| 17 | 29330023151 | Washer | |
| 18 | 4011000092 | BLOT GB5783-M12x50EpZn-8.8 | |
| 19 | 29030019421 | Rubber bushing | |
| 20 | 29030023321 | Plate | |
| 21 | 4120002033 | Hose assembly | |
| 22 | 4017000007 | CLAMP | |
| 23 | 4015000203 | WASHER | |
| 24 | 29030001031 | HOSE | |
| 25 | 29030001021 | CONNECTOR | |
| 26 | 4011000461 | BOLT | |
| 27 | 29030023741 | Bracket | |
| 28 | 29030010811 | Clamp | |
| 29 | 4013000033 | NUT | |
| 30 | 4011000458 | BOLT | |
| 31 | 4015000072 | WASHER | |
| 32 | 4011000560 | BOLT | |
| 33 | 4120000098 | WATER-COOLED OIL RADIATOR | |
| 34 | 4015000025 | Washer | |
| 35 | 4011000082 | BOLT | |
| 36 | 29030023281 | Plate |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
