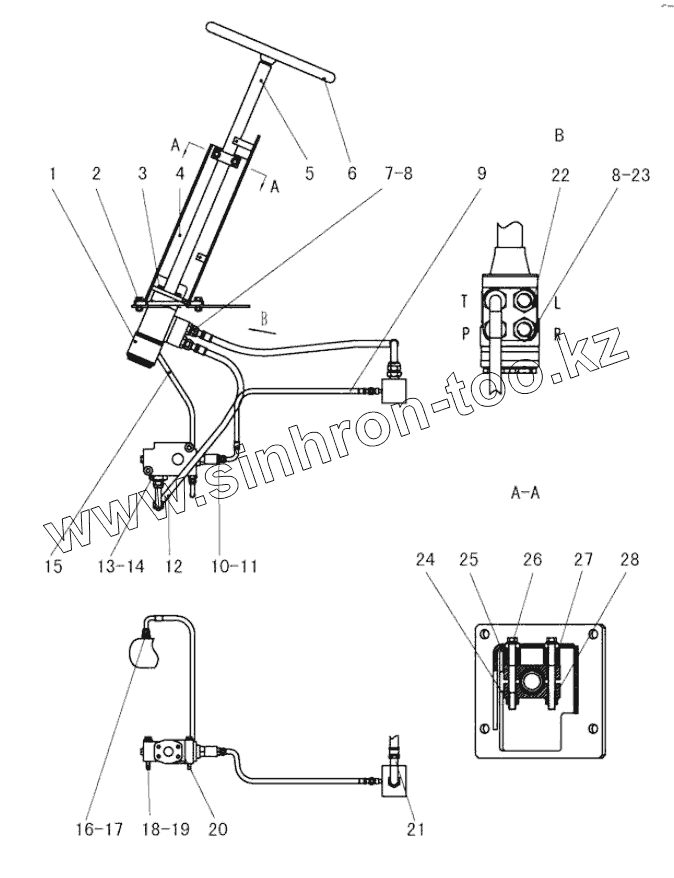

Каталог запасных частей к технике: SDLG LG953. STEERING UNIT ASSEMBLY
/45.gif)
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120001805 | STEERING GEAR BZZ6-800 | |
| 2 | 4011000479 | BOLT | |
| 3 | 4011000473 | BOLT | |
| 4 | 29310011191 | MOUNTING FRAME | |
| 5 | 4120001855 | STEERIGN COLUMN LG20-ZXZ-09 | |
| 6 | 4120000018 | STEERINGWHEEL | |
| 7 | 4041000564 | JOINT | |
| 8 | 4041000783 | O-RING | |
| 9 | 4041000174 | TUBE | |
| 10 | 4041000084 | CONNECTER | |
| 11 | 4030000285 | O-RING | |
| 12 | 4041001044 | TUBE LGB128010100 | |
| 13 | 4041000088 | CONNECTER | |
| 14 | 4030000276 | O-RING | |
| 15 | 29200001052 | FEEDBACK OIL PIPE OF PRIORITY VALVE | |
| 16 | 4041000131 | JOINT | |
| 17 | 4041000784 | O-RING | |
| 18 | 4011000053 | BOLT | |
| 19 | 4015000162 | Washer | |
| 20 | 4120001807 | PRIORITY YXL-250-16 | |
| 21 | 4041000519 | TUBE | |
| 22 | 29200007901 | CONNECTER | |
| 23 | 4041000132 | CONNECTOR LGB120-02220 | |
| 24 | 4013000007 | NUT | |
| 25 | 4015000162 | Washer | |
| 26 | 4011000528 | BOLT GB16674-M10x100EpZn-8.8 | |
| 27 | 29310011301 | ADJUSTING SEAT | |
| 28 | 29310011251 | MOUNTING PLATE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
