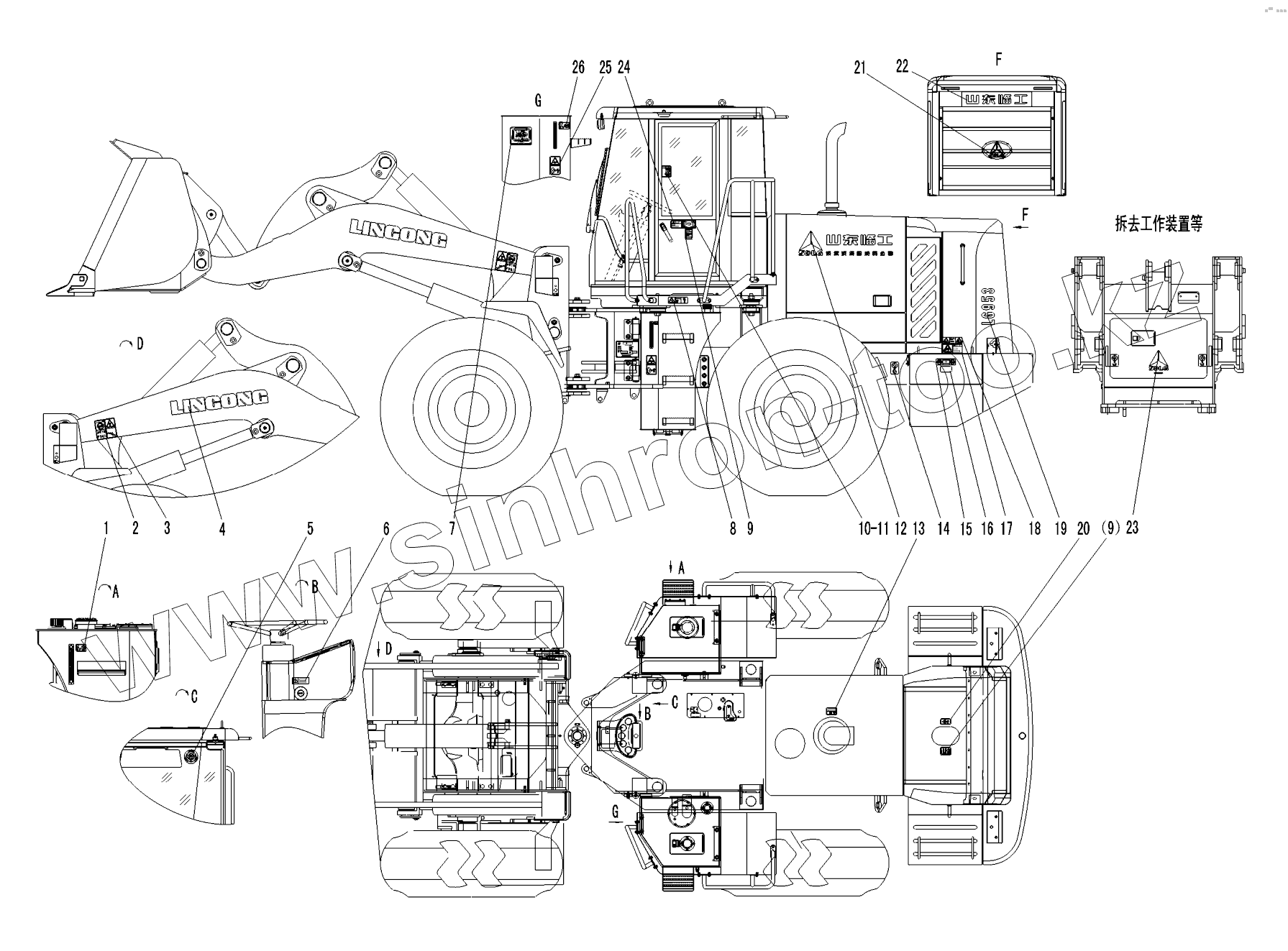

Каталог запасных частей к технике: SDLG LG953. SAFETY LOGO
/65.gif)
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29360009201 | FUEL TANK MARKING | |
| 2 | 29360010171 | DANGEROUS SIGNS BOOM | |
| 3 | 29360008741 | ARM POSITION TO ENHANCE SAFETY SIGNS | |
| 4 | 29360010911 | MARK-ARM II | |
| 5 | 29360010061 | CHINA FAMOUS BRAND LOGO | |
| 6 | 4044000016 | MARK-STARTING SWITCH-LGB401-D04 | |
| 7 | 29360009521 | LUBRICATION DIAGRAM | |
| 8 | 29360011461 | NOTE BENCH MARK | |
| 9 | 4044000021 | MARK-ANTIFREEZE-LGB401-F04 | |
| 10 | 29360010751 | OPERATION OF ATTENTION TO SIGNS | |
| 11 | 29360010761 | MOVING ATTENTION TO SIGNS | |
| 12 | 29360010941 | LINGONG GRAPHIC TEXT LOGO | |
| 13 | 4044000008 | MARK | |
| 14 | 4044000018 | MARK-SLINGING | |
| 15 | 29360011471 | SIGNS BAN ON OPEN FIRES | |
| 16 | 29360008541 | REFLECTIVE SIGNS | |
| 17 | 29360011481 | WARNING SIGNS ROTARY MACHINES | |
| 18 | 29360011491 | ACCSEE TO THE MACHINE MARKS | |
| 19 | 29360010981 | Lg953 model | |
| 20 | 26360000121 | SAFETY LOGO | |
| 21 | 29360010591 | SIGNS AFTER | |
| 22 | 29360010211 | SDLG FONTS | |
| 23 | 4044000017 | GRAPHIC SIGNS LINGONG LGB401-E02-265 | |
| 24 | 4044000010 | MARK-LGB401 -C0 1 | |
| 25 | 29360008781 | GRAPHIC SIGNS ARTICULATED STEERING | |
| 26 | 29360009171 | HYDRAULIC TANK LOGO | |
| 27 | 29360010051 | Sign and logo | |
| 28 | 29360010050011 | Safety logo package |
