Каталог запасных частей к технике: SDLG LG953. PLANET ROW (330101)
/15.gif)
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
32
32
33
33
33
33
34
34
35
35
36
37
38

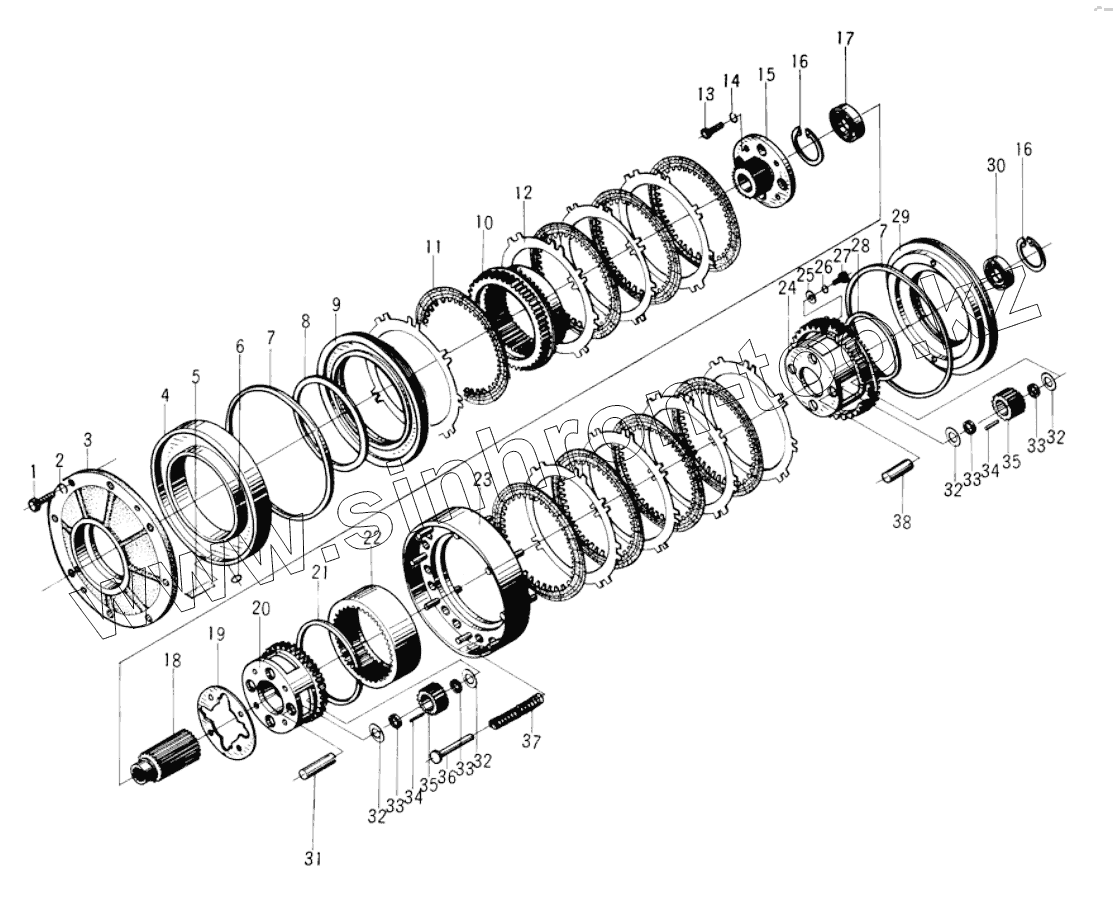

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4011000772 | Bolt | |
| 2 | 4015000027 | WASHER | |
| 3 | 4110000184070 | Cover | |
| 4 | 4110000184071 | Cylinder body | |
| 5 | 4110000184072 | Fix plate | |
| 6 | 4030000011 | O-RING | |
| 7 | 4110000184073 | Packing ring | |
| 8 | 4110000184074 | Internai seal ring | |
| 9 | 4110000184075 | Piston | |
| 10 | 4110000184076 | Internal gear-ring | |
| 11 | 4110000184077 | Reverse first speed drive disk ass'y | |
| 12 | 4110000184078 | Reverse first speed driven disk | |
| 13 | 4011000777 | Screw | |
| 14 | 4015000025 | Washer | |
| 15 | 4110000184079 | Connecting disk | |
| 16 | 4015000024 | RETAINNER RING | |
| 17 | 4021000180 | Bearing | |
| 18 | 4110000184080 | Gear-sun | |
| 19 | 4110000184081 | Stop plate | |
| 20 | 4110000184082 | Planet carrier | |
| 21 | 4110000184083 | Retainer ring | |
| 22 | 4110000184084 | Reverse range gear-ring | |
| 23 | 4110000184085 | Frame assembly | |
| 24 | 4110000184086 | Carrier of reverse ass’y | |
| 25 | 4110000184087 | Thrust washer | |
| 26 | 4015000036 | WASHER | |
| 27 | 4011000775 | Bolt | |
| 28 | 4110000184088 | Internai seal ring | |
| 29 | 4110000184089 | Pistion | |
| 30 | 4021000011 | BALL BEARIN | |
| 31 | 4110000184090 | First speed planet spindle | |
| 32 | 4110000184091 | Spacer | |
| 33 | 4110000184092 | Isolated bushing | |
| 34 | 4090000001 | ROLLER | |
| 35 | 4110000184093 | Planet gear | |
| 36 | 4110000184094 | Spring pin | |
| 37 | 4110000184095 | Spring | |
| 38 | 4110000184096 | Reverse planet spindle |
