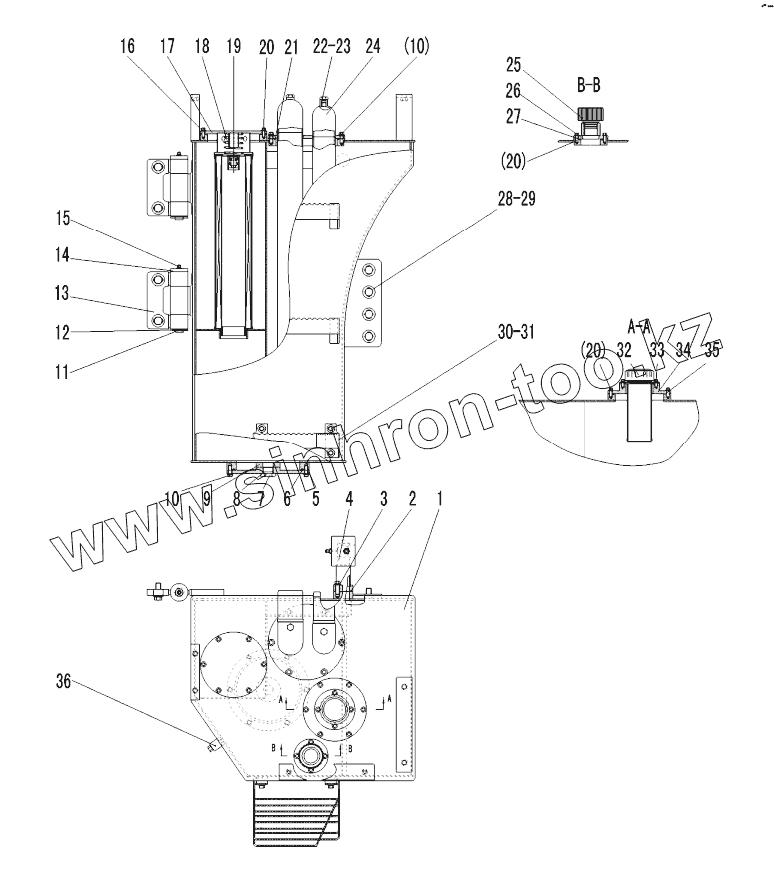

Каталог запасных частей к технике: SDLG LG953. HYDRAULIC TANK ASSEMBLY
/35.gif)
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29100011251 | Hydraulic tank body | |
| 2 | 4030000130 | O-RING | |
| 3 | 4011000479 | BOLT | |
| 4 | 29100011341 | Tube | |
| 5 | 29100001041 | PLANGED CAP | |
| 6 | 4030000234 | O-RING | |
| 7 | 4041000192 | PLUG | |
| 8 | 4041000765 | O-RING | |
| 9 | 4190000008 | RING MAGNET | |
| 10 | 4011000082 | BOLT | |
| 11 | 4015000130 | RING SNAP | |
| 12 | 29020001071 | WASHER | |
| 13 | 29020001051 | JOIN LEAF | |
| 14 | 29020001061 | PIN | |
| 15 | 4030000065 | GREASE NIPPLE | |
| 16 | 4030000232 | O-RING | |
| 17 | 29100000041 | FLANGE CAP | |
| 18 | 29100000051 | SPRING | |
| 19 | 29100001051 | STRAIN CORE | |
| 20 | 4011000458 | BOLT | |
| 21 | 4030000303 | O-RING | |
| 22 | 4041000774 | PLUG | |
| 23 | 4041000767 | O-RING | |
| 24 | 29100001061 | FLANGE | |
| 25 | 4120001088 | GAS-EXCHANGE FILTER | |
| 26 | 29100007691 | PLANGED CAP | |
| 27 | 4030000233 | O-RING | |
| 28 | 4011000096 | BOLT GB5783-M16x40EpZn-8.8 | |
| 29 | 29100011031 | WASHER | |
| 30 | 4011000137 | BOLT | |
| 31 | 29100011361 | Footplate | |
| 32 | 4120000452 | OIL-SUPPLYING FILTER | |
| 33 | 4011000461 | BOLT | |
| 34 | 29100008361 | Flange | |
| 35 | 4030000452 | O-ring | |
| 36 | 4120000093 | GAUGE LEVEL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
