  5. LG9530F1-4 IMPLEMENT HYDRAULIC SYSTEM

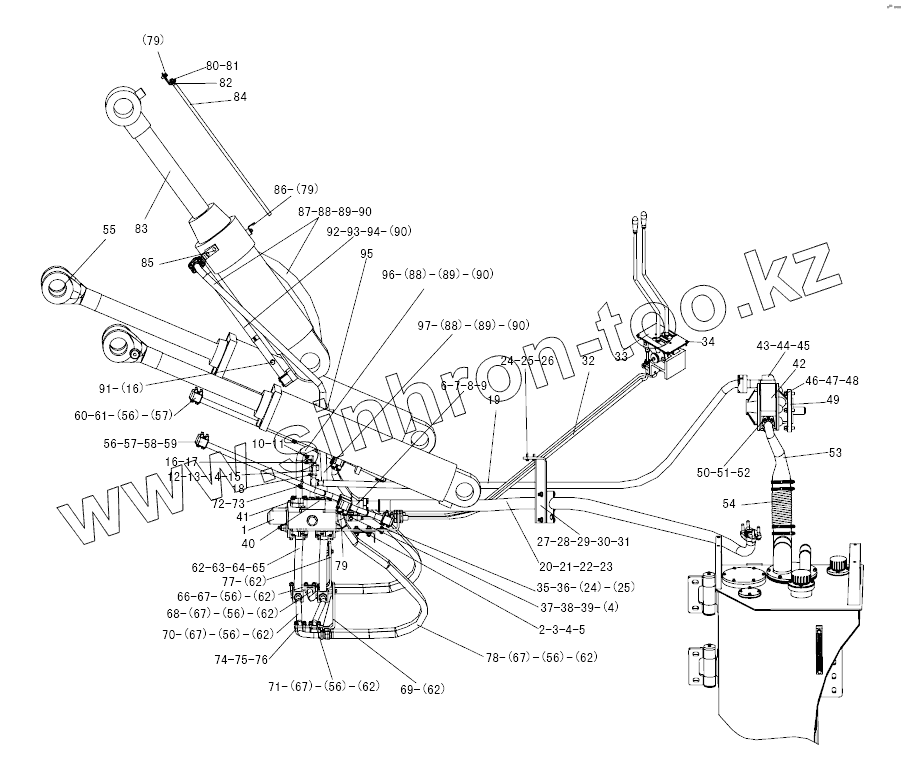

Каталог запасных частей к технике: SDLG LG953. LG9530F1-4 IMPLEMENT HYDRAULIC SYSTEM

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
6
7
8
9
11
12
16
16
17
18
19
20
21
22
23
24
24
25
25
26
27
29
30
31
32
33
34
35
36
37
38
39
40
41
42
44
45
46
47
48
49
50
51
52
53
54
55
56
56
56
56
56
56
56
57
57
58
59
60
61
65
66
67
67
67
67
67
68
69
70
71
72
73
74
75
77
78
79
79
79
82
83
84
85
86
87
88
88
88
92
94
95
96
97
Позиция на иллюстрации Заводской номер детали Название детали
1 4120000703 MULTIPLE UNIT VALVE
2 29120009141 MOUNTED PLATE OF MULTIPLE UNIT VALVE
3 4011000477 BOLT
6 4011000055 BOLT
7 4011000058 BOLT
8 4011000476 BOLT
9 29120009161 RENTURN TUBE OF MULTIPLE UNIT VALVE
11 29120013911 WELDING SHELF
12 29120013731 INPUT TUBE OF MULTIPLE UNIT VALVE
16 4041000156 PLUG LGB13501421
17 4030000238 O-RING
18 4011000605 U-BOLT
19 29120013901 INPUT PIPE OF THECONTROL VALE
20 4041000011 FLANGE
21 4041000553 PIPE
22 4030000130 O-RING
23 4011000479 BOLT
24 4011000455 BOLT
25 4015000072 WASHER
26 29120009121 SHELF
27 4011000053 BOLT
29 4015000162 Washer
30 29120009091 PRESS PLATE
31 29120009101 RUBBER PLATE
32 29120001401 CONTROL AXIS
33 4120001019 OPERATING GEAR
34 4011000475 BOLT
35 29120009111 COVER SHEET
36 4013000033 NUT
37 29120000071 PIN
38 4016000035 SPLIT PIN
39 29120000081 YOKE CONNECTOR
40 4030000031 O-RING
41 4015000234 WASHER
42 4120000684 GEAR PUMP
44 29110001021 OUT-OIL TUBE
45 4030000029 O-RING
46 4012000003 DOUBLE-SCREW BOLT
47 4013000011 NUT
48 4015000168 WASHER
49 29110000041 SEALING WASHER
50 4030000133 O-RING
51 4041000009 FLANGE
52 4011000320 BOLT
53 29110001061 INTAKE OIL TUBE OF PUMP
54 29110001111 PIPE
55 4120000558 LIFTING CYLINDER
56 4030000026 O-RING
57 4011000473 BOLT
58 29130001021 SMALL CHAMBER TUBE OF LEFT LIFT CYLINDER
59 29130001171 BIG CHAMBER TUBE OF LEFT LIFT CYLINDER
60 29130001031 SMALL CHAMBER TUBE OF RIGHT LIFT CYLINDER
61 29130001181 BIG CHAMBER TUBE OF RIGHT LIFT CYLINDER
65 29130008152 TUBE
66 29130008181 BIG CHAMBER RIGHE TUBE OF LIFTING
67 4041000043 FLANGE
68 29130008201 SMALL CHAMBER RIGHE TUBE OF LIFTING
69 29130009011 LEFT SHELF
70 29130008221 BIG CHAMBER LEFT TUBE OF LIFTING
71 29130008241 SMALL CHAMBER LEFT TUBE OF LIFTING
72 29130000111 CLAMP
73 4011000458 BOLT
74 4011000556 U-BOLT
75 4013000007 NUT
77 29130008141 RIGHT SHELF
78 29130001211 OIL PIPE OF LIFTING CYLINDER
79 4011000447 BOLT
82 29140000021 CLAMPING PLATE
83 4120000559 TILT CYLINDER
84 29140000031 INDICATING ROD OF BUCKET
85 4011000488 BOLT
86 29140000041 CONDUIT OF INDICATING ROD
87 4041000177 PIPE
88 4041000056 FLANGE
92 4011000309 BOLT
94 29140001021 BIG CHAMBER TUBE OF TILT CYLINDER
95 29140001121 CLAMPLE
96 29140001091 BIG CHAMBER TUBE OF TILT CYLINDER
97 29140001111 SMALL CHAMBER TUBE OF TILT CYLINDER
