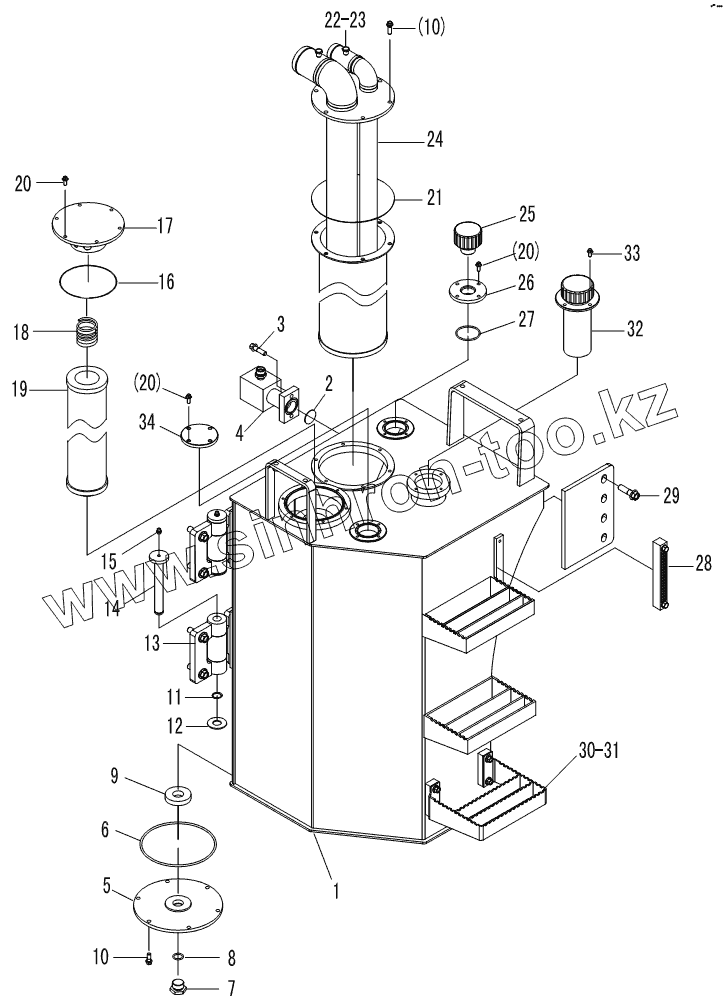

Каталог запасных частей к технике: SDLG LG953. HYDRAULIC TANK ASSEMBLY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2910000102 | HYDRAULIC TANK | |
| 2 | 4030000130 | O-RING | |
| 3 | 4011000479 | BOLT | |
| 4 | 2910000136 | STEEL TUBE | |
| 5 | 2910000104 | PLANGED CAP | |
| 6 | 4030000234 | O-RING | |
| 7 | 4041000192 | PLUG | |
| 8 | 4030000265 | O-RING | |
| 9 | 4190000008 | RING MAGNET | |
| 10 | 4011000082 | BOLT | |
| 11 | 4015000130 | RING SNAP | |
| 12 | 2902000107 | WASHER | |
| 13 | 2902000105 | HINGE | |
| 14 | 2902000106 | PIN | |
| 15 | 4030000065 | GREASE NIPPLE | |
| 16 | 4030000232 | O-RING | |
| 17 | 2910000004 | FLANGE CAP | |
| 18 | 2910000005 | SPRING | |
| 19 | 2910000105 | STRAIN CORE | |
| 20 | 4011000458 | BOLT | |
| 21 | 4030000303 | O-RING | |
| 22 | THREADPLUG | THREAD PLUG | |
| 23 | 4030000238 | O-RING | |
| 24 | 2910000106 | FLANGE | |
| 25 | 4120001088 | GAS-EXCHANGE FILTER | |
| 26 | 2910000769 | PLANGED CAP | |
| 27 | 4030000233 | O-RING | |
| 28 | 4120000093 | GAUGE LEVEL | |
| 29 | 4011000148 | BOLT | |
| 30 | 4011000137 | BOLT | |
| 31 | 2902000130 | UNDERSIDE FOOTPLATE | |
| 32 | 4120000452 | OIL-SUPPLYING FILTER | |
| 33 | 4011000461 | BOLT | |
| 34 | 2910000109 | PLANGE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
