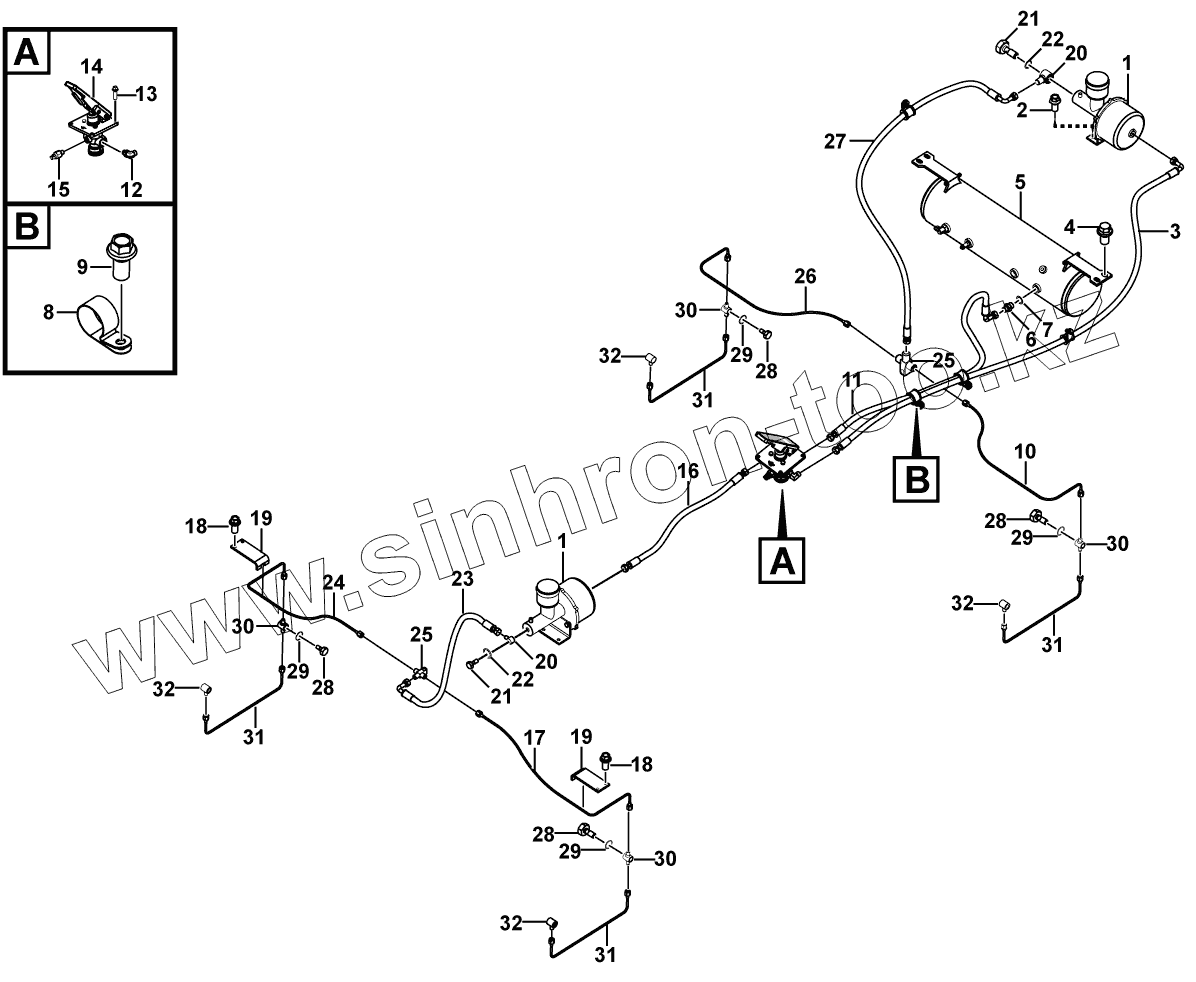

Каталог запасных частей к технике: SDLG LG952N. Travel brake
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
19
20
20
21
21
22
22
23
24
25
25
26
27
28
28
28
28
29
29
29
29
30
30
30
30
31
31
31
31
32
32
32
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120006350 | Pneumatic cylinder | |
| 2 | 4011000447 | BOLT | |
| 3 | 4041002494 | Hose assembly | |
| 4 | 4011000137 | BOLT | |
| 5 | 29220020851 | Air tank | |
| 6 | 29220017601 | Nipple | |
| 7 | 29220000811 | WASHER | |
| 8 | 29220009911 | Clamp | |
| 9 | 4011000807 | Bolt | |
| 10 | 29220001301 | TUBE OF REAR AXLE | |
| 11 | 4041002204 | Hose | |
| 12 | 29220016531 | Nipple | |
| 13 | 4011000455 | BOLT | |
| 14 | 4120001795 | BRAKE CONTROL VALVE LY60F | |
| 15 | 4120003757 | Pressure switch | |
| 16 | 4041002282 | Hose assembly | |
| 17 | 29220001281 | TUBE OF FRONT AXLE | |
| 18 | 4011000461 | BOLT | |
| 19 | 29220001121 | GUARD PLATE | |
| 20 | 29220001241 | CONNECTOR | |
| 21 | 29220001231 | CONNECTOR | |
| 22 | 4030000551 | O-ring | |
| 23 | 4041001027 | HOSE LGB153-202046 | |
| 24 | 29220001291 | TUBE OF FRONT AXLE | |
| 25 | 29220000131 | CONNECTOR | |
| 26 | 29220001311 | TUBE OF REAR AXLE | |
| 27 | 4041001195 | PIPE LGB154-202200 | |
| 28 | 29220001251 | CONNECTOR | |
| 29 | 4030000552 | O-Ring | |
| 30 | 29220001271 | TEE OF THE OIL LINE | |
| 31 | 29220001321 | TUBE | |
| 32 | 29220001261 | CONNECTOR OF BRAKE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
