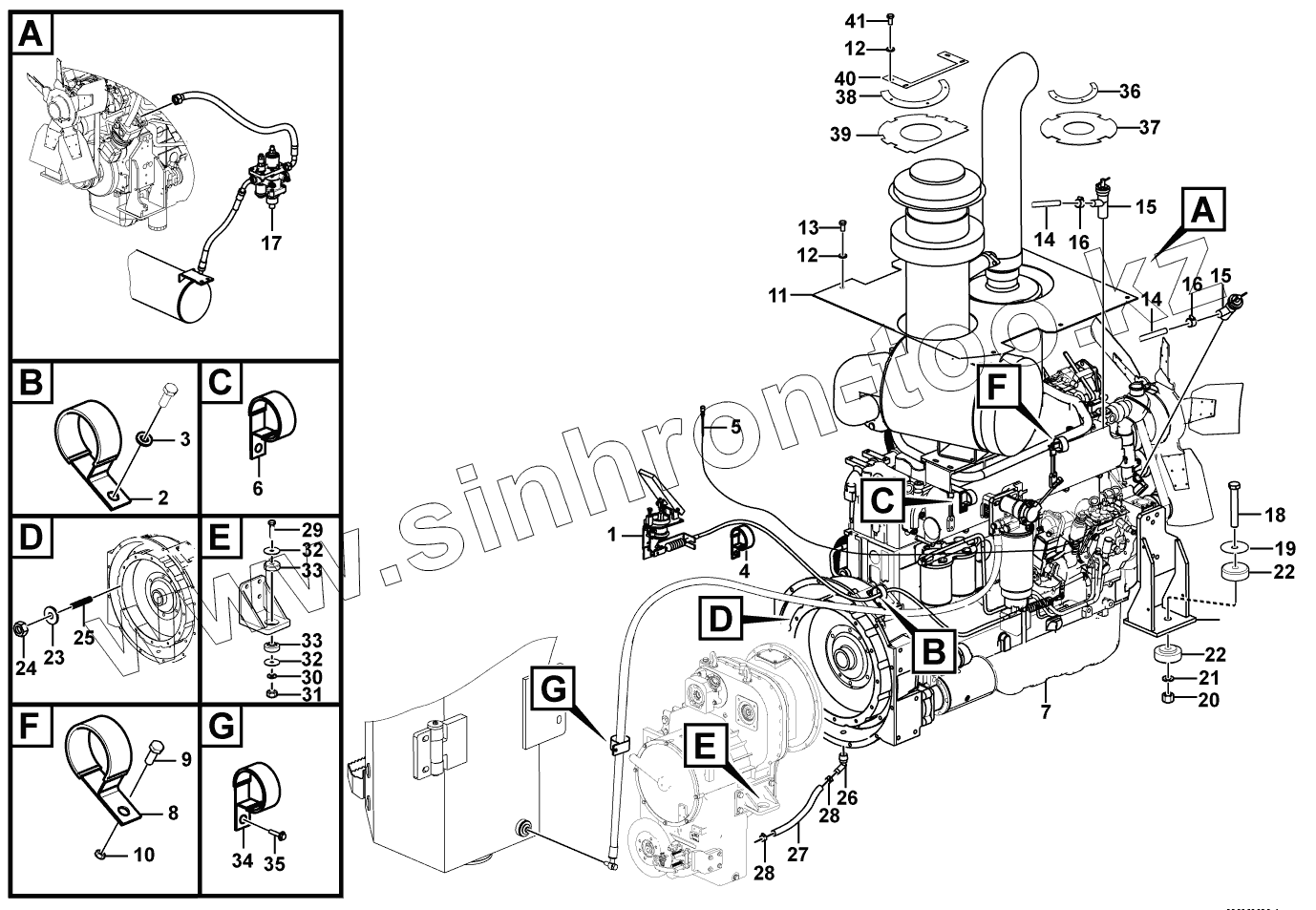

Каталог запасных частей к технике: SDLG LG952N. Engine system
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
14
15
15
16
16
17
18
19
20
21
22
22
23
24
25
26
27
28
28
29
30
31
32
32
33
33
34
35
36
37
38
39
40
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29010013691 | GOVERNOR CONTROL SYSTEM | |
| 2 | 26370001212 | Clamp | |
| 3 | 4015000072 | WASHER | |
| 4 | 29220009911 | Clamp | |
| 5 | 29010020361 | Control cable | |
| 6 | 29030000041 | CLAMP | |
| 7 | 4110002935 | Engine | |
| 8 | 29030010811 | Clamp | |
| 9 | 4011000481 | BOLT | |
| 10 | 4013000033 | NUT | |
| 11 | 29010059171 | Plate | |
| 12 | 4015000197 | WASHER | |
| 13 | 4011000081 | BOLT | |
| 14 | 4090000191 | Hose | |
| 15 | 4120000067 | VALVE-HEATER | |
| 16 | 4017000024 | CLAMP | |
| 17 | 29220021311 | Water separator | |
| 18 | 4011000918 | Bolt | |
| 19 | 29010024431 | Washer | |
| 20 | 4013000160 | NUT GB889.2-M20x1.5 EpZn-8 | |
| 21 | 4015000176 | WASHER | |
| 22 | 4110001528 | Absorber | |
| 23 | 4015000025 | Washer | |
| 24 | 4013000007 | NUT | |
| 25 | 29010016661 | DOUBLE-SCREW BOLT | |
| 26 | 29010000121 | CONNECTOR | |
| 27 | 4030000495 | HOSE JB8406-B16x265 | |
| 28 | 4017000011 | Clamp | |
| 29 | 4011000378 | Bolt | |
| 30 | 4015000167 | WASHER GB97.1-24EpZn-300HV | |
| 31 | 4013000157 | NUT | |
| 32 | 29050019331 | Washer | |
| 33 | 4110001527 | Absorber | |
| 34 | 4041002412 | Clamp | |
| 35 | 4011000461 | BOLT | |
| 36 | 29010049481 | Plate | |
| 37 | 29010049491 | Gasket | |
| 38 | 29010056011 | Plate | |
| 39 | 29010049501 | Gasket | |
| 40 | 29010059481 | Plate | |
| 41 | 4011001164 | Screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
