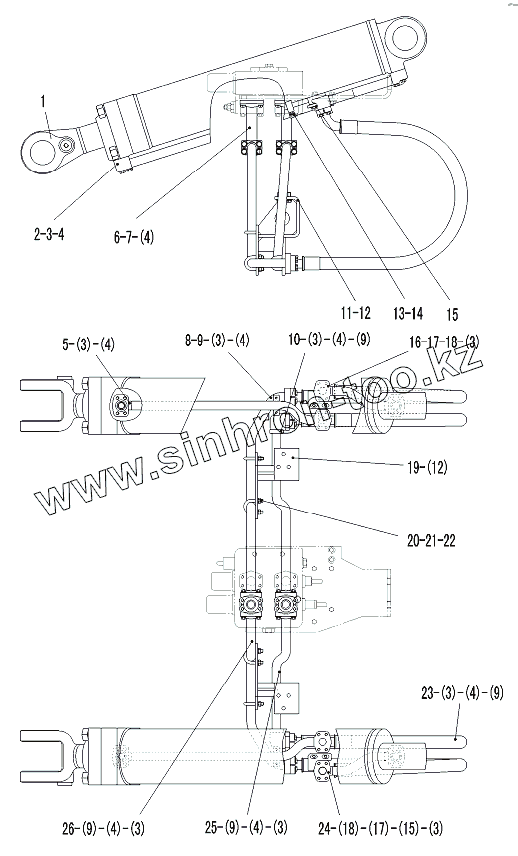

Каталог запасных частей к технике: SDLG LG952H. LIFT ARM CYLINDER ASSEMBLY
1
2
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
5
6
7
8
9
9
9
9
9
10
11
12
12
13
14
15
15
16
17
17
18
18
19
20
21
22
23
24
25
26
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120002418 | LIFTING CYLINDER HSGF-160x80x812-1310 | |
| 2 | 29130001021 | SMALL CHAMBER TUBE OF LEFT LIFT CYLINDER | |
| 3 | 4030000026 | O-RING | |
| 4 | 4011000475 | BOLT | |
| 5 | 29130001031 | SMALL CHAMBER TUBE OF RIGHT LIFT CYLINDER | |
| 6 | 29130012421 | STEEL TUBE | |
| 7 | 4030000029 | O-RING | |
| 8 | 29130008181 | BIG CHAMBER RIGHE TUBE OF LIFTING | |
| 9 | 4041000043 | FLANGE | |
| 10 | 29130008201 | SMALL CHAMBER RIGHE TUBE OF LIFTING | |
| 11 | 29130011991 | LEFT BRACKET | |
| 12 | 4011000474 | BOLT | |
| 13 | 29130000111 | CLAMP | |
| 14 | 4011000458 | BOLT | |
| 15 | 4011000447 | BOLT | |
| 16 | 29130001181 | BIG CHAMBER TUBE OF RIGHT LIFT CYLINDER | |
| 17 | 4011000473 | BOLT | |
| 18 | 4011000309 | BOLT | |
| 19 | 29130012011 | BRACKET | |
| 20 | 4041001017 | U-BOLT LGB159-13040 | |
| 21 | 4013000007 | NUT | |
| 22 | 4015000162 | Washer | |
| 23 | 29130012411 | LIFTING CYLINDER HOSE | |
| 24 | 29130001171 | BIG CHAMBER TUBE OF LEFT LIFT CYLINDER | |
| 25 | 29130008241 | SMALL CHAMBER LEFT TUBE OF LIFTING | |
| 26 | 29130008221 | BIG CHAMBER LEFT TUBE OF LIFTING |
