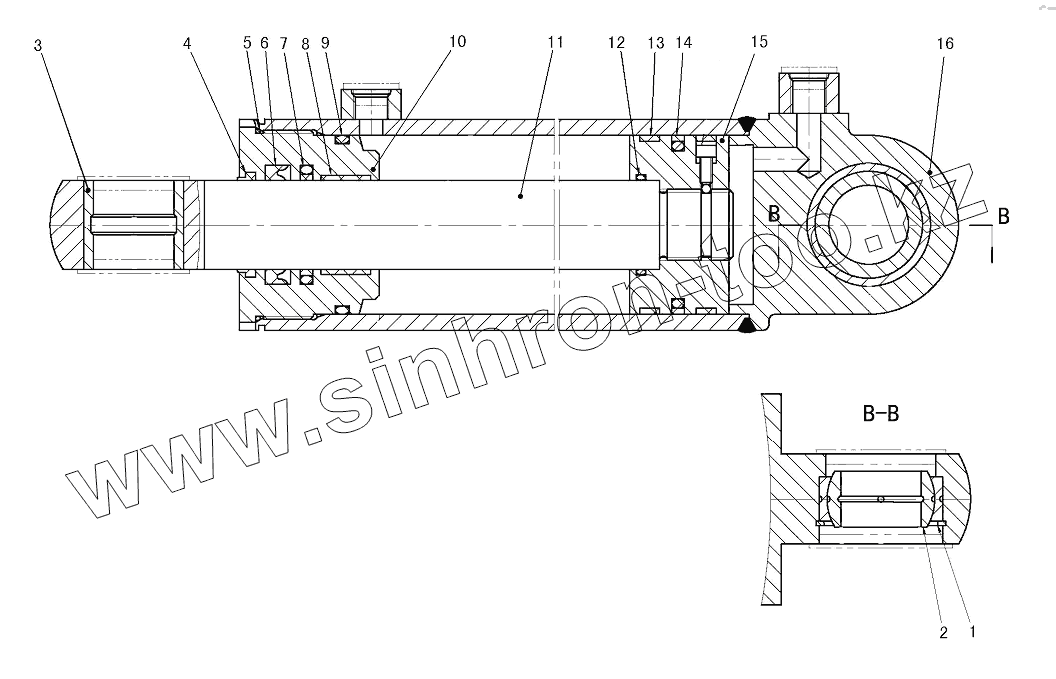

Каталог запасных частей к технике: SDLG LG952. STEERING CYLINDER (371401)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Позиция на иллюстрации Заводской номер детали Название детали
1 4015000261 CHECK RING
2 4021000199 SPHERICAL PLAIN BEARING
3 4120000037002 BUSHING
4 4120000037001 SEALING MEMBER AGGREGATE
5 4120000037001 SEALING MEMBER AGGREGATE
6 4120000037001 SEALING MEMBER AGGREGATE
7 4120000037001 SEALING MEMBER AGGREGATE
8 4120000037001 SEALING MEMBER AGGREGATE
9 4120000037001 SEALING MEMBER AGGREGATE
10 4120000037003 CYLINDER COVER
11 4120000037004 PISTON ROD
12 4120000037001 SEALING MEMBER AGGREGATE
13 4120000037001 SEALING MEMBER AGGREGATE
14 4120000037001 SEALING MEMBER AGGREGATE
15 4120000037005 PISTON
16 4120000037006 CYLINDER BODY
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
