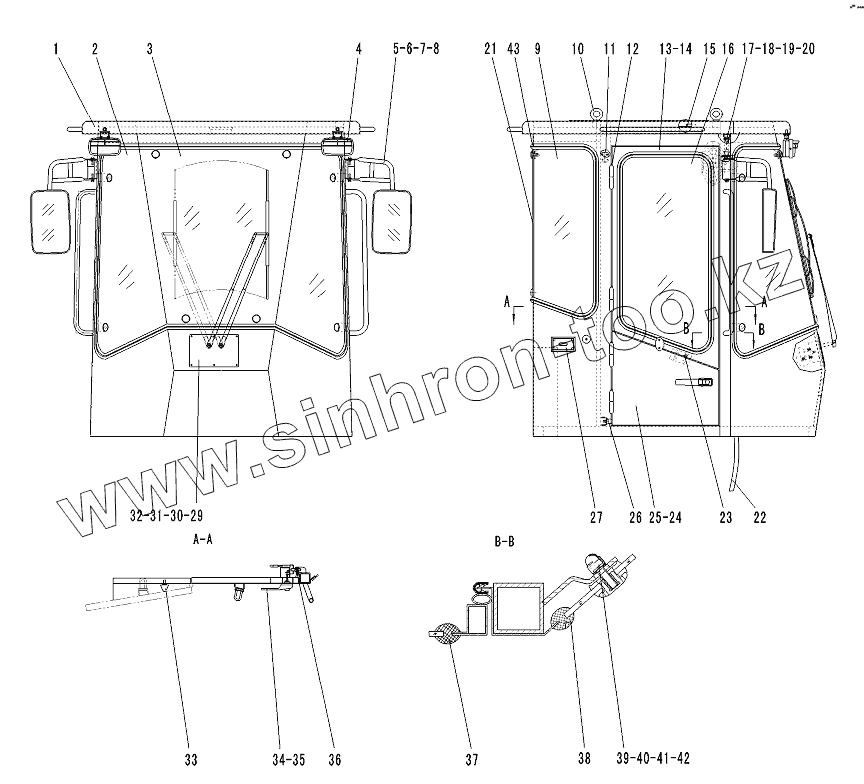

Каталог запасных частей к технике: SDLG LG952. CAB
/50.gif)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4190000649 | CAB GROUP | |
| 2 | 4190000650 | FRONT SIDE GLASS | |
| 3 | 4190000651 | FRONT GLASS | |
| 4 | 4190000586 | WOEKING LAMP | |
| 5 | 4190000575 | BACK UP GLASS GROUP | |
| 6 | 4011000105 | BOLT | |
| 7 | 4015000036 | WASHER | |
| 8 | 4015000072 | WASHER | |
| 9 | 4190000657 | REAR SIDE GLASS | |
| 10 | 4014000028 | SCREW | |
| 11 | 4190000581 | CLOTHING HOOK | |
| 12 | 4030000306 | GREAST NIPPLE | |
| 13 | 4190000659 | LEFT-TOP DOOR ASSEMBLY | |
| 14 | 4190000660 | DOOR ASSEMBLY | |
| 15 | 4190000578 | DOME LAMP | |
| 16 | 4190000661 | DOOR GLASS | |
| 17 | 4190000608 | ELECTRIC FAN | |
| 18 | 4014000063 | SCREW | |
| 19 | 4015000207 | WASHER | |
| 20 | 4015000035 | WASHER | |
| 21 | 4190000664 | REAR GLASS | |
| 22 | 4190000609 | CAB HARNESS | |
| 23 | 4190000613 | MAINTENANCE LOCK | |
| 24 | 4190000666 | LEFT-DOWN DOOR ASSEMBLY | |
| 25 | 4190000667 | DOOR ASSEMBLY | |
| 26 | 4190000597 | BUFFER | |
| 27 | 4190000595 | COUNTER LOCK | |
| 28 | 4190000668 | LG952 TRIM GROUP | |
| 29 | 4190000652 | WIPER BUTTON ASSEMBLY LG952 | |
| 30 | 4190000600 | HAT | |
| 31 | 4190000767 | WIPER BUTTON PLATE LG952 | |
| 32 | 4011000289 | BOLT GB5783-M6x16EpZn-8.8 | |
| 33 | 4190000596 | CHECK OF UPPER GATE | |
| 34 | 4190001758 | RIGHT LOCK | |
| 35 | 4190000605 | LEFT LOCK | |
| 36 | 4190000669 | RUBBER SPACER | |
| 37 | 4190000764 | LG952 RUBBER SPACER OF DOOR GLASS | |
| 38 | 4190000765 | LG952 RUBBER SPACER OF RONT GLASS | |
| 39 | 4190000587 | HAT | |
| 40 | 4190000588 | NUT | |
| 41 | 4190000589 | ROUND PAD | |
| 42 | 4015000256 | WASHER | |
| 43 | 4190000766 | LG952 RUBBER SPACER OF REAR GLASS |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
