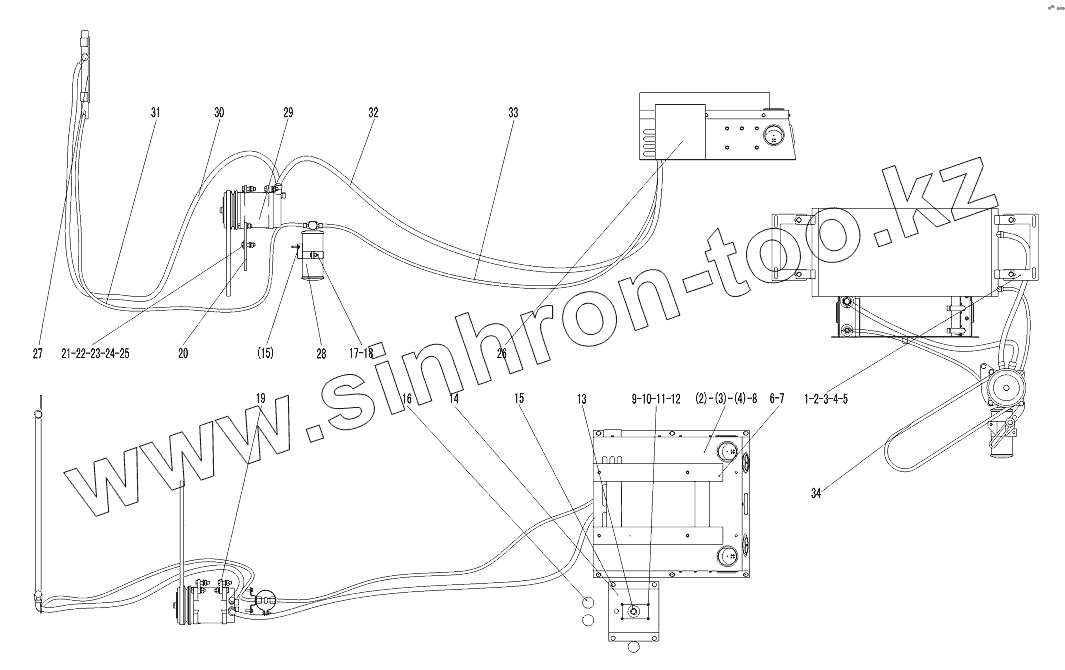

Каталог запасных частей к технике: SDLG LG952. AIR CONDITIONER SYSTEM
/63.gif)
1
2
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29350000032 | COOLER BEARING | |
| 2 | 4011000105 | BOLT | |
| 3 | 4015000036 | WASHER | |
| 4 | 4015000072 | WASHER | |
| 5 | 4013000033 | NUT | |
| 6 | 29300007631 | SEAT BRACKET | |
| 7 | 4011000461 | BOLT | |
| 8 | 4190001066 | AIR CONDITIONING | |
| 9 | 4014000021 | SCREW GB818-M4x12EpZn-4.8 | |
| 10 | 4013000025 | NUT GB6710-M4EpZn-8 | |
| 11 | 4015000135 | WASHER | |
| 12 | 4015000033 | WASHER GB93-4-65Mn | |
| 13 | 29310000091 | RUBBER | |
| 14 | 29310013111 | BRACKET | |
| 15 | 4011000154 | BOLT | |
| 16 | 29310012601 | COVER 32 | |
| 17 | 4011000680 | BOLT | |
| 18 | 4013000028 | NUT | |
| 19 | 29350000051 | SUPPORT PLATE | |
| 20 | 29350007541 | ADJUST PLATE | |
| 21 | 4011000184 | BOLT | |
| 22 | 4015000197 | WASHER | |
| 23 | 4013000007 | NUT | |
| 24 | 4015000025 | Washer | |
| 25 | 4015000162 | Washer | |
| 26 | 4190000476 | EVAPORATOR ZGXM4.11 | |
| 27 | 4190000477 | CONDENSATOR ZG30.05L13 | |
| 28 | 4130000419 | RECEIVER | |
| 29 | 4130000420 | COMPRESSOR ASSEMBLY | |
| 30 | 4120001809 | PIPE COMPRESSOR-CONDENSATOR | |
| 31 | 4120001514 | PIPE CONDENSER-RECEIVER | |
| 32 | 4120001812 | PIPE EVAPORATOR-COMPRESSOR | |
| 33 | 4120001671 | PIPE RECEIVER-EVAPORATOR | |
| 34 | 4110000379 | BELT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
