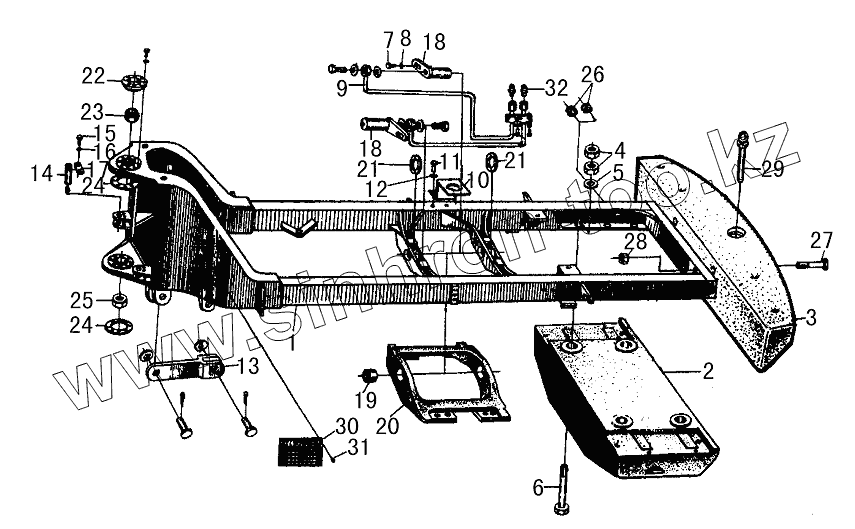

Каталог запасных частей к технике: SDLG LG952. REAR FRAME
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
21
22
23
24
24
25
26
27
28
29
30
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2926000785 | REAR FRAME | |
| 2 | 3110901124 | LOWER COUNTER WEIGHT | |
| 3 | 7100000597 | UPPER COUNTER WEIGHT | |
| 4 | 4013000022 | NUT | |
| 5 | 4015000005 | WASHER | |
| 6 | 4011000077 | BOLT | |
| 7 | 4011000093 | BOLT | |
| 8 | 4040000002 | WASHER | |
| 9 | 2110900059 | OIL TUBE OF OSCILLATING FRAME | |
| 10 | 2904000104 | BRACKET | |
| 11 | 4011000089 | BOLT | |
| 12 | 4015000168 | WASHER | |
| 13 | 2110900051 | MOUNT BAR | |
| 14 | 2927000112 | SWERVE PIN AXIS | |
| 15 | 4011000197 | BOLT | |
| 16 | 4015000026 | WASHER | |
| 17 | 2925000111 | PLATE | |
| 18 | 2110900060 | PIN FOR OSCILLATING FRAME | |
| 19 | 2927000103 | SLEEVE | |
| 20 | 2927000104 | OSCILLATING FRAME | |
| 21 | 2927000105 | ADJUST SPACER | |
| 22 | 2925000103 | FLANGE | |
| 23 | 4021000043 | SPHERICAL PLAIN BEARING | |
| 24 | 2925000105 | JOINING PLATE | |
| 25 | 2925000104 | BUSH | |
| 26 | 3110900176 | RUBBER SLEEVE | |
| 27 | 4011000120 | BOLT | |
| 28 | 4013000064 | LOCKING NUT | |
| 29 | 2928000104 | TRACTIVE PIN | |
| 30 | 2927000759 | NAME PLATE | |
| 31 | 4019000012 | Rivet | |
| 32 | 4030000065 | GREASE NIPPLE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
