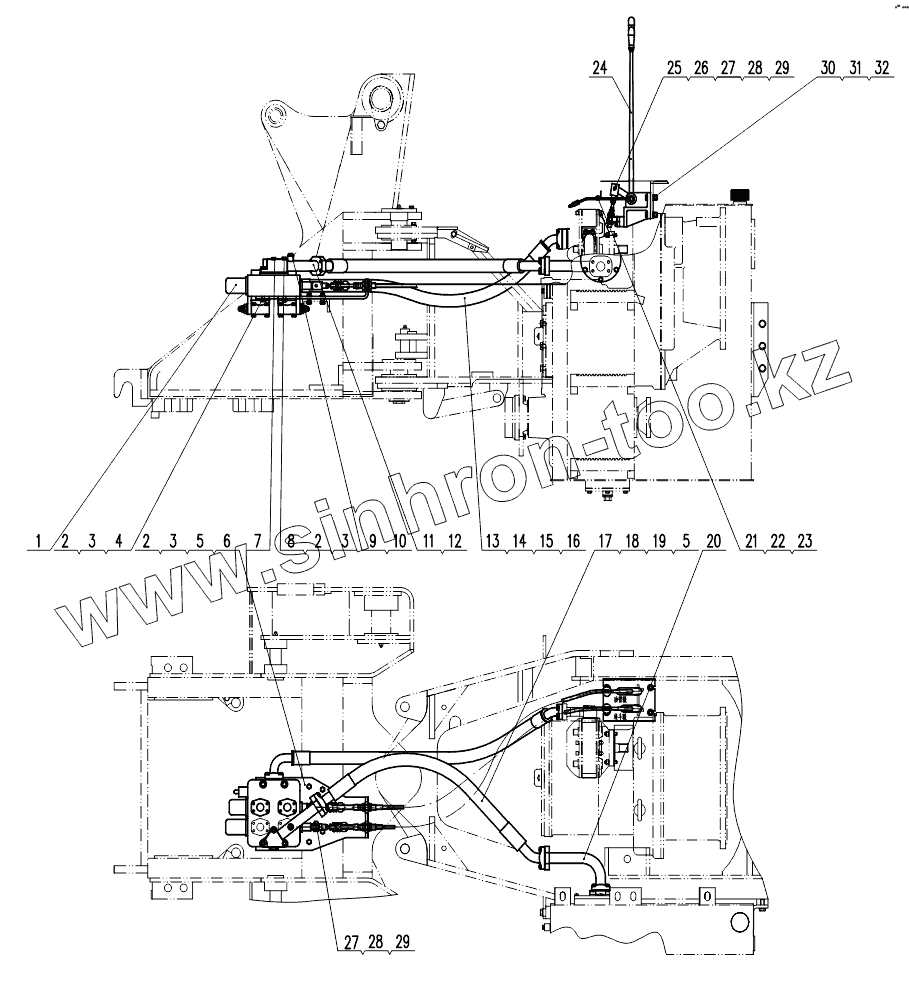

Каталог запасных частей к технике: SDLG LG952. HYDRAULIC CONTROL SYSTEM
1
2
2
2
3
3
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
28
29
29
30
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120000235 | CONTROL VAVLE DF-32D2-16 | |
| 2 | 4015000168 | WASHER | |
| 3 | 4013000011 | NUT | |
| 4 | 4011000055 | BOLT | |
| 5 | 4011000477 | BOLT | |
| 6 | 2912001138 | CONNECTING PLATE | |
| 7 | 4011000230 | BOLT GB16674-M10x65EpZn-8.8 | |
| 8 | 4011000058 | BOLT | |
| 9 | 4041000774 | PLUG | |
| 10 | 4041000767 | O-RING | |
| 11 | 2912001181 | RENTURN TUBE OF MULTIPLE UNIT VALVE | |
| 12 | 4030000031 | O-RING | |
| 13 | 4030000029 | O-RING | |
| 14 | 2912001200 | INPUT PIPE OF THECONTROL VALE | |
| 15 | 4011000475 | BOLT | |
| 16 | 4041000056 | FLANGE | |
| 17 | 4041000166 | TUBE LGB161014120 | |
| 18 | 4041000011 | FLANGE | |
| 19 | 4030000130 | O-RING | |
| 20 | 2912001187 | RETURN OIL HIND OF CONTROL VAVLE | |
| 21 | 2925000031 | PIPE CLIP | |
| 22 | 4014000024 | SCREW | |
| 23 | 4015000035 | WASHER | |
| 24 | 2912000106 | CONTROL SYSTEM | |
| 25 | 2912000122 | CABLE SHAFT OF BUCKET | |
| 26 | 2912000123 | CABLE SHAFT OF LIFT ARM | |
| 27 | 2912000008 | JOINT HEAD | |
| 28 | 2912000007 | PIN ROLL | |
| 29 | 4016000035 | SPLIT PIN | |
| 30 | 4011000451 | BOLT GB5782-M10x45EpZn-8.8 | |
| 31 | 4015000162 | Washer | |
| 32 | 4013000007 | NUT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
