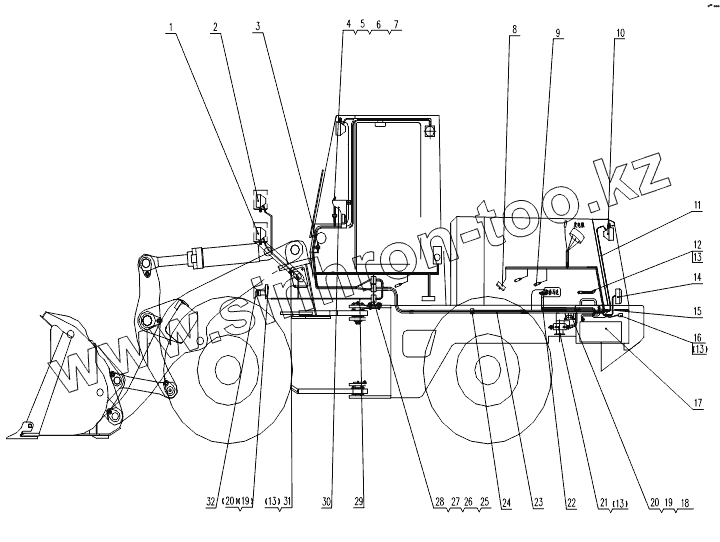

Каталог запасных частей к технике: SDLG LG952. ELECTRIC SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
13
13
13
14
15
16
17
18
19
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4130000204 | LEFT FRONT HEAD LAMP | |
| 2 | 4130000205 | RIGHT FRONT HEAD LAMP | |
| 3 | 2937000803 | PANEL HARNESS | |
| 4 | 4130000290 | STEERING SWITCH | |
| 5 | 2937001189 | BACK PLATE | |
| 6 | 4014000026 | SCREW | |
| 7 | 4015000035 | WASHER | |
| 8 | 4130000278 | DISSEPIMENT PRESSURE SWITCH310-LGK | |
| 9 | 4130000412 | PRESSURE SWITCH PS31-FS0.8BARR | |
| 10 | 4130000270 | REAR LARGE LAMP | |
| 11 | 2937000104 | REAR HOOD HARNESS | |
| 12 | 2937000105 | EARTH WIRE | |
| 13 | 4011000461 | BOLT | |
| 14 | 4130000213 | REAR LAMP | |
| 15 | 2937000106 | STORAGE BATTERY WIRE | |
| 16 | 4130000031 | ANNUNCIATOR | |
| 17 | 4130000057 | BATTERY | |
| 18 | 4130000015 | STARTUP RELAY | |
| 19 | 4014000024 | SCREW | |
| 20 | 4015000207 | WASHER | |
| 21 | 4130000005 | MAIN SWITCH OF POWER SOURCE | |
| 22 | 2937000108 | LINE FROM SWITCH TO MOTOR | |
| 23 | 2937000805 | REAR BODY WIRING HARNESS | |
| 24 | 4190000020 | CLIP | |
| 25 | 2937001158 | PLATE | |
| 26 | 4011000153 | BOLT | |
| 27 | 4014000087 | SCREW | |
| 28 | 4015000135 | WASHER | |
| 29 | 2937000807 | FRONT BODY WIRING HARNESS | |
| 30 | 2937001184 | PANEL ZL2-235D | |
| 31 | 2935000002 | PIPE NIP | |
| 32 | 4130000009 | ELECTRIC HORN |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
