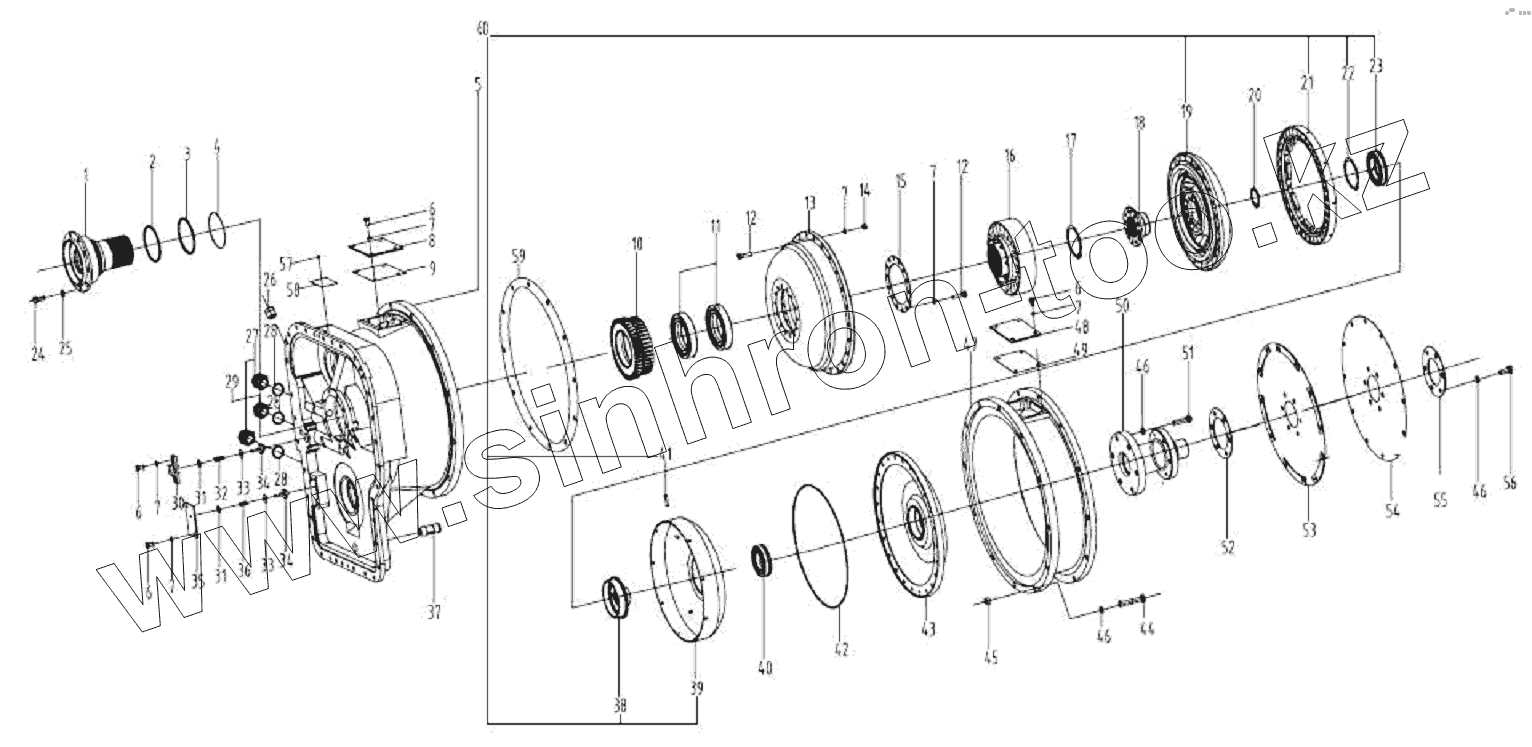

Каталог запасных частей к технике: SDLG LG946L. YSW315-6G
1
2
3
4
5
6
6
6
6
7
7
7
7
7
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
28
29
30
31
31
32
33
33
34
34
35
36
37
38
39
40
41
42
43
44
45
46
46
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4110000011081 | STATOR SEAT | |
| 2 | 4110000011082 | SEAL RING | |
| 3 | 4110000011083 | SEAL RING | |
| 4 | 4110000011084 | SPRING WASHER | |
| 5 | 4110000011085 | HOUSING | |
| 6 | 4110000011086 | BOLT | |
| 7 | 4110000011087 | WASHER | |
| 8 | 4110000011088 | FILLER | |
| 9 | 4110000011089 | SPACER | |
| 10 | 4110000483001 | GEAR YJSW315-8A-00004 | |
| 11 | 4021000076 | BEARING | |
| 12 | 4110000160075 | BOLT | |
| 13 | 4110000011092 | PUMP WHEEL YJSW315-6C-00002 | |
| 14 | 4110000518002 | NUT | |
| 15 | 4110000011094 | COMPRESSING SHIM | |
| 16 | 4110000011095 | GUIDE WHEEL YJSW315-6C-00001 | |
| 17 | 4110000518004 | RETAINER RING | |
| 18 | 4110000194010 | TURBlNE HUB YB315Z5.1-2A-2 | |
| 19 | 4110000194011 | TURBlNE YJSW315-6C-11001 | |
| 20 | 4110000011096 | ADJUSTING SHIM | |
| 21 | 4110000011123 | FIRST-STAGE TURNINE YJSW315-6C-10001 | |
| 22 | 4110000011125 | RETAINER RING | |
| 23 | 4021000155 | BEARING | |
| 24 | 4012000022 | BOLT GB5783-M10x25-10.9 | |
| 25 | 4110000011097 | WASHER 10 | |
| 26 | 4110000359052 | JOINT | |
| 27 | 4110000011098 | PIPE JOINT | |
| 28 | 4015000209 | WASHER | |
| 29 | 4110000359015 | PLUG SCREW | |
| 30 | 4110000011100 | VALVE CAP | |
| 31 | 4110000011107 | ADJUSTING SHIM | |
| 32 | 4110000011101 | SPRING | |
| 33 | 4110000011102 | ADJUSTING SHIM | |
| 34 | 4110000011103 | VALVE ROD | |
| 35 | 4110000011105 | PRESS PLATE | |
| 36 | 4110000011106 | SPRING | |
| 37 | 4110000011129 | PIPE JOINT | |
| 38 | 4110000518010 | TURBINE HUB | |
| 39 | 4110000160079 | TURBINE CAP | |
| 40 | 4021000018 | BEARING | |
| 41 | 4110000011134 | PIN | |
| 42 | 4030000465 | O-RING | |
| 43 | 4110000194001 | CAP WHEEL | |
| 44 | 4110000194007 | BOLT | |
| 45 | 4110000194006 | NUT | |
| 46 | 4110000011108 | WASHER 01602-11236 12 | |
| 47 | 4110000160056 | MEDIUM KNOT | |
| 48 | 4110000194008 | COVER PLATE | |
| 49 | 4110000194009 | PAD | |
| 50 | 4110000160059 | TRANSITION SHAFT | |
| 51 | 4110000160080 | BOLT | |
| 52 | 4110000011113 | ADJUSTING SHIM | |
| 53 | 4110000011114 | ELASTIC PLATE ASSEMBLY | |
| 54 | 4110000011115 | ELASTIC PLATE | |
| 55 | 4110000011116 | RING PALLET | |
| 56 | 4110000160081 | BOLT | |
| 57 | 7200000846 | RIVET | |
| 58 | 4110000841001 | NAME PLATE YJSW315-6G-BP | |
| 59 | 4110000011118 | MAT | |
| 60 | 4110000011111 | TURBINE GROUP YJSW315-6C-10000 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
