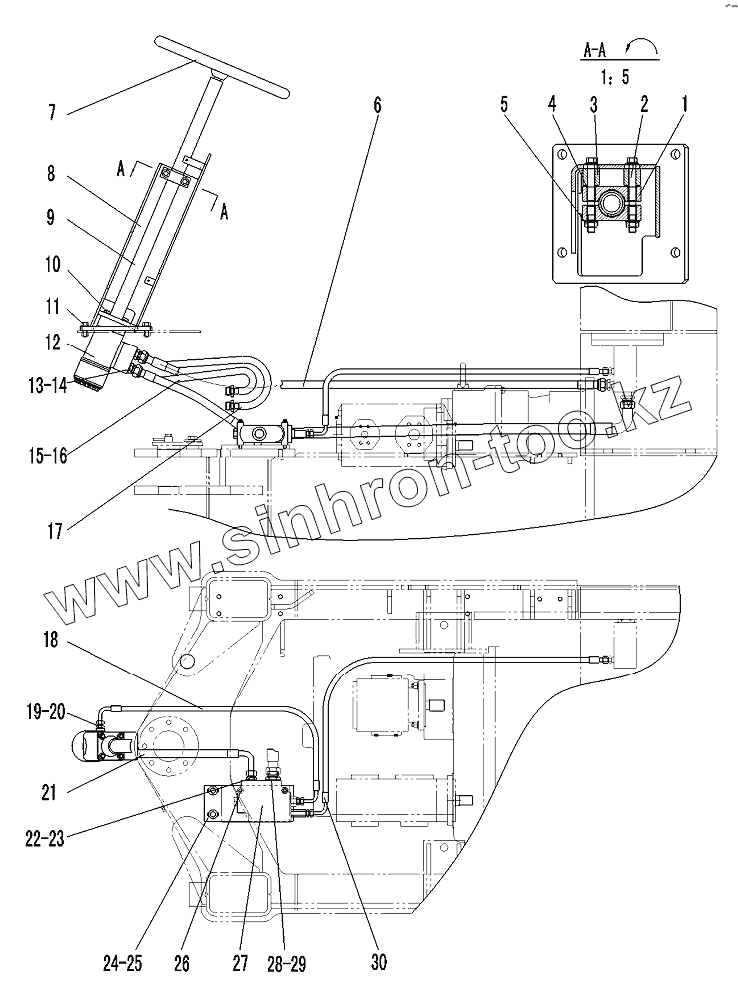

Каталог запасных частей к технике: SDLG LG946L. STEERING GEAR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29310011251 | MOUNTING PLATE | |
| 2 | 4011000528 | BOLT GB16674-M10x100EpZn-8.8 | |
| 3 | 29310011301 | ADJUSTING SEAT | |
| 4 | 4015000162 | Washer | |
| 5 | 4013000007 | NUT | |
| 6 | 4041000516 | PIPE | |
| 7 | 4120000018 | STEERINGWHEEL | |
| 8 | 29310011191 | MOUNTING FRAME | |
| 9 | 4120001855 | STEERIGN COLUMN LG20-ZXZ-09 | |
| 10 | 4011000473 | BOLT | |
| 11 | 4011000479 | BOLT | |
| 12 | 4120002379 | Control valve | |
| 13 | 4041000564 | JOINT | |
| 14 | 4041000783 | O-RING | |
| 15 | 29200004021 | OIL OUTLET TUBE OF STEERING GEAR | |
| 16 | 4030000501 | O-RING | |
| 17 | 29200004031 | OUTLET TUBE FROM STEERING DEVICE | |
| 18 | 29200007781 | FEEDBACK OIL PIPE OF PRIORITY VALVE | |
| 19 | 4041000131 | JOINT | |
| 20 | 4041000784 | O-RING | |
| 21 | 29200008251 | OIL PIPE OF STEERING GEAR | |
| 22 | 4041000187 | JOINT | |
| 23 | 4041000771 | O-RING | |
| 24 | 29200008461 | MOUNTING PLATE | |
| 25 | 4011000560 | BOLT | |
| 26 | 4011000302 | BOLT | |
| 27 | 4120002518 | PRlORlTY VALVE VLE-150-14 | |
| 28 | 4041000188 | JOINT | |
| 29 | 4041000779 | O-RING | |
| 30 | 4041000514 | PIPE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
