Каталог запасных частей к технике: SDLG LG946L. HYDRAULIC CONTROL SYSTEM
1
2
3
3
3
3
4
4
5
6
7
8
9
9
9
9
10
10
10
11
11
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
24
25
26
26
26
27
28
29
30
31
32
32
33
33
34
35
36
37
38
39
40
41
42
43

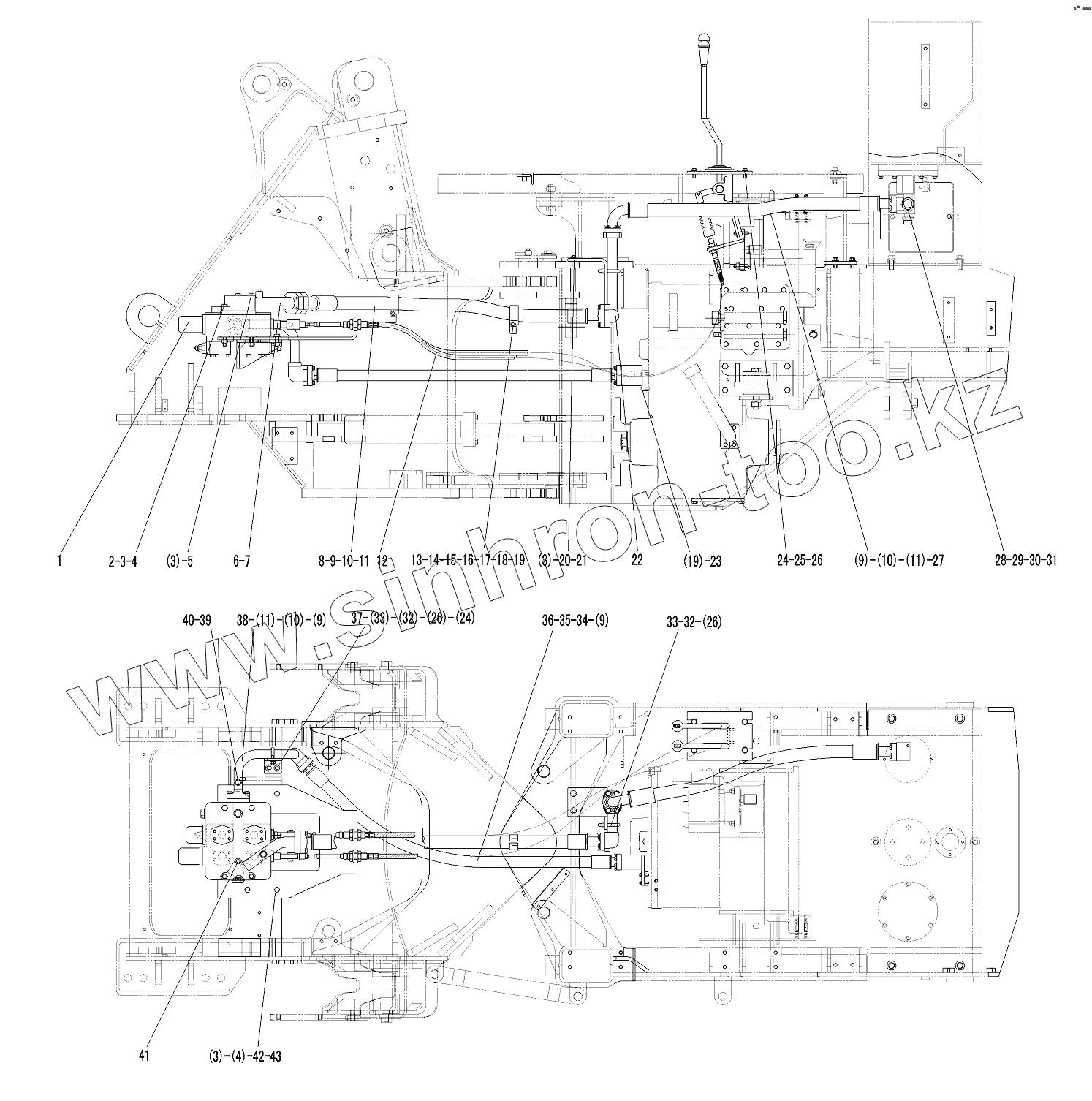

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120002038 | CONTROL VALVE DFS-32-16 | |
| 2 | 4011000056 | BOLT | |
| 3 | 4015000168 | WASHER | |
| 4 | 4013000011 | NUT | |
| 5 | 4011000058 | BOLT | |
| 6 | 29120005021 | RENTURN TUBE OF MULTIPLE UNIT VALVE | |
| 7 | 4030000130 | O-RING | |
| 8 | 4041000705 | TUBE LGB163012112 | |
| 9 | 4011000475 | BOLT | |
| 10 | 4041000056 | FLANGE | |
| 11 | 4030000029 | O-RING | |
| 12 | 29120016802 | AXlS | |
| 13 | 29120015431 | CLAMP | |
| 14 | 4041000869 | CUSHION | |
| 15 | 4041001188 | CUSHION | |
| 16 | 4015000072 | WASHER | |
| 17 | 4013000033 | NUT | |
| 18 | 29120015711 | CLAMP | |
| 19 | 4011000458 | BOLT | |
| 20 | 4011000087 | BOLT | |
| 21 | 29120013521 | MOUNTED PLATE | |
| 22 | 29120016771 | TUBE | |
| 23 | 29120004041 | TWO-WAY MASS | |
| 24 | 4011000474 | BOLT | |
| 25 | 4120002148 | OPERATlNG GEAR LG12-936CZJG02 | |
| 26 | 4015000162 | Washer | |
| 27 | 4041000532 | TUBE | |
| 28 | 4041000728 | PLUG | |
| 29 | 4030000490 | O-RING | |
| 30 | 4041000598 | PLUG | |
| 31 | 4030000240 | O-RING | |
| 32 | 4041001141 | U-BOLT LGB159-03646 | |
| 33 | 4013000007 | NUT | |
| 34 | 4041000698 | TUBE LGB107010125 | |
| 35 | 4041000043 | FLANGE | |
| 36 | 4030000026 | O-RING | |
| 37 | 29120005101 | FIX PLANK | |
| 38 | 29120004051 | INPUT TUBE OF MULTIPLE UNIT VALVE | |
| 39 | 4041000774 | PLUG | |
| 40 | 4041000767 | O-RING | |
| 41 | 4011000230 | BOLT GB16674-M10x65EpZn-8.8 | |
| 42 | 29120017761 | claping plate of mutiple congtrol valve | |
| 43 | 4011000090 | BOLT |
