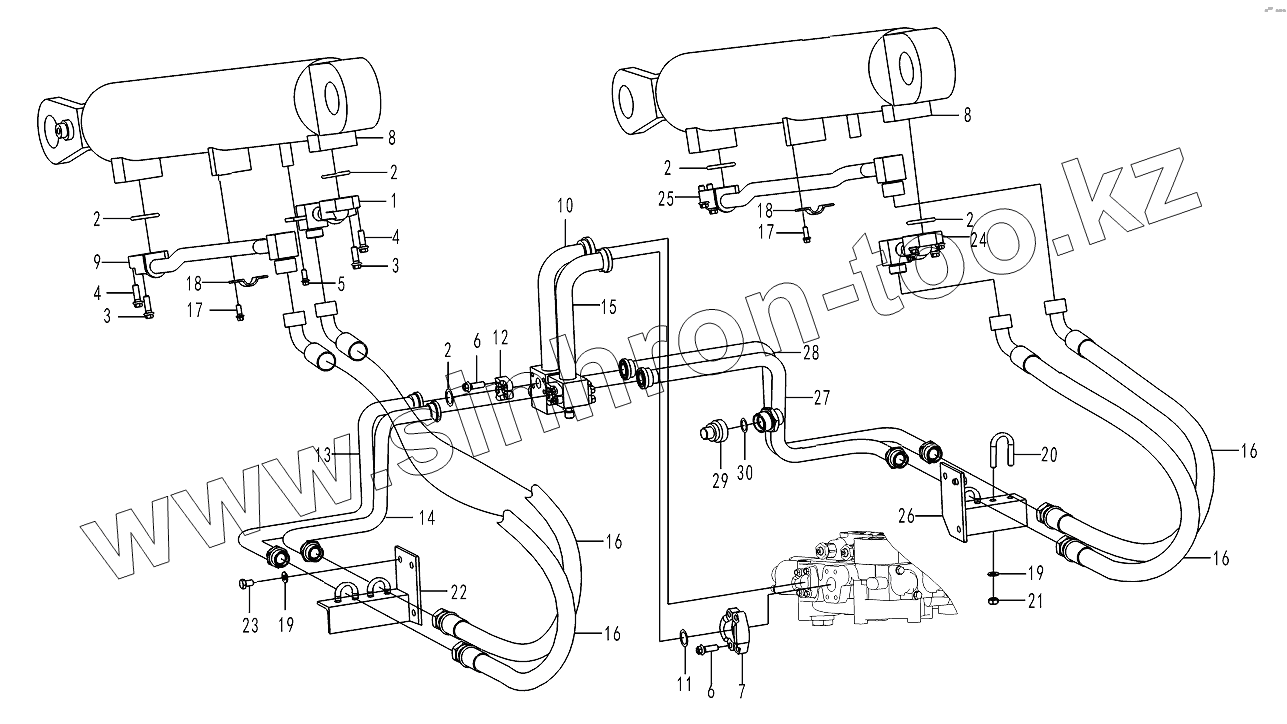

Каталог запасных частей к технике: SDLG LG944MSK. Lifting cylinder assembly
1
2
2
2
2
2
3
3
4
4
5
6
6
7
8
8
9
10
11
12
13
14
15
16
16
16
16
17
17
18
18
19
19
20
21
22
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29130004121 | BIG CHAMBER STEEL TUBE OF RIGHT LIFTING CYLINDER | |
| 2 | 4030000279 | O-RING | |
| 3 | 4011000309 | BOLT | |
| 4 | 4011000164 | BOLT | |
| 5 | 4011000447 | BOLT | |
| 6 | 4011000475 | BOLT | |
| 7 | 4041000027 | FLANGE | |
| 8 | 4120000867 | LIFT CYLINDER | |
| 9 | 29130004131 | OIL TUBE OF SMALL CHAMBER RIGHT LIFTING CYLINDER | |
| 10 | 29130008301 | SMALL CHAMBER THREE-WAY TUBE OF LIFTING CYLINDER | |
| 11 | 4030000029 | O-RING | |
| 12 | 4041000137 | FLANGE | |
| 13 | 29130019261 | Pipe | |
| 14 | 29130019241 | Pipe | |
| 15 | 29130017951 | Pipe | |
| 16 | 29130019271 | Hose | |
| 17 | 4011000458 | BOLT | |
| 18 | 29130004081 | CLAMP | |
| 19 | 4015000162 | Washer | |
| 20 | 4011000490 | U-BOLT | |
| 21 | 4013000007 | NUT | |
| 22 | 29130004091 | STEADY REST A | |
| 23 | 4011000080 | BOLT | |
| 24 | 29130004071 | BIG CHAMBER TUBE OF LEFT LIFTING CYLINDER | |
| 25 | 29130004021 | OIL TUBE OF SMALL CHAMBER LEFT LIFTING CYLINDER | |
| 26 | 29130004111 | STEADY REST B | |
| 27 | 29130019201 | Pipe | |
| 28 | 29130019221 | Pipe | |
| 29 | 4041000774 | PLUG | |
| 30 | 4041000767 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
