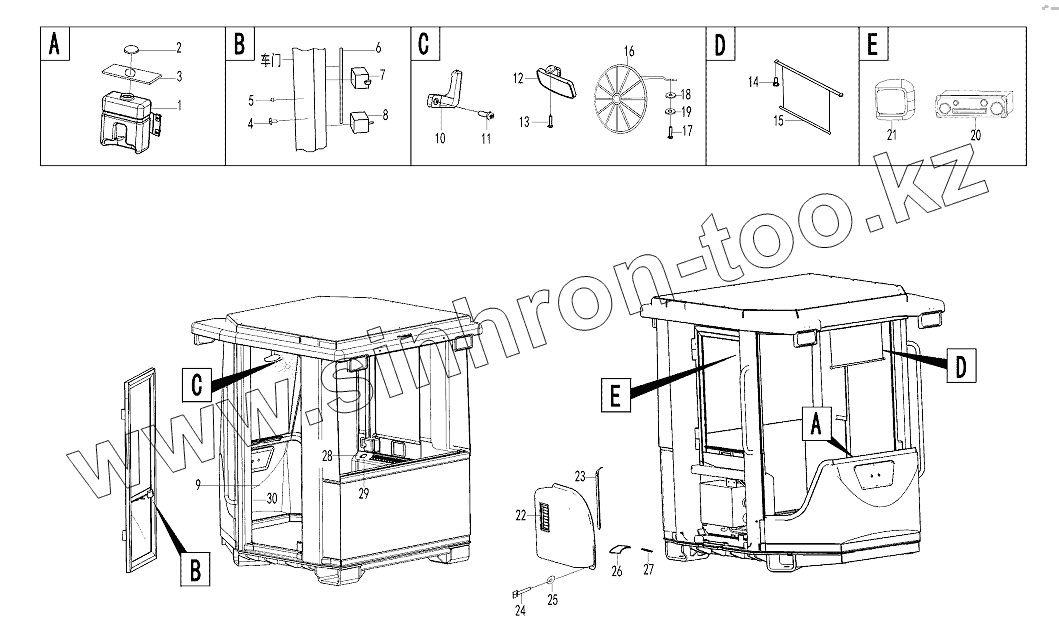

Каталог запасных частей к технике: SDLG LG944MSK. Cab
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4190000758 | BLOW CAN | |
| 2 | 29290009181 | BLOW CAN CAP | |
| 3 | 29290008871 | LOWER COVER PLATE ON LEFT FRONT | |
| 4 | 4190000596 | CHECK OF UPPER GATE | |
| 5 | 4030000535 | OIL CUP | |
| 6 | 4190000966 | RUBBER SPACER | |
| 7 | 4190000605 | LEFT LOCK | |
| 8 | 4190000595 | COUNTER LOCK | |
| 9 | 4190001305 | BASIC TRIM GROUP | |
| 10 | 4190000581 | CLOTHING HOOK | |
| 11 | 4014000037 | SCREW | |
| 12 | 4190001841 | Rear view mirror | |
| 13 | 4014000046 | SCREW | |
| 14 | 4014000077 | SCREW | |
| 15 | 4190001334 | SHADOW SHIELD | |
| 16 | 4190000608 | ELECTRIC FAN | |
| 17 | 4014000063 | SCREW | |
| 18 | 4015000207 | WASHER | |
| 19 | 4015000035 | WASHER | |
| 20 | 29370012981 | CD-MACHINE ASSEMBLY | |
| 21 | 4190000578 | DOME LAMP | |
| 22 | 29290009151 | AIR-INLET GRILLE | |
| 23 | 29290009171 | SPONGE | |
| 24 | 4011000291 | BOLT | |
| 25 | 4015000207 | WASHER | |
| 26 | 4190000960 | SEAL OF TUBE SPONGE | |
| 27 | 4190000961 | LINEAR SEALING SPONGE | |
| 28 | 29290008941 | BOILER'S HOOD P | |
| 29 | 4190000962 | CUP SEAT | |
| 30 | 4190001359 | CAP |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
