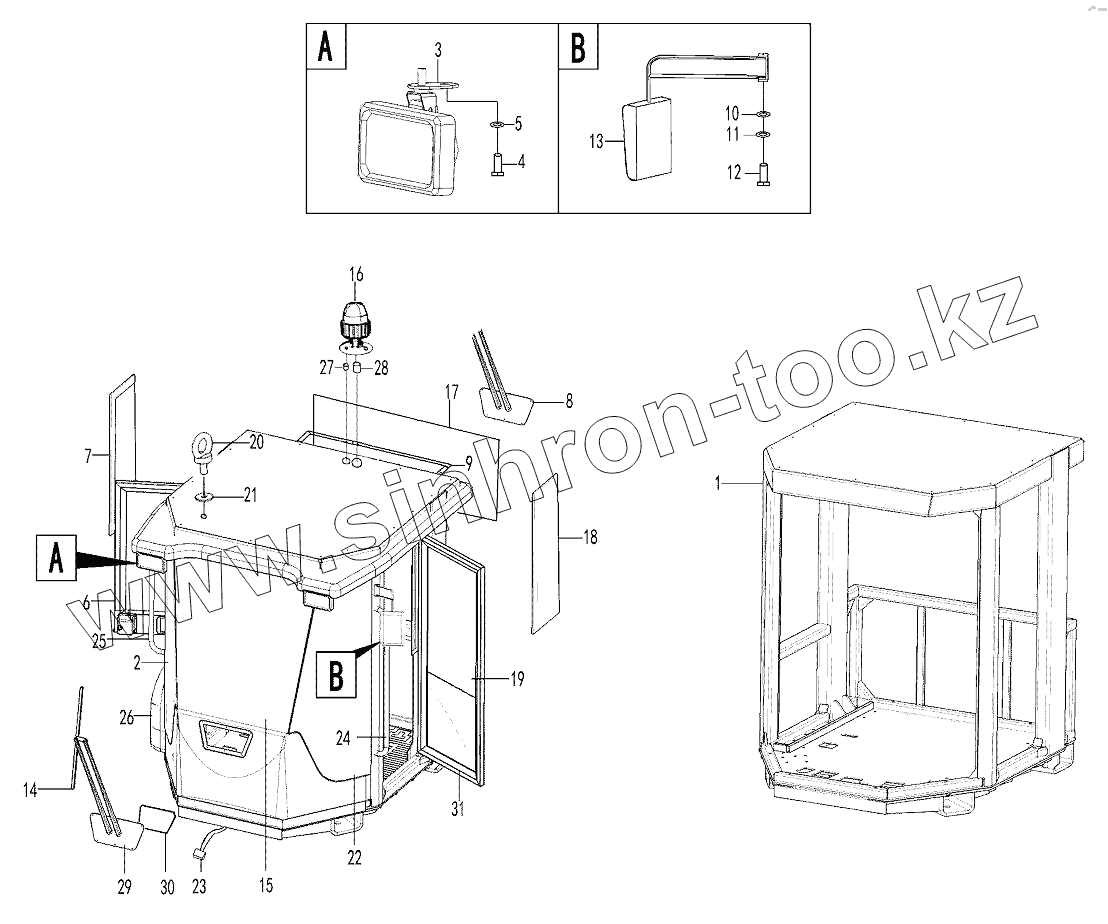

Каталог запасных частей к технике: SDLG LG944MSK. Cab
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29290009701 | CAB ASSEMBLY | |
| 2 | 4190001304 | FRONT GLASS | |
| 3 | 4190000968 | TRANSTION PLATE OF LIGHT | |
| 4 | 4011000082 | BOLT | |
| 5 | 4015000162 | Washer | |
| 6 | 4190001306 | SLIDING WINDOW | |
| 7 | 4190001314 | REAR GLASS | |
| 8 | 4190001310 | REAR WIPER BUTTON | |
| 9 | 4190000953 | REAR ARM REST | |
| 10 | 4015000072 | WASHER | |
| 11 | 4015000036 | WASHER | |
| 12 | 4011000105 | BOLT | |
| 13 | 4190000575 | BACK UP GLASS GROUP | |
| 14 | 4190000599 | WIPER BUTTON | |
| 15 | 4190001307 | FRONT WINDSHIELD FR185 | |
| 16 | 29370012971 | GYRATE LAMP ASSEMBLY | |
| 17 | 4190001315 | REAR GLASS | |
| 18 | 4190001316 | REAR GLASS | |
| 19 | 4190001317 | DOOR GLASS | |
| 20 | 4014000030 | SCREW | |
| 21 | 4190000956 | SEAL WASHER | |
| 22 | 4190001311 | LEFT FRONT GLASS | |
| 23 | 4190001312 | CAB WIRING | |
| 24 | 4190000965 | LEFT ARM REST | |
| 25 | 4190000957 | RIGHT ARM REST | |
| 26 | 4190001785 | Cover | |
| 27 | 4190000958 | RUBBER COVR-30 | |
| 28 | 4190000959 | RUBBER COVR-10 | |
| 29 | 4190000963 | WIPER BUTTON CAP | |
| 30 | 4190000964 | WIPER BUTTON GASKET | |
| 31 | 4190002734 | Door |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
