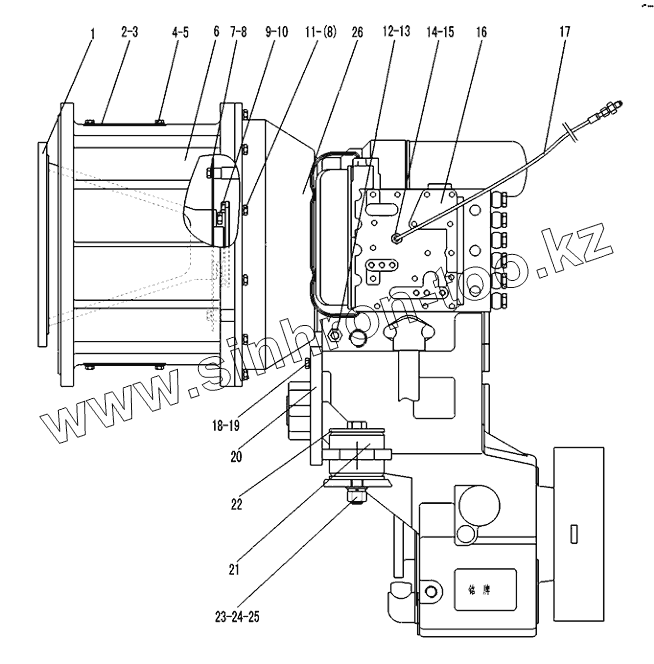

Каталог запасных частей к технике: SDLG LG938L. TRANSMISSION SYSTEM
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
B877 (2013)
B877 (2017)
G9138 (2020)
G9190 (2013)
L916 (2017)
L938F (2016)
L948 (2016)
L948F (2015)
L953N (2017)
L956F (2017)
L958F (2019)
LG6150E
LG6210E (2013)
LG918 (2008)
LG918 (2009)
LG933 (2008)
LG933 (2018)
LG933L (2011)
LG936 (2007)
LG936 (2007)
LG936L (2009)
LG936L (2013)
LG936L (2017)
LG938 (2006)
LG938 (2010)
LG938F (2015)
LG938L (2010)
LG944MSK (2015)
LG946L (2010)
LG952 (2007)
LG952 (2009)
LG952H (2009)
LG952H (2012)
LG952N (2016)
LG953 (2006)
LG953 (2008)
LG953 (2009)
LG953N (2015)
LG955N (2015)
LG956 (2005)
LG956F (2016)
LG956FH (2017)
LG956L (2009)
LG956L (2015)
LG956V (2015)
LG958 (2006)
LG958L (2009)
LG958L (2012)
LG958N (2013)
LG958N (2015)
LG968 (2007)
LG968 (2009)
LG969 (2007)
LG969 (2009)
LG969N (2015)
LGB680 (2007)
Схема
>
Не выбрано
DIESEL ENGINE ASSY
FUEL TANK ASSEMBLY
RADIATOR ASSEMBLY
GOVERNOR CONTROL SYSTEM
AGENCY,APPROVAL AP 9365-01ZZ
BLOCK, ENGINE bp 9072zz
LEVER ROCKER BP9710ZZ
FOLLOWER, CAM BP 9711ZZ
COVER, FRONT GEAR BP 9807-01ZZ
PLUMBING,CPR COOLANT CC9023-03ZZ
COVER, CAM FOLLOWER CM 9016ZZ
COMPRESSOR,AIR CP 9002-03ZZ
CONNECTION CP9002-1ZZ
DAMPER,VIBRATION DA 9208ZZ
ACCESSORIES,ELECTRICAL EA 9099ZZ
THERMOSTAT EC 9052ZZ
ALTERNATOR EE 9314ZZ
MOUNTING,ALTERNATOR EH97541ZZ
DRIVE,ALTERNATOR EH97543ZZ
SENSOR, COO TEMPERATURE EO 9141ZZ
ED9071 DOCUMENTATIO,ENG IDT
DRIVE, FAN FA 9516ZZ
DRIVE, FAN FA 9702ZZ
PLUMBING,AIR FUEL CONTRO FE 9701-03ZZ
FILTER,FUEL FF 9001-01ZZ
FILTER,FUEL FF 9702-04ZZ
Housing,Flywheel FH 9020ZZ
COUPLING,FUEL PUMP FP 9764-02ZZ
PUMP,FUEL INJECTION FP L006ZZ
PUMP,LIFT FS 9004-02ZZ
PLUMBING,FUEL FT 9786-03ZZ
VALVE,FUEL SHUTOFF FV 9420ZZ
Flywheel FW 9016ZZ
BRACKET,LIFTING LA 9007ZZ
Cooler,Engine oil LC 9020ZZ
GAUGE,OIL LEVEL LG90235ZZ
PUMP,LUBRICATING OIL LP 9064ZZ
COVER,CYLINDER BLOCK OB 9702ZZ
PAN,OIL OP 9005ZZ
MOUNTING,OIL PAN OP 9702ZZ
HEAD,CYLINDER PP 9980-01ZZ
TURBOCHARGER PP L012ZZ
PERFORMANCE PARTS PP L013ZZ
MOUNTING,STARTING SM 9712ZZ
KIT,ENGINE INSTALLATION SS 9530ZZ
KIT,ENGINE INSTALLATION SS 9643ZZ
LOCATION,TURBOCHARGER TB 9701-01ZZ
LOCATION,TURBOCHARGER TB L004ZZ
HOUSING,THERMOSTAT TH 9037ZZ
TOOL,SERVICE TO L003ZZ
PLUMBING, TURBOCHARGER TP97314ZZ
Cover,Valve VC 9023ZZ
PULLEY,ACCESSORY PA 9001
VENT,ENGINE COOLANT WH 9128ZZ
CONNECTION,WATER INLET WI 9226ZZ
CONNECTION WATER INLET WI 9701ZZ
PUMP, WATER WP 9617ZZ
PAINT SS 9471
TRANSMISSION SYSTEM
CASE PARTS
INPUT PARTS
OUTPUT PARTS
CONTROL PARTS
SPEED INDICATOR PARTS
IDLER PARTS
STOP BRAKE STAFF PARTS
PRESSURE VALVE PARTS
ОIL SUCTION TUBE PARTS
ENGINE CONNECTION PARTS
ОIL FILLING TUBE PARTS
OIL FILTER PARTS
CLUTCH PARTS
CLUTCH PARTS
CLUTCH PARTS
PTO1 PARTS P.T.02
PTO2 PARTS P.T.02
CONTROL VALVE PARTS
RONT AXLE MAIN DRIVE ASSEMBLY
FINAL DRIVE ASSEMBLY
REAR AXLE MAIN DRIVE ASSEMBLY
DISK BRAKE (371328)
AXLE SYSTEM
TIRE GB2980-23.5-25 (520101)
HYDRAULIC CONTROL ASSEMBLY
WORKING PUMP ASSEMBLY
LIFTING CYLINDER ASSEMBLY
TILT CYLINDER ASSEMBLY
HYDRAULIC TANK ASSEMBLY
DUMP CYLINDER (371368)
LIFT ARM CYLINDER (371368)
CONTROL VALVE (331001)
WORKING EQUIPMENT
STEERING PUMP ASSEMBLY
STEERING UNIT ASSEMBLY
STEERING CYLINDER ASSEMBLY
STEERING CYLINDER (371368)
SERVICE BRAKE ASSEMBLY
AIR RESERVOIR
BRAKE BOOSTER (340201)
PARKING BRAKE SYSTEM
FRONT FRAME
REAR FRAME ASSEMBLY
COUNTER WEIGHT
CAB ASSEMBLY
CAB
OPERATE BENCH
SEAT ASSEMBLY
OPERATE BOX
ENGINE HOOD ASSEMBLY
LEFT BENCH ASSEMBLY
RIGHT BENCH ASSEMBLY
LEFT RIGHT LAMP FRAME
LEFT RIGHT FENDER
BATTERY CASE ASSEMBLY
DOWN LADDER ASSEMBLY
SIGN AND LOGO
WARMING MACHINE
AIR CONDITIONER SYSTEM
WARMING MACHING
ELECTRIC SYSTEM
ELECTRIC SYSTEM
PANEL ASSEMBLY
PANEL ASSEMBLY
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Позиция на иллюстрации
Заводской номер детали
Название детали
1
29050010441
TRANSITION PAN OF FLYWHEEL
2
29050010451
GLAND
3
29050010461
SHIM
4
4011000102
BOLT
5
4015000072
WASHER
6
29050010471
TRANSITION CANISTER OF FLYWHEEL SHELL
7
4011000569
BOLT
8
4015000025
Washer
9
4011000197
BOLT
10
4015000026
WASHER
11
4011000184
BOLT
12
29050007601
OIL TEMPERATURE METER JOINT
13
4030000057
WASHER
14
29010001111
JOINT
15
4015000139
WASHER
16
4110000076
TRANSMISSION ASSY
17
29050010671
OIL PIPE
18
4011000273
BOLT GB5783-M20x50EpZn-8.8
19
4015000030
WASHER
20
29050010491
TRANSMISSION BRACKET
21
29050000101
SHOCK MOUNT
22
29050000121
WASHER
23
4011000236
BOLT
24
4015000176
WASHER
25
4013000020
NUT
26
4110000076388
TORQUE CONVERTER ASSEMBLY 4166 031 804
