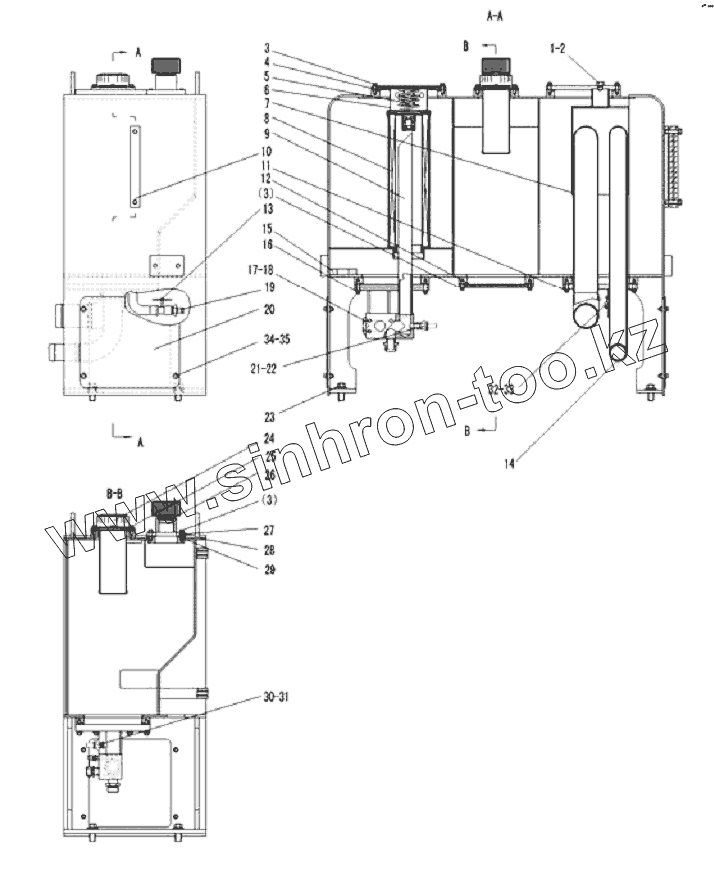

Каталог запасных частей к технике: SDLG LG938L. HYDRAULIC TANK ASSEMBLY
1
2
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4041000774 | PLUG | |
| 2 | 4041000767 | O-RING | |
| 3 | 4011000458 | BOLT | |
| 4 | 4030000232 | O-RING | |
| 5 | 29100000051 | SPRING | |
| 6 | 29100000041 | FLANGE CAP | |
| 7 | 29100004071 | TOP OIL-SUCTION FLANGE | |
| 8 | 29100004061 | STRAIN CORE | |
| 9 | 29100007641 | OIL RETURNING FLANGE | |
| 10 | 4120000093 | GAUGE LEVEL | |
| 11 | 4011000455 | BOLT | |
| 12 | 29100000361 | FLANGE CAP | |
| 13 | 4120000099 | BALL VALVE | |
| 14 | 29100008641 | OIL-SUCTION FLANGE | |
| 15 | 4190000008 | RING MAGNET | |
| 16 | 4011000481 | BOLT | |
| 17 | 4041000192 | PLUG | |
| 18 | 4041000765 | O-RING | |
| 19 | 29100009061 | FITTING | |
| 20 | 29100008551 | SIDE BROAD | |
| 21 | 4041000728 | PLUG | |
| 22 | 4030000490 | O-RING | |
| 23 | 4011000449 | BOLT | |
| 24 | 4120000452 | OIL-SUPPLYING FILTER | |
| 25 | 4011000461 | BOLT | |
| 26 | 4120001088 | GAS-EXCHANGE FILTER | |
| 27 | 29100009991 | BLIND FLANGE | |
| 28 | 4030000233 | O-RING | |
| 29 | 29100009581 | HYDRAULIC TANK BODY | |
| 30 | 4041000598 | PLUG | |
| 31 | 4030000240 | O-RING | |
| 32 | 4041000680 | PLUGGING | |
| 33 | 4030000241 | O-RING | |
| 34 | 4015000256 | WASHER | |
| 35 | 4011000106 | BOLT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
