Каталог запасных частей к технике: SDLG LG938L. COUPLING,FUEL PUMP FP 9764-02ZZ

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано B877 (2013) B877 (2017) G9138 (2020) G9190 (2013) L916 (2017) L938F (2016) L948 (2016) L948F (2015) L953N (2017) L956F (2017) L958F (2019) LG6150E LG6210E (2013) LG918 (2008) LG918 (2009) LG933 (2008) LG933 (2018) LG933L (2011) LG936 (2007) LG936 (2007) LG936L (2009) LG936L (2013) LG936L (2017) LG938 (2006) LG938 (2010) LG938F (2015) LG938L (2010) LG944MSK (2015) LG946L (2010) LG952 (2007) LG952 (2009) LG952H (2009) LG952H (2012) LG952N (2016) LG953 (2006) LG953 (2008) LG953 (2009) LG953N (2015) LG955N (2015) LG956 (2005) LG956F (2016) LG956FH (2017) LG956L (2009) LG956L (2015) LG956V (2015) LG958 (2006) LG958L (2009) LG958L (2012) LG958N (2013) LG958N (2015) LG968 (2007) LG968 (2009) LG969 (2007) LG969 (2009) LG969N (2015) LGB680 (2007)

Схема > Не выбрано DIESEL ENGINE ASSY FUEL TANK ASSEMBLY RADIATOR ASSEMBLY GOVERNOR CONTROL SYSTEM AGENCY,APPROVAL AP 9365-01ZZ BLOCK, ENGINE bp 9072zz LEVER ROCKER BP9710ZZ FOLLOWER, CAM BP 9711ZZ COVER, FRONT GEAR BP 9807-01ZZ PLUMBING,CPR COOLANT CC9023-03ZZ COVER, CAM FOLLOWER CM 9016ZZ COMPRESSOR,AIR CP 9002-03ZZ CONNECTION CP9002-1ZZ DAMPER,VIBRATION DA 9208ZZ ACCESSORIES,ELECTRICAL EA 9099ZZ THERMOSTAT EC 9052ZZ ALTERNATOR EE 9314ZZ MOUNTING,ALTERNATOR EH97541ZZ DRIVE,ALTERNATOR EH97543ZZ SENSOR, COO TEMPERATURE EO 9141ZZ ED9071 DOCUMENTATIO,ENG IDT DRIVE, FAN FA 9516ZZ DRIVE, FAN FA 9702ZZ PLUMBING,AIR FUEL CONTRO FE 9701-03ZZ FILTER,FUEL FF 9001-01ZZ FILTER,FUEL FF 9702-04ZZ Housing,Flywheel FH 9020ZZ COUPLING,FUEL PUMP FP 9764-02ZZ PUMP,FUEL INJECTION FP L006ZZ PUMP,LIFT FS 9004-02ZZ PLUMBING,FUEL FT 9786-03ZZ VALVE,FUEL SHUTOFF FV 9420ZZ Flywheel FW 9016ZZ BRACKET,LIFTING LA 9007ZZ Cooler,Engine oil LC 9020ZZ GAUGE,OIL LEVEL LG90235ZZ PUMP,LUBRICATING OIL LP 9064ZZ COVER,CYLINDER BLOCK OB 9702ZZ PAN,OIL OP 9005ZZ MOUNTING,OIL PAN OP 9702ZZ HEAD,CYLINDER PP 9980-01ZZ TURBOCHARGER PP L012ZZ PERFORMANCE PARTS PP L013ZZ MOUNTING,STARTING SM 9712ZZ KIT,ENGINE INSTALLATION SS 9530ZZ KIT,ENGINE INSTALLATION SS 9643ZZ LOCATION,TURBOCHARGER TB 9701-01ZZ LOCATION,TURBOCHARGER TB L004ZZ HOUSING,THERMOSTAT TH 9037ZZ TOOL,SERVICE TO L003ZZ PLUMBING, TURBOCHARGER TP97314ZZ Cover,Valve VC 9023ZZ PULLEY,ACCESSORY PA 9001 VENT,ENGINE COOLANT WH 9128ZZ CONNECTION,WATER INLET WI 9226ZZ CONNECTION WATER INLET WI 9701ZZ PUMP, WATER WP 9617ZZ PAINT SS 9471 TRANSMISSION SYSTEM CASE PARTS INPUT PARTS OUTPUT PARTS CONTROL PARTS SPEED INDICATOR PARTS IDLER PARTS STOP BRAKE STAFF PARTS PRESSURE VALVE PARTS ОIL SUCTION TUBE PARTS ENGINE CONNECTION PARTS ОIL FILLING TUBE PARTS OIL FILTER PARTS CLUTCH PARTS CLUTCH PARTS CLUTCH PARTS PTO1 PARTS P.T.02 PTO2 PARTS P.T.02 CONTROL VALVE PARTS RONT AXLE MAIN DRIVE ASSEMBLY FINAL DRIVE ASSEMBLY REAR AXLE MAIN DRIVE ASSEMBLY DISK BRAKE (371328) AXLE SYSTEM TIRE GB2980-23.5-25 (520101) HYDRAULIC CONTROL ASSEMBLY WORKING PUMP ASSEMBLY LIFTING CYLINDER ASSEMBLY TILT CYLINDER ASSEMBLY HYDRAULIC TANK ASSEMBLY DUMP CYLINDER (371368) LIFT ARM CYLINDER (371368) CONTROL VALVE (331001) WORKING EQUIPMENT STEERING PUMP ASSEMBLY STEERING UNIT ASSEMBLY STEERING CYLINDER ASSEMBLY STEERING CYLINDER (371368) SERVICE BRAKE ASSEMBLY AIR RESERVOIR BRAKE BOOSTER (340201) PARKING BRAKE SYSTEM FRONT FRAME REAR FRAME ASSEMBLY COUNTER WEIGHT CAB ASSEMBLY CAB OPERATE BENCH SEAT ASSEMBLY OPERATE BOX ENGINE HOOD ASSEMBLY LEFT BENCH ASSEMBLY RIGHT BENCH ASSEMBLY LEFT RIGHT LAMP FRAME LEFT RIGHT FENDER BATTERY CASE ASSEMBLY DOWN LADDER ASSEMBLY SIGN AND LOGO WARMING MACHINE AIR CONDITIONER SYSTEM WARMING MACHING ELECTRIC SYSTEM ELECTRIC SYSTEM PANEL ASSEMBLY PANEL ASSEMBLY

1

2

3

4

5

6

7

8

9

10

11

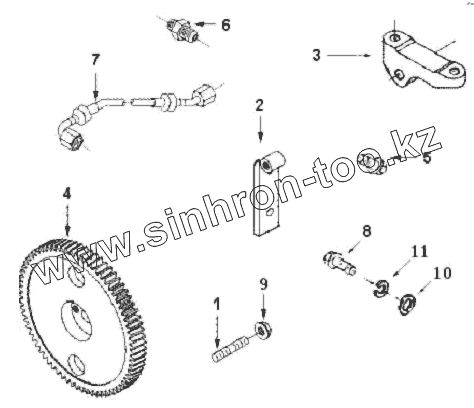

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4110000555172		STUD
2	4110000555161		BRACE, FUEL PUMP
3	4110000555160		SUPPORT, FUEL PUMP
4	4110000555159		GEAR, FUEL PUMP
5	4110000331006		BOLT
6	4110000555087		CONNECTOR, MALE
7	4110000555048		HOSE, FLEXIBLE
8	4110000555108		SCREW, HEXAGON HEAD CAP
9	4110000081146		NUT, HEXAGON FRANGE
10	4110000555129		WASHER, PLAIN
11	4110000555014		WASHER, SPRING

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
