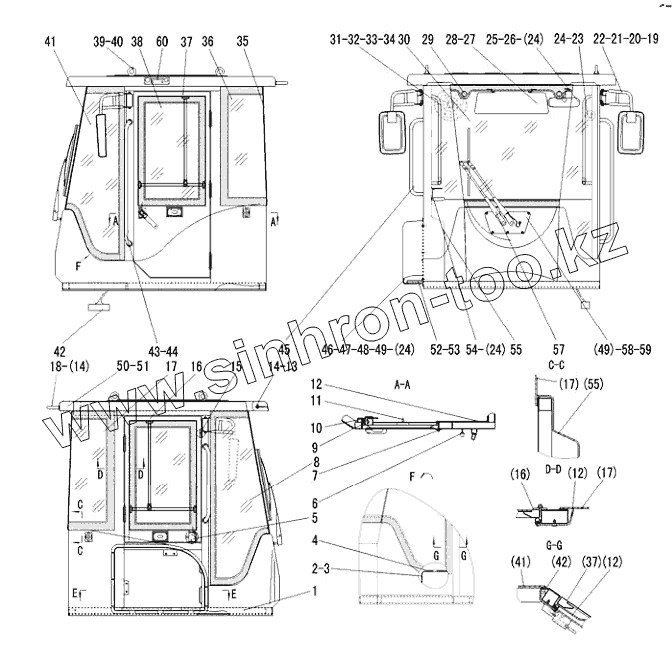

Каталог запасных частей к технике: SDLG LG938L. CAB

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
12
12
13
14
14
15
16
16
17
17
17
18
19
20
21
22
23
24
24
24
24
25
26
27
28
29
30
31
32
33
34
35
36
37
37
38
39
40
41
41
42
42
43
44
45
46
47
48
49
49
50
51
52
53
54
55
55
57
58
59
60
Позиция на иллюстрации Заводской номер детали Название детали
1 4190000941 CAB GROUP LG956
2 4190000758 BLOW CAN
3 29290009181 BLOW CAN CAP
4 29290008871 LOWER COVER PLATE ON LEFT FRONT
5 4190000604 RIGHT LOCK
6 4190000596 CHECK OF UPPER GATE
7 4030000535 OIL CUP
8 4190000945 RIGHT FRONT GLASS
9 4190000966 RUBBER SPACER
10 4190000605 LEFT LOCK
11 4190000595 COUNTER LOCK
12 4190000942 BASIC TRIM GROUP
13 4190000968 TRANSTION PLATE OF LIGHT
14 4011000474 BOLT
15 4190000967 RUBBER SPACER
16 4190000951 RIGHT DOOR GUROUP
17 4190000948 RIGHT REAR GLASS
18 4190000953 REAR ARM REST
19 4015000072 WASHER
20 4015000036 WASHER
21 4011000105 BOLT
22 4190000575 BACK UP GLASS GROUP
23 4190000581 CLOTHING HOOK
24 4014000037 SCREW
25 4190000577 BACK MIRROR IN HOUSE
26 4014000046 SCREW
27 4014000077 SCREW
28 4190000585 SHADOW SHIELD
29 4190000952 GLASS SUSPENSION CENTER FIXED GROUP
30 4190000943 FRONT WINDSHIELD
31 4190000608 ELECTRIC FAN
32 4014000063 SCREW
33 4015000207 WASHER
34 4015000035 WASHER
35 4190000949 REAR GLASS
36 4190000947 LEFT REAR GLASS
37 4190000950 LEFT DOOR GROUP
38 4190000946 DOOR GLASS
39 4014000028 SCREW
40 4190000956 SEAL WASHER
41 4190000944 LEFT FRONT GLASS
42 4190000920 LG956 CAB WIRING
43 4190000965 LEFT ARM REST
44 4014000055 SCREW GB70.1-M12x30EpZn-8.8
45 4190000957 RIGHT ARM REST
46 29290009141 BOILER'S HOOD
47 29290009151 AIR-INLET GRILLE
48 29290009171 SPONGE
49 4011000680 BOLT
50 4190000958 RUBBER COVR-30
51 4190000959 RUBBER COVR-10
52 4190000960 SEAL OF TUBE SPONGE
53 4190000961 LINEAR SEALING SPONGE
54 4190000962 CUP SEAT
55 29290008941 BOILER'S HOOD P
56 4190000578 DOME LAMP
57 4190000599 WIPER BUTTON
58 4190000963 WIPER BUTTON CAP
59 4190000964 WIPER BUTTON GASKET
60 29370012991 RADIO CASSETTE PLAYER ASSEMBLY
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
