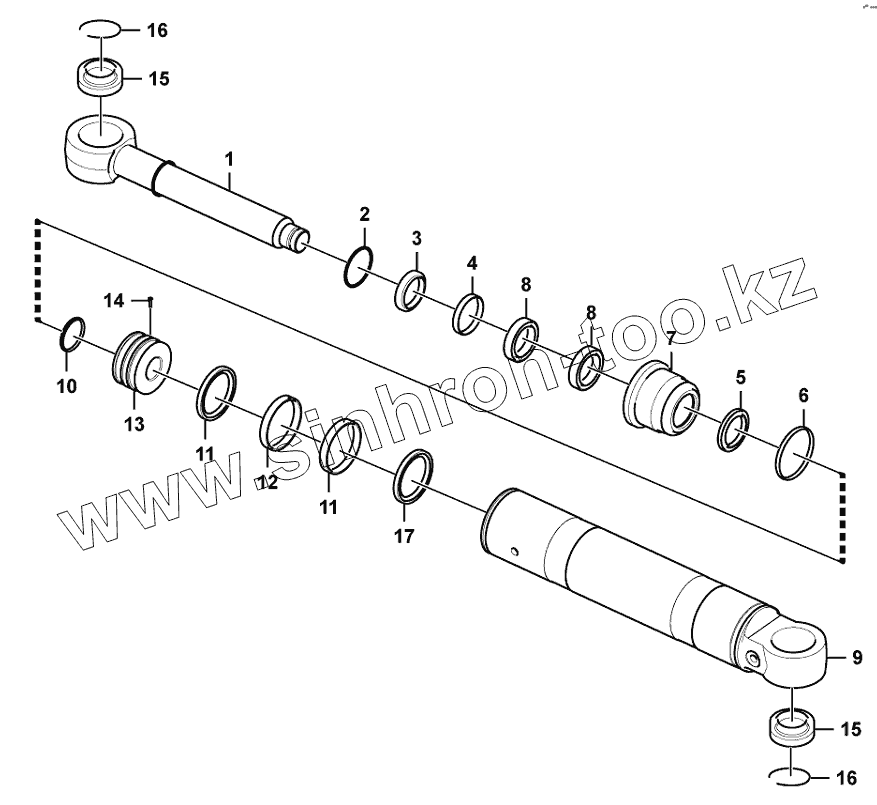

Каталог запасных частей к технике: SDLG LG938F. Steering cylinder assembly (371368)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
8
9
10
11
11
12
13
14
15
15
16
16
17
Позиция на иллюстрации Заводской номер детали Название детали
1 4120001004113 PISTON ROD
2 4120001004101 SEALING MEMBER AGGREGATE
3 4120001004101 SEALING MEMBER AGGREGATE
4 4120001004101 SEALING MEMBER AGGREGATE
5 4120001004101 SEALING MEMBER AGGREGATE
6 4120001004101 SEALING MEMBER AGGREGATE
7 4120001004110 CYLINDER COVER
8 4120001004101 SEALING MEMBER AGGREGATE
9 4120001004104 CYLINDER BODY
10 4120001004101 SEALING MEMBER AGGREGATE
11 4120001004101 SEALING MEMBER AGGREGATE
12 4120001004101 SEALING MEMBER AGGREGATE
13 4120001004109 PISTON
14 4120003687007 Screw
15 4021000199 SPHERICAL PLAIN BEARING
16 4015000261 CHECK RING
17 4120001004101 SEALING MEMBER AGGREGATE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
