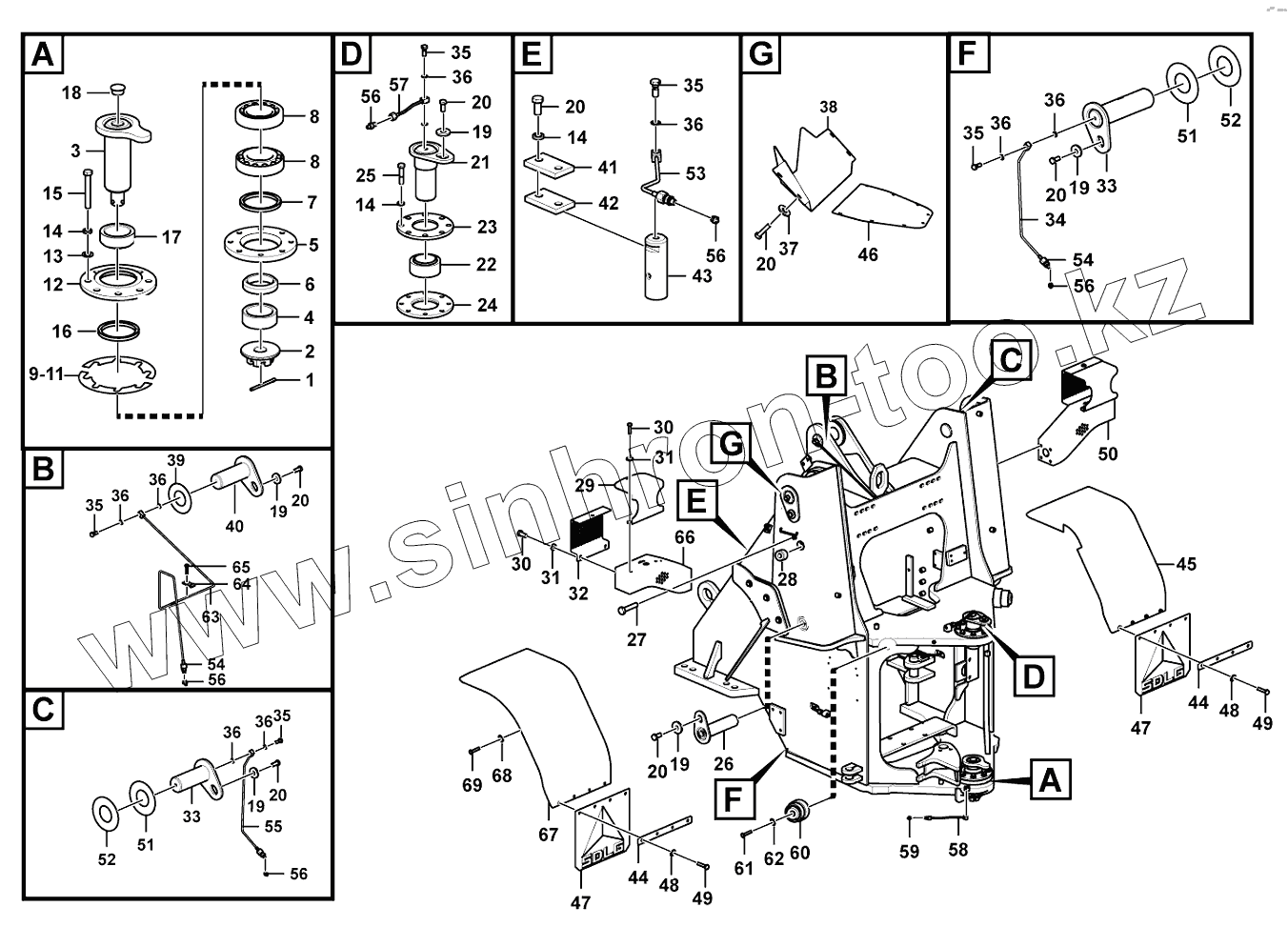

Каталог запасных частей к технике: SDLG LG938F. Front frame accessory
1
2
3
4
5
6
7
8
8
9
11
12
13
14
14
14
15
16
17
18
19
19
19
19
19
20
20
20
20
20
20
20
21
22
23
24
25
26
27
28
29
30
30
31
31
32
33
33
34
35
35
35
35
35
36
36
36
36
36
36
36
36
37
38
39
40
41
42
43
44
44
45
46
47
47
48
48
49
49
50
51
51
52
52
53
54
54
55
56
56
56
56
56
57
58
59
60
61
62
63
64
65
66
67
68
69
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4016000043 | SPLIT PIN GB91-8x80EpZn | |
| 2 | 29250008711 | Nut | |
| 3 | 29250015711 | Pin | |
| 4 | 29250011291 | Sleeve | |
| 5 | 29250011261 | Flange | |
| 6 | 29250011281 | Sleeve | |
| 7 | 29250011761 | Sleeve | |
| 8 | 4021000134 | BEARING GB297-32212 | |
| 9 | 29250011321 | Shim | |
| 10 | 29250011331 | Shim | |
| 11 | 29250011341 | Shim | |
| 12 | 29250011301 | Flange | |
| 13 | 4015000428 | Washer | |
| 14 | 4015000026 | WASHER | |
| 15 | 4011001426 | Bolt | |
| 16 | 4043000055 | PUSTRING | |
| 17 | 29250011271 | Sleeve | |
| 18 | 29270009421 | Plastic plug | |
| 19 | 4040000050 | Washer | |
| 20 | 4011001241 | Screw | |
| 21 | 29250004041 | UP ARTICULATION PIN | |
| 22 | 4021000042 | BEARING | |
| 23 | 29250004011 | DISC | |
| 24 | 29250004021 | DISC | |
| 25 | 4011001281 | Screw | |
| 26 | 4043000205 | PIN | |
| 27 | 4011001240 | Bolt | |
| 28 | 29250001351 | RUBBER SLEEVE | |
| 29 | 29250012661 | Protecting plate | |
| 30 | 4011001247 | Screw | |
| 31 | 4015000425 | Washer | |
| 32 | 29250011021 | Protecting plate | |
| 33 | 29250012701 | Pin | |
| 34 | 29250014541 | Lubricating pipe | |
| 35 | 29250000291 | BOLT | |
| 36 | 29250000301 | WASHER | |
| 37 | 4015000427 | Washer | |
| 38 | 29250016571 | Cover plate | |
| 39 | 4043000151 | SPACER | |
| 40 | 29250012791 | Pin | |
| 41 | 29250001121 | PLATE | |
| 42 | 29250001111 | PLATE | |
| 43 | 29250004081 | FRONT PIN OF STEERING CYLINDER | |
| 44 | 29250013831 | Plate | |
| 45 | 29250013851 | Front mudguard | |
| 46 | 29250016511 | Cover plate | |
| 47 | 29250013821 | Mudflap | |
| 48 | 4015000426 | Washer | |
| 49 | 4011001248 | Screw | |
| 50 | 29250012941 | Lantern bracket | |
| 51 | 4043000197 | WASHER | |
| 52 | 4043000198 | WASHER | |
| 53 | 29250014462 | Lubricating pipe | |
| 54 | 29250014121 | Nipple | |
| 55 | 29250014551 | Lubricating pipe | |
| 56 | 4030000065 | GREASE NIPPLE | |
| 57 | 29250014591 | Lubricating pipe | |
| 58 | 29250014601 | Lubricating pipe | |
| 59 | 4030000101 | FITING | |
| 60 | 4190002437 | Rubber damper | |
| 61 | 4011001381 | Bolt | |
| 62 | 4015000433 | Washer | |
| 63 | 29250014452 | Lubricating pipe | |
| 64 | 29250013741 | Plate | |
| 65 | 4011001297 | Screw | |
| 66 | 29250012931 | Lantern bracket | |
| 67 | 29250013801 | Mudguard | |
| 68 | 29330059111 | Washer | |
| 69 | 4011001250 | Screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
