Каталог запасных частей к технике: SDLG LG938F. Attachment bracket

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано B877 (2013) B877 (2017) G9138 (2020) G9190 (2013) L916 (2017) L938F (2016) L948 (2016) L948F (2015) L953N (2017) L956F (2017) L958F (2019) LG6150E LG6210E (2013) LG918 (2008) LG918 (2009) LG933 (2008) LG933 (2018) LG933L (2011) LG936 (2007) LG936 (2007) LG936L (2009) LG936L (2013) LG936L (2017) LG938 (2006) LG938 (2010) LG938F (2015) LG938L (2010) LG944MSK (2015) LG946L (2010) LG952 (2007) LG952 (2009) LG952H (2009) LG952H (2012) LG952N (2016) LG953 (2006) LG953 (2008) LG953 (2009) LG953N (2015) LG955N (2015) LG956 (2005) LG956F (2016) LG956FH (2017) LG956L (2009) LG956L (2015) LG956V (2015) LG958 (2006) LG958L (2009) LG958L (2012) LG958N (2013) LG958N (2015) LG968 (2007) LG968 (2009) LG969 (2007) LG969 (2009) LG969N (2015) LGB680 (2007)

Схема > Не выбрано Engine asembly Low exhaust emission assembly Air intake system Def system Engine mounting assemly Oil drain assembly Fuel supply system Fuel tank system Fuel tank assembly Expansion tank assembly Radiator hose assembly Radiator assembly Fan hydraulic motor assembly Radiator pump assembly Radiator accessories PGM37 Hydraulic motor Transmission Engine connect assembly 4644 130 296 Torque converter 4166 030 195 Input equipment 4644 102 134 Transmission assembly 4644 101 190 Plug 4644 101 497 Middle shaft 4644 108 232 Clutch 4644 151 238 Clutch 4644 151 500 Clutch 4644 152 233 Clutch 4644 152 556 Clutch 4644 153 241 Clutch 4644 153 512 Input equipment 4644 103 107 Output flange 4644 103 467 Input equipment 4644 109 040 Input equipment 4644 109 438 Input equipment 4644 154 080 Input equipment 4644 154 476 Input equipment 4644 155 031 Input equipment 4644 155 420 Gearshift system 4644 106 325 Gearshift system 4644 159 347 Input equipment 4644 120 213 Filter 4644 138 015 Plug 4644 125 202 Plug 4644 125 407 Plug 4644 107 006 Plug 4644 107 471 Input hose joint 4644 131 082 Plug 4644 131 419 Hose 4644 121 226 Loose parts 4644 183 113 Front axle Front axle Brake caliper assembly (371104) Final drive Hub reduction Propeller shaft Rear axle Rear axle Final drive Hub reduction Hydraulic oil tank system Hydraulic oil tank assembly Hydraulic control assembly Control valve assembly (331005) The 3rd function control Control lever (331001) Lifting cylinder assembly Lifting cylinder (371368) Lifting cylinder (371401) Lifting cylinder (371368) Cylinder assembly Tilt cylinder (371368) Quick-change equipment Attachment bracket Quick-change equipment hydraulic system Hydraulic cylinder assembly (3713CH) Electric system Linkage structure Lifting frame work parts Steering pump assembly Steering pump assembly (370142) Steering pump assembly (120104) Steering gear assembly Steering column assembly Steering cylinder assembly Steering cylinder (3713ch) Steering cylinder assembly (371368) Steering cylinder assembly (371401) Travel brake system Parking brake assembly Brake cylinder assembly Front frame Front frame accessory Rear fram Rear frame accessories Counter weight Battery retainer assembly Cab assembly Bench Cab Wiper arm Door Washer system Protecting cover Trim Driver seat system Driver seat LG06A (350201) Cab accessory Air distribution system Operate box assembly Bonnet Bonnet Cover system Ladder Platform Ladder Platform Lamp shroud assembly Battery box Ladder Cover Decal set Air conditioning unit Air conditioning unit Evaporator assembly (330112) Evaporator assembly (410706) Condenser assembly (330112) Condenser (410706) Electrical source assembly Front frame electric assembly Rear frame electric assembly Cab electric assembly Working lamp assembly (3713EE) Radio Fuse and relay unit Engine electric assembly Engine electric assembly Engine hood electric assembly Bucket

1

2

3

4

5

6

6

7

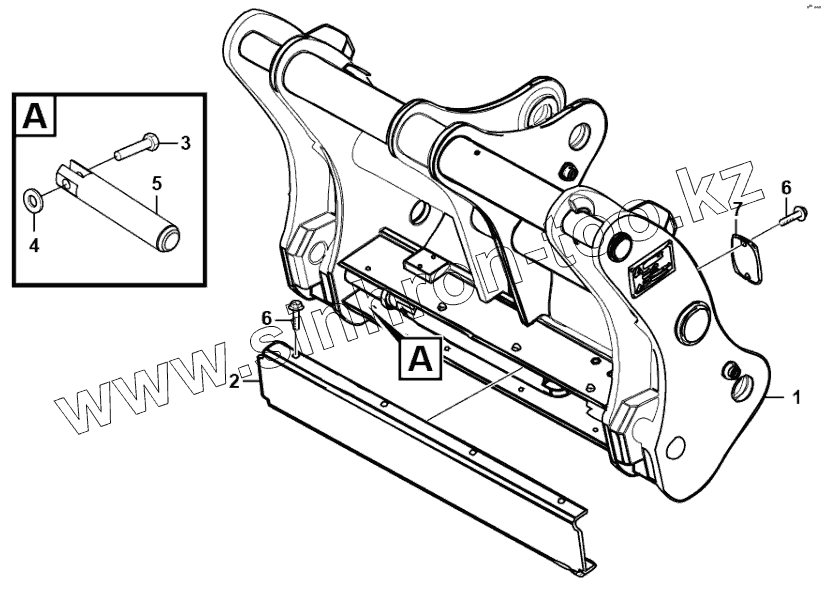

Позиция на иллюстрации	Заводской номер детали		Название детали
1	29180013411		Bracket
2	29180013461		Cover plate
3	29180011741		Pin
4	4015000128		Retaining ring
5	29180011951		Pin
6	4011001296		Screw
7	29180009311		Plate

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
