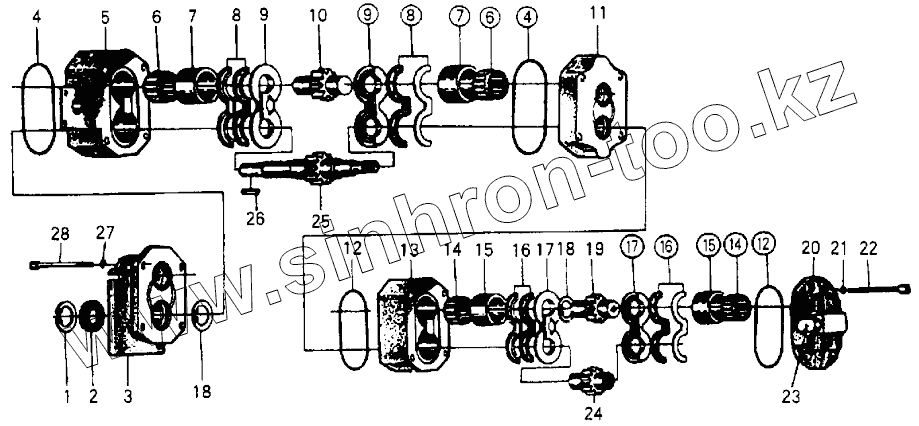

Каталог запасных частей к технике: SDLG LG938. TANDEM GEAR PUMP
1
2
3
4
4
5
6
6
7
7
8
8
9
9
10
11
12
12
13
14
14
15
15
16
16
17
17
18
18
19
20
21
22
23
24
25
26
27
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | PLUG | PLUG | |
| 2 | SEAL | SEAL | |
| 3 | FRONTCOVER | FRONT COVER | |
| 4 | SEALING | SEALING | |
| 5 | PUMPBLOCK | PUMP BLOCK | |
| 6 | BEARING | BEARING | |
| 7 | SLEEVE | SLEEVE | |
| 8 | SEALING | SEALING | |
| 9 | SIDEPLATE | SIDE PLATE | |
| 10 | GEARSHAFT | DRIVE GEAR SHAFT | |
| 11 | MIDDLEPART | MIDDLE PART | |
| 12 | PLUG | PLUG | |
| 13 | PUMPBLOCK | PUMP BLOCK | |
| 14 | BEARING | BEARING | |
| 15 | SHAFTSLEEVE | SHAFT SLEEVE | |
| 16 | SEALING | SEALING | |
| 17 | SIDEPLATE | SIDE PLATE | |
| 18 | PLUG | PLUG | |
| 19 | DRIVENGEAR | DRIVEN GEAR | |
| 20 | REARCOVER | REAR COVER | |
| 21 | WASHER | WASHER | |
| 22 | BOLTM14 | BOLT M14 | |
| 23 | VALVE | RELIEF VALVE | |
| 24 | DRIVEGEAR | DRIVE GEAR | |
| 25 | GEARSHAFT | DRIVE GEAR SHAFT | |
| 26 | FLATKEY | FLAT KEY | |
| 27 | WASHER | WASHER | |
| 28 | RING | RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
