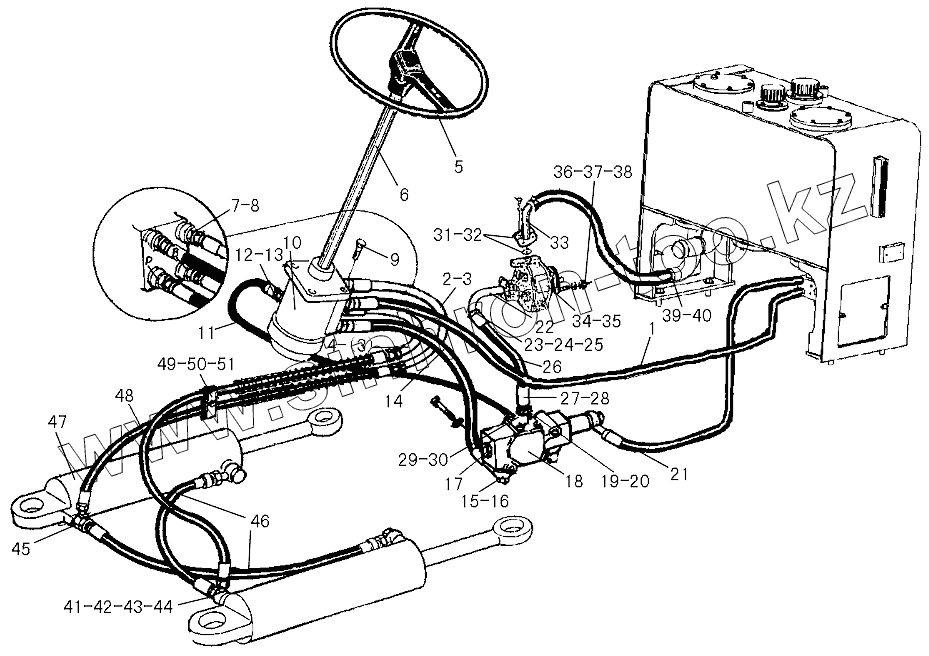

Каталог запасных частей к технике: SDLG LG938. STEERING SYSTEM

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
Позиция на иллюстрации Заводской номер детали Название детали
1 4041000516 PIPE
2 2920000402 OIL OUTLET TUBE OF STEERING GEAR
3 4030000501 O-RING
4 2920000403 OIL OUTLET TUBE OF STEERING GEAR
5 4120000360 STEERING WHEEL
6 4120000019 STEERING POLE
7 4041000564 JOINT
8 4041000783 O-RING
9 4011000475 BOLT
10 4120001317 STEERING GEAR
11 2920000778 FEEDBACK PIPE OF PRIORITY VALVE
12 4041000131 JOINT
13 4041000784 O-RING
14 4041000794 PIPE
15 4041000187 JOINT
16 4041000771 O-RING
17 4011000302 BOLT
18 4120000709 PRIORITY VALVE
19 4041000188 JOINT
20 4041000779 O-RING
21 4041000514 PIPE
22 2919000782 OIL OUTLET TUBE OF STEERING PUMP
23 4011000475 BOLT
24 4041000026 FLANGE
25 4030000026 O-RING
26 2919000783 PIPE OF PRIORITY VALVE
27 2919000414 INLET TUBE OF PRIORITY VALVE
28 4030000241 O-RING
29 4041000774 PLUG
30 4041000767 O-RING
31 4030000028 O-RING
32 4041000056 FLANGE
33 2919000784 INLET TUBE OF STEERING PUMP
34 4120001060 STEERING PUMP
35 2919000781 SEALING PLATE
36 4012000025 DOUBLE-SCREW BOLT
37 4015000181 WASHER
38 4013000016 NUT
39 4030000425 INLET PIPE
40 4017000007 CLAMP
41 2921000408 TUBE
42 4030000275 O-RING
43 4011000481 BOLT
44 4011000277 BOLT
45 2921000409 TUBE
46 4041000563 PIPE
47 4120001004 STEERING CYLINDER
48 2921000766 OIL INLET PIPE OF STEERING CYLINDER
49 2921000406 PERMANENT SEAT
50 2921000407 RUBBER PLATE
51 4011000476 BOLT
