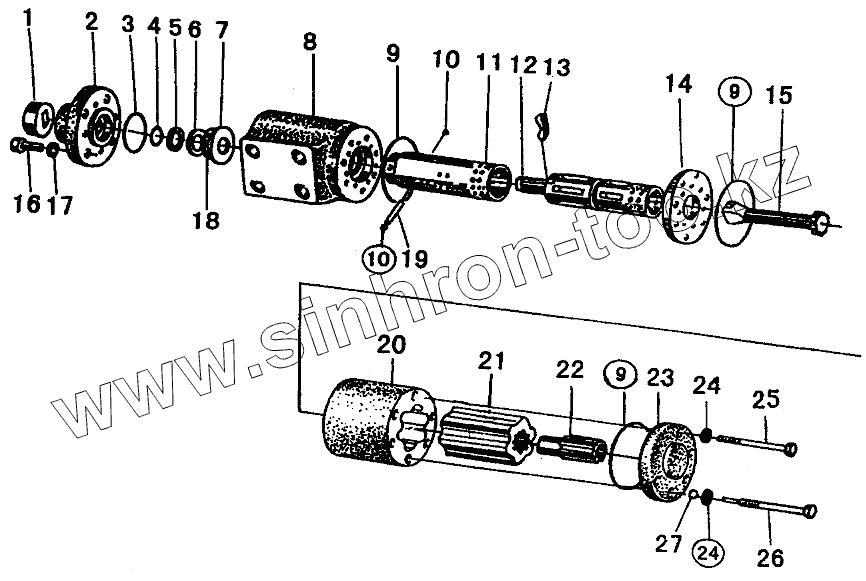

Каталог запасных частей к технике: SDLG LG938. STEERING GEAR
1
2
3
4
5
6
7
8
9
9
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | CONNECTINGBLOCKS | CONNECTING BLOCKS MODULE | |
| 2 | FRONTCOVER | FRONT COVER | |
| 3 | O-RING | O-RING | |
| 4 | O-RING | O-RING | |
| 5 | X-RING | X-RING | |
| 6 | GASKET | GASKET | |
| 7 | GASKET | GASKET | |
| 8 | VALVEBLOCK | VALVE BLOCK | |
| 9 | O-RING | O-RING | |
| 10 | GASKET | GASKET | |
| 11 | VALVESLEEVE | VALVE SLEEVE | |
| 12 | VALVESTEM | VALVE STEM | |
| 13 | SPRINGSLIP | SPRING SLIP | |
| 14 | PLATE | ISOLATING PLATE | |
| 15 | COUPLINGSHAFT | COUPLING SHAFT | |
| 16 | SCREW | SCREW | |
| 17 | WASHER | WASHER | |
| 18 | BEARING | BEARING | |
| 19 | CENTERPIN | CENTER PIN | |
| 20 | STATOR | STATOR MODULE | |
| 21 | ROTOR | ROTOR | |
| 22 | STOPPER | STOPPER | |
| 23 | REARCOVER | REAR COVER | |
| 24 | SEALRING | SEAL RING | |
| 25 | RING | RING | |
| 26 | CAGINGBOLT | CAGING BOLT MODULE | |
| 27 | STEELBALL | STEEL BALL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
