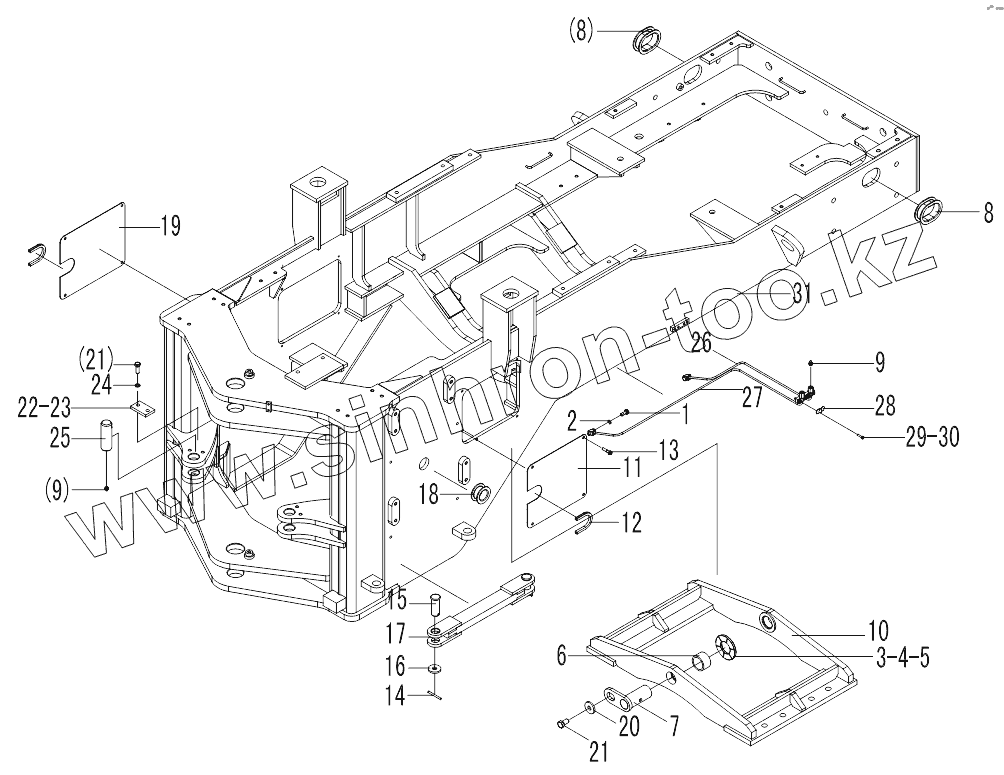

Каталог запасных частей к технике: SDLG LG938. REAR FRAME
1
2
3
4
5
5
6
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
28
29
30
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2925000029 | OIL BOLT | |
| 2 | 2925000030 | SPACER | |
| 3 | 2927000105 | ADJUST SPACER | |
| 4 | 2927000106 | ADJUST SPACER | |
| 5 | 2927000107 | ADJUST SPACER | |
| 6 | 2927000783 | BUSH | |
| 7 | 4043000202 | PIN | |
| 8 | 2927000003 | RUBBER SLEEVE | |
| 9 | 4030000065 | GREASE NIPPLE | |
| 10 | 2927000784 | OSCILLATING FRAME | |
| 11 | 2927000756 | HOOD | |
| 12 | 2927000779 | RUBBER BUSH | |
| 13 | 4011000461 | BOLT | |
| 14 | 4016000040 | SPLINT PIN | |
| 15 | 4016000136 | PIN | |
| 16 | 4015000119 | WASHER | |
| 17 | 2927000793 | MOUNT BAR | |
| 18 | 2927000755 | RUBBER SLEEVE | |
| 19 | 2927000763 | HOOD | |
| 20 | 4040000001 | WASHER | |
| 21 | 4011000197 | BOLT | |
| 22 | 2925000111 | PLATE | |
| 23 | 2925000112 | PLATE | |
| 24 | 4015000026 | WASHER | |
| 25 | 2927000797 | REAR PIN OF STEERING CYLINDER | |
| 26 | 2927000775 | REAR OIL TUBE | |
| 27 | 2927000777 | FRONT OIL TUBE | |
| 28 | 2925000031 | PIPE CLIP | |
| 29 | 4014000024 | SCREW | |
| 30 | 4015000035 | WASHER | |
| 31 | 2926000837 | REAR FRAME |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
