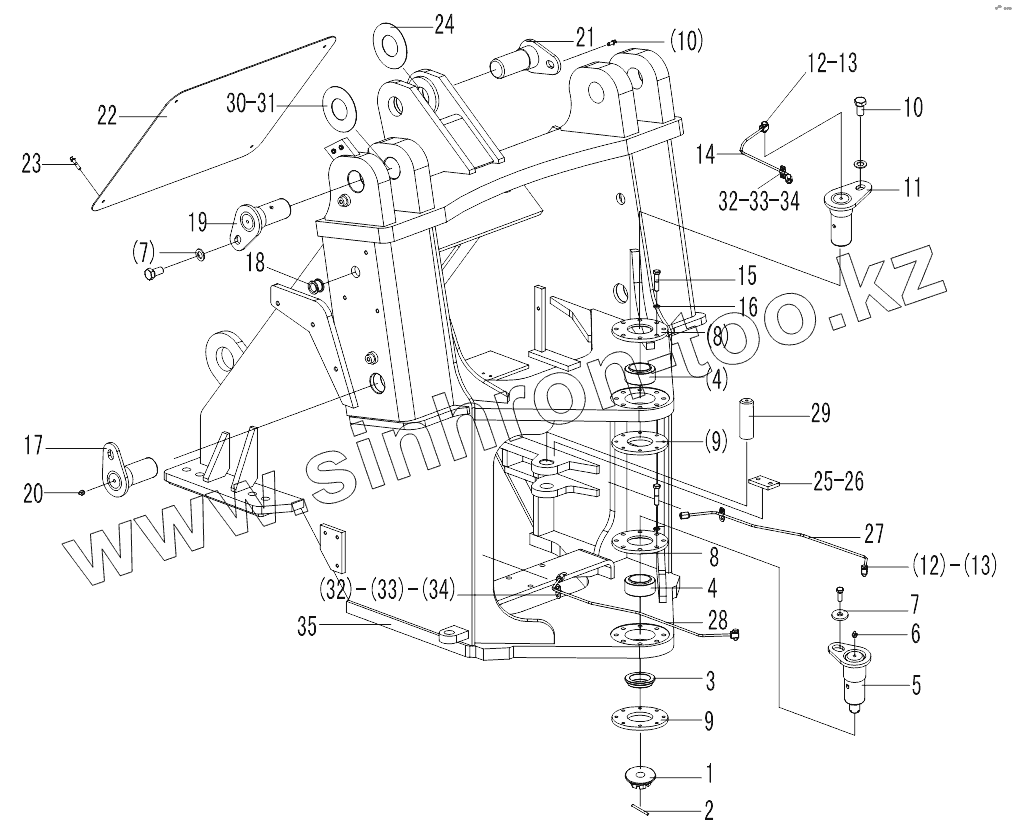

Каталог запасных частей к технике: SDLG LG938. FRONT FRAME
1
2
3
4
4
5
6
7
7
8
8
9
9
10
10
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
33
33
34
34
35
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2925000106 | SLOTTED NUT | |
| 2 | 4016000113 | SPLIT PIN | |
| 3 | 2925000759 | BUSH | |
| 4 | 4021000042 | BEARING | |
| 5 | 2925000403 | DOWN ARTICULATION PIN | |
| 6 | 4030000199 | GREASE NIPPLE | |
| 7 | 4040000001 | WASHER | |
| 8 | 2925000401 | DISC | |
| 9 | 2925000402 | DISC | |
| 10 | 4011000197 | BOLT | |
| 11 | 2925000404 | UP ARTICULATION PIN | |
| 12 | 2925000029 | OIL BOLT | |
| 13 | 2925000030 | SPACER | |
| 14 | 2925000409 | OIL TUBE | |
| 15 | 4011000186 | BOLT | |
| 16 | 4015000026 | WASHER | |
| 17 | 4043000205 | PIN | |
| 18 | 2925000135 | RUBBER SLEEVE | |
| 19 | 4043000204 | PIN | |
| 20 | 4030000065 | GREASE NIPPLE | |
| 21 | 4043000203 | PIN | |
| 22 | 2925000417 | FRONT HOOD | |
| 23 | 4011000461 | BOLT | |
| 24 | 4043000151 | SPACER | |
| 25 | 2925000111 | PLATE | |
| 26 | 2925000112 | PLATE | |
| 27 | 2925000406 | OIL TUBE | |
| 28 | 2925000407 | OIL TUBE | |
| 29 | 2925000408 | FRONT PIN OF STEERING CYLINDER | |
| 30 | 4043000197 | WASHER | |
| 31 | 4043000198 | WASHER | |
| 32 | 4014000024 | SCREW | |
| 33 | 4015000035 | WASHER | |
| 34 | 2925000031 | PIPE CLIP | |
| 35 | 2924000856 | FRONT FRAME |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
