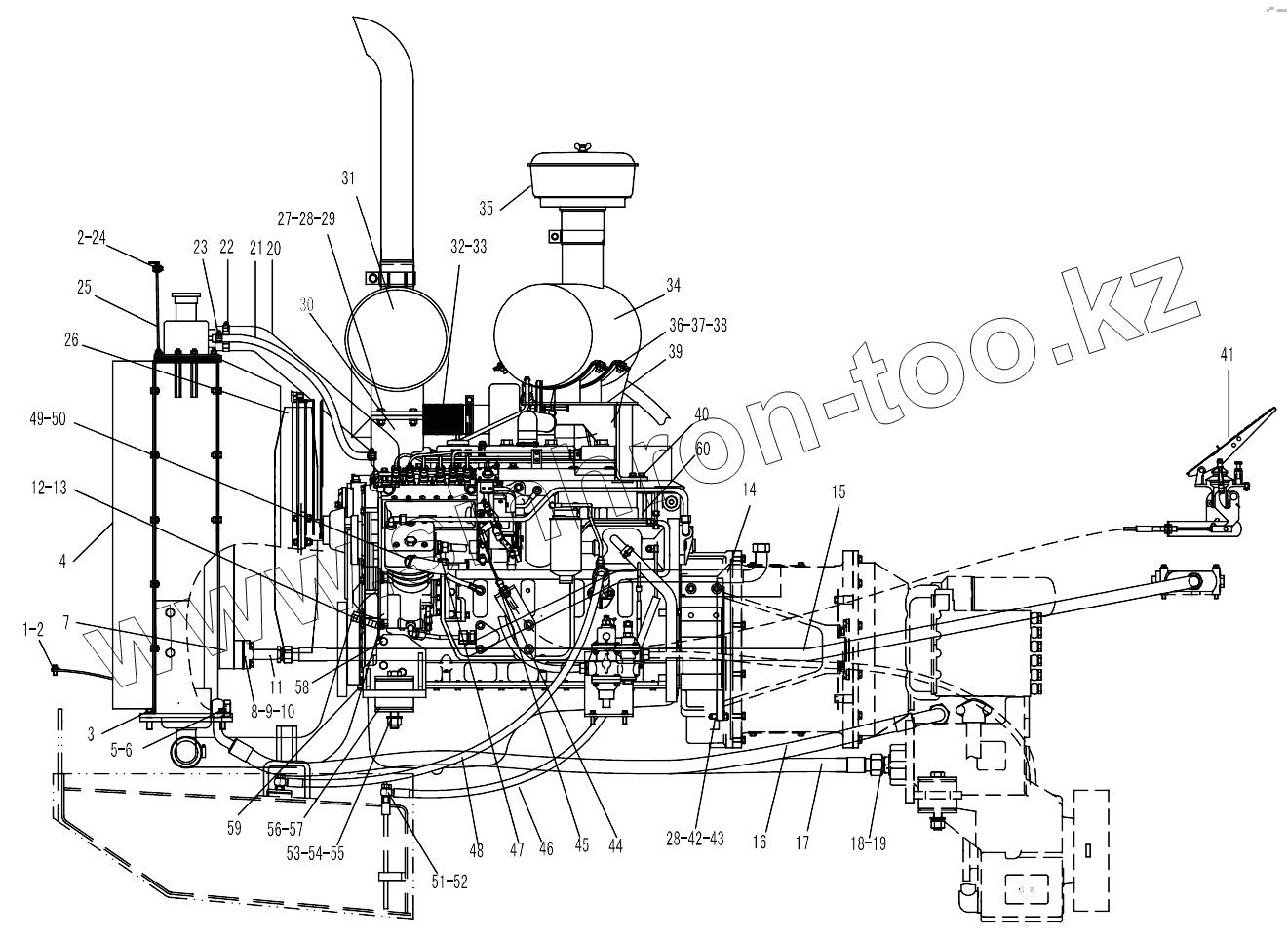

Каталог запасных частей к технике: SDLG LG938. DIESEL ENGINE SYSTEM
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2903000780 | PRESS PLATE | |
| 2 | 4011000461 | BOLT | |
| 3 | 4011000091 | BOLT | |
| 4 | 4190000459 | RADIATOR | |
| 5 | 4011000399 | BOLT | |
| 6 | 4015000233 | WASHER | |
| 7 | 4120001061 | OIL COOLER | |
| 8 | 4030000279 | O-RING | |
| 9 | 4011000475 | BOLT | |
| 10 | 4041000137 | FLANGE | |
| 11 | 2903000781 | TRATNSITION STEEL PIPE | |
| 12 | 2903000789 | HOSE | |
| 13 | 4017000014 | CLAMP | |
| 14 | 4041000725 | SOFT HOSE | |
| 15 | 4041000713 | SOFT HOSE | |
| 16 | 2903000790 | TO COOLER OIL PIPE | |
| 17 | 2903000791 | TO TORQUE CONVERTER OIL PIPE | |
| 18 | 2903000793 | CONNECTOR | |
| 19 | 4015000073 | WASHER | |
| 20 | 2903000784 | HOSE | |
| 21 | 4120000388 | HOSE | |
| 22 | 4017000018 | CLAMP | |
| 23 | 4017000015 | CLAMP COLLAR | |
| 24 | 2903000786 | PRESS PLATE | |
| 25 | 2903000785 | RUBBER PLATE | |
| 26 | 4190000138 | FAN | |
| 27 | 4011000085 | BOLT | |
| 28 | 4013000007 | NUT | |
| 29 | 4015000162 | Washer | |
| 30 | 2901000935 | FRAME | |
| 31 | 4110000187 | DISSIPATIVE MUFFLER | |
| 32 | 2901000936 | ACCORDION PIPE | |
| 33 | 4110000192 | V-ANCHOR EAR | |
| 34 | 4110000267 | AIR FILLTER | |
| 35 | 4110000181 | FILLTER | |
| 36 | 4011000102 | BOLT | |
| 37 | 4013000033 | NUT | |
| 38 | 4015000072 | WASHER | |
| 39 | 2901000950 | FRAME | |
| 40 | 4011000474 | BOLT | |
| 41 | 2010900277 | GOVERNOR CONTROL SYSTEM | |
| 42 | 4015000025 | Washer | |
| 43 | 2901000971 | BOLT | |
| 44 | 2901000954 | FRAME | |
| 45 | 2901000955 | STICK | |
| 46 | 2901000956 | OIL-RETURN PIPE | |
| 47 | 2901000957 | CONNECTOR | |
| 48 | 2901000958 | OIL-INPUT PIPE | |
| 49 | 4120001078 | HOSE | |
| 50 | 4017000008 | CLAMP | |
| 51 | 4011000641 | BOLT | |
| 52 | 4015000231 | WASHER | |
| 53 | 4011000236 | BOLT | |
| 54 | 4013000020 | NUT | |
| 55 | 4015000176 | WASHER | |
| 56 | 2905000010 | SHOCK MOUNT | |
| 57 | 2905000012 | WASHER | |
| 58 | 2901000972 | WATER, OILTEMPERATURE INDICATOR | |
| 59 | 4011000090 | BOLT | |
| 60 | 4110000179 | DIESEL ENGINE SYSTEM |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
