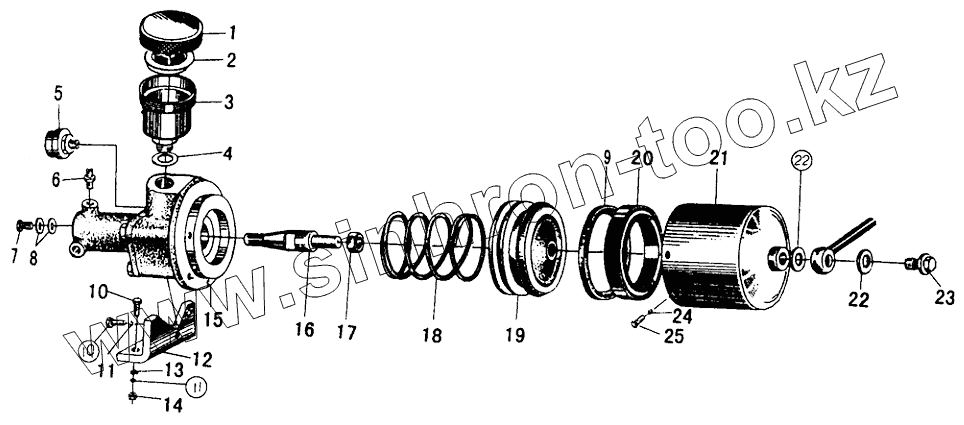

Каталог запасных частей к технике: SDLG LG938. BRAKE BOOSTER
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | OILRESERVOIRCOVER | OIL RESERVOIR COVER | |
| 2 | FILTERSLEEVE | FILTER SLEEVE | |
| 3 | OILRESERVOIR | OIL RESERVOIR | |
| 4 | O-RING | O-RING | |
| 5 | AIRBLEEDER | AIR BLEEDER | |
| 6 | CONNECTOR | CONNECTOR | |
| 7 | FITTING | FITTING | |
| 8 | WASHER | WASHER | |
| 9 | SEALINGWASHER | SEALING WASHER | |
| 10 | RING | RING | |
| 11 | LOCKWASHER | LOCK WASHER | |
| 12 | BRACKET | BRACKET | |
| 13 | WASHER | WASHER | |
| 14 | NUT | NUT | |
| 15 | BRAKEMAINPUMP | BRAKE MAIN PUMP | |
| 16 | PUSHROD | PUSH ROD | |
| 17 | NUT | NUT | |
| 18 | SPRING | SPRING | |
| 19 | PISTON | PISTON | |
| 20 | YX-RINGSEAL | YX-RING SEAL | |
| 21 | BOOSTINGTANK | BOOSTING TANK | |
| 22 | WASHER | WASHER | |
| 23 | RING | RING | |
| 24 | WASHER | WASHER | |
| 25 | RING | RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
