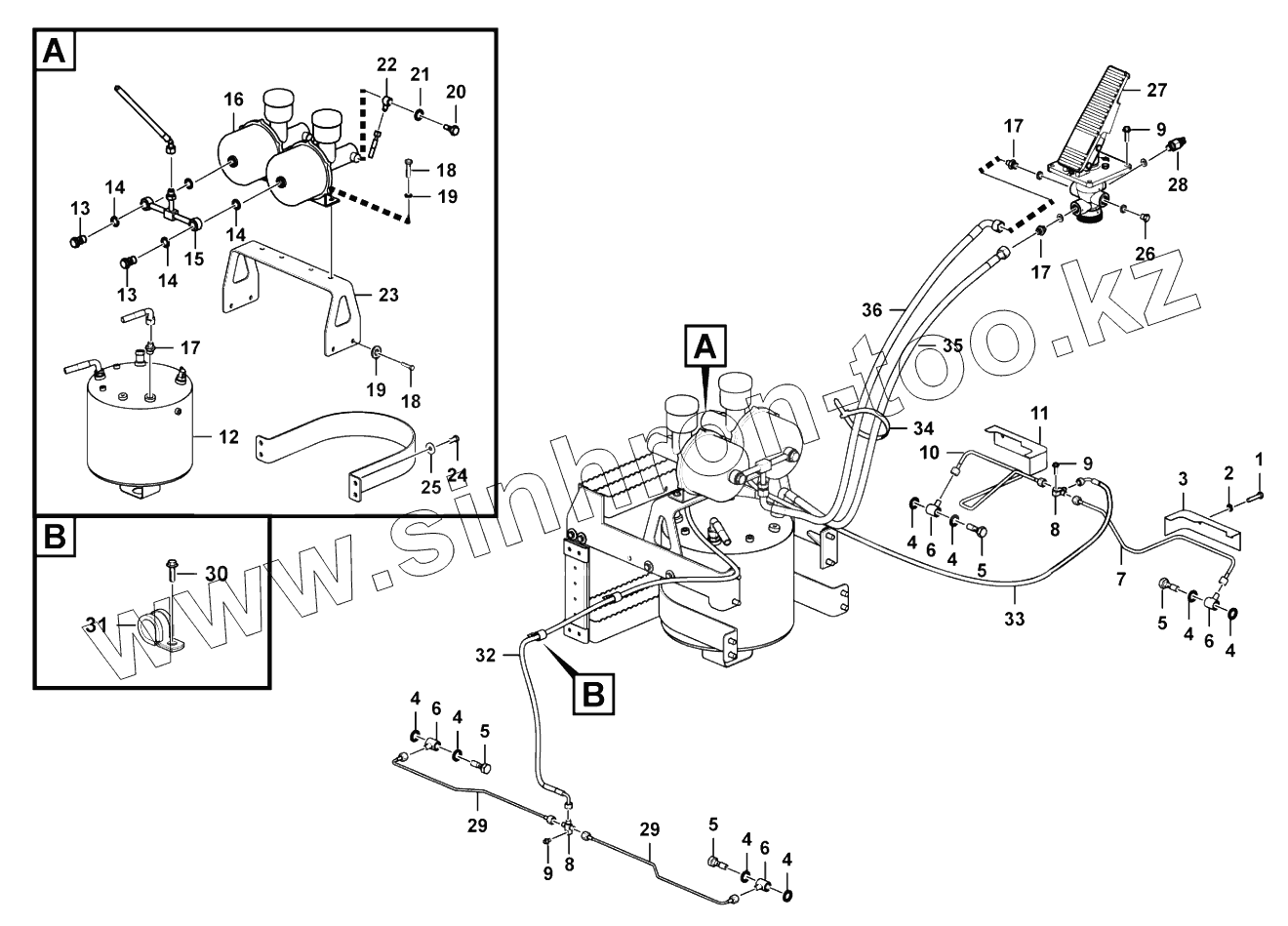

Каталог запасных частей к технике: SDLG LG936L. Travel brake
1
2
3
4
4
4
4
4
4
4
4
5
5
5
5
6
6
6
6
7
8
8
9
9
9
10
11
12
13
13
14
14
14
15
16
17
17
17
18
18
19
19
20
21
22
23
24
25
26
27
28
29
29
30
31
32
33
34
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4011000180 | Screw | |
| 2 | 4015000072 | WASHER | |
| 3 | 29220013761 | Protecting plate | |
| 4 | 4030000552 | O-Ring | |
| 5 | 29220001251 | CONNECTOR | |
| 6 | 29220001261 | CONNECTOR OF BRAKE | |
| 7 | 29220009751 | Brake pipe | |
| 8 | 29220000131 | CONNECTOR | |
| 9 | 4011000455 | BOLT | |
| 10 | 29220009741 | Brake pipe | |
| 11 | 29220013751 | Protecting plate | |
| 12 | 29220015001 | Air tank | |
| 13 | 29010000041 | BOLT | |
| 14 | 29220000811 | WASHER | |
| 15 | 29220000821 | TEE OF THE OIL LINE | |
| 16 | 4120006349 | Air cylinder | |
| 17 | 29220016661 | Nipple | |
| 18 | 4011000084 | BOLT | |
| 19 | 4015000197 | WASHER | |
| 20 | 29220001231 | CONNECTOR | |
| 21 | 4030000551 | O-ring | |
| 22 | 29220001241 | CONNECTOR | |
| 23 | 29220017191 | Bracket | |
| 24 | 4011000197 | BOLT | |
| 25 | 4015000186 | WASHER | |
| 26 | 4030000055 | PLUG JB1000-M22x1.5-35 | |
| 27 | 4120003758 | Brake valve | |
| 28 | 4120003757 | Pressure switch | |
| 29 | 29220009721 | Brake pipe | |
| 30 | 4011000807 | Bolt | |
| 31 | 29120007671 | CLAMP | |
| 32 | 4041001580 | Hose assembly | |
| 33 | 4041002221 | Hose assembly | |
| 34 | 4190000020 | CLIP | |
| 35 | 4041001208 | TUBE LGB145-205120 | |
| 36 | 29220017181 | Hose assembly |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
