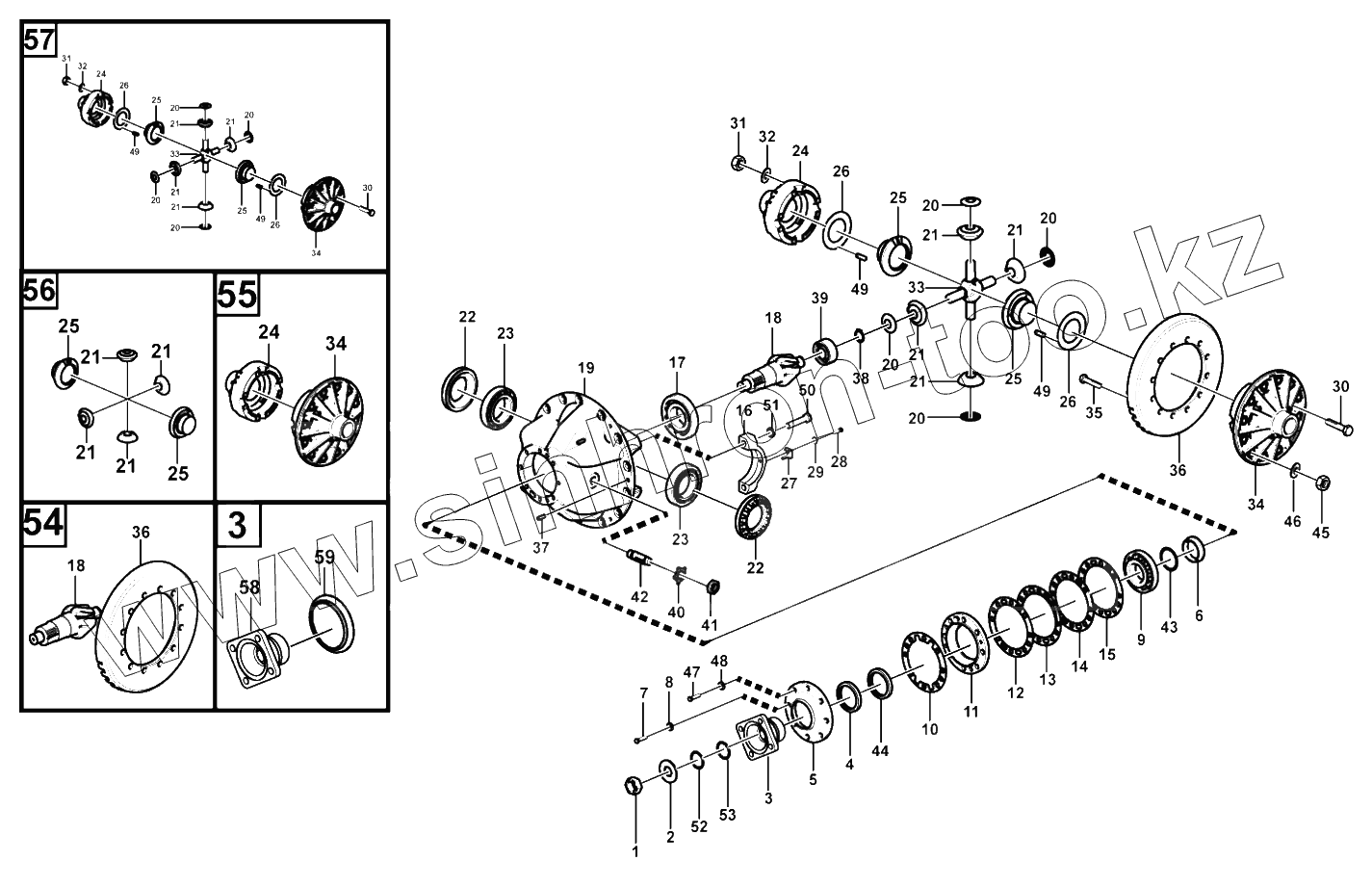

Каталог запасных частей к технике: SDLG LG936L. Front final drive assembly
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
20
20
20
20
20
20
20
21
21
21
21
21
21
21
21
21
21
21
21
22
22
23
23
24
24
24
25
25
25
25
25
25
26
26
26
26
27
28
29
30
30
31
31
32
32
33
34
34
34
35
36
36
37
38
39
40
41
42
43
44
45
46
47
48
49
49
49
49
50
51
52
53
54
55
56
57
58
59
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4013000066 | NUT | |
| 2 | 3050900007 | WASHER | |
| 3 | 2050900011 | INPUT FLANGE | |
| 4 | 4030000048 | FRAME OIL SEAL | |
| 5 | 3050900009 | SEALED COVER | |
| 6 | 3050900012 | BOSS | |
| 7 | 4011000067 | BOLT | |
| 8 | 4015000027 | WASHER | |
| 9 | 4021000028 | BEARING | |
| 10 | 3050900172 | SHIM | |
| 11 | 3050900013 | BEARING HOLDER | |
| 12 | 3050900011 | ADJUST SHIM | |
| 13 | 29070010611 | Shim | |
| 14 | 29070010621 | Shim | |
| 15 | 29070010631 | Shim | |
| 16 | 3050900023 | BEARING BLOCK | |
| 17 | 4021000029 | ROLLING BEARING | |
| 18 | 3050900055 | ACTIVE SPIRAL BEVEL GEAR | |
| 19 | 3050900016 | CARRIER | |
| 20 | 3050900017 | ANGLE GEAR SHIM | |
| 21 | 3050900018 | ANGLE GEAR | |
| 22 | 3050900019 | ADJUST BOLT | |
| 23 | 4021000035 | ROLLING BEARING | |
| 24 | 3050900020 | LEFT SHELL OF DIFFERENTIAL MECHANISM | |
| 25 | 3050900021 | HALF AXLE GEAR | |
| 26 | 3050900022 | SHIM OF HALF AXLE GEAR | |
| 27 | 3050900024 | STAY | |
| 28 | 4011000597 | BOLT | |
| 29 | 4015000025 | Washer | |
| 30 | 29090007951 | BOLT | |
| 31 | 4013000197 | NUT | |
| 32 | 29090007961 | WASHER | |
| 33 | 3050900026 | CROSS AXLE | |
| 34 | 3050900027 | RIGHT SHELL OF DIFFERENTIAL MECHANISM | |
| 35 | 29070010851 | BOLT | |
| 36 | 3050900056 | BIG SPIRAL BEVEL GEAR | |
| 37 | 4016000124 | PIN | |
| 38 | 4015000019 | CHECK RING | |
| 39 | 4021000026 | ROLLING BEARING | |
| 40 | 29070000311 | LOCKING LEAF | |
| 41 | 4013000052 | NUT | |
| 42 | 29070000301 | BOLT | |
| 43 | 3050900030 | SHIM | |
| 44 | 4030000768 | Sealing ring | |
| 45 | 4013000198 | NUT | |
| 46 | 29070009511 | WASHER | |
| 47 | 4011000186 | BOLT | |
| 48 | 4015000026 | WASHER | |
| 49 | 29070000461 | PIN | |
| 50 | 29090007971 | BOLT | |
| 51 | 29070001301 | WASHER | |
| 52 | 3050900008 | O-RING | |
| 53 | 3050900032 | CHECK RING | |
| 54 | 3050900201 | FRONT SPIRAL BEVEL GEAR | |
| 55 | 3050900199 | LEFT RINGHT SHELL OF DIFFERENTIAL MECHANISM | |
| 56 | 21909006441 | Gear kit | |
| 57 | 7200000118 | Differential | |
| 58 | 3050900057 | Connection flange | |
| 59 | 3050900058 | Sealing ring |
