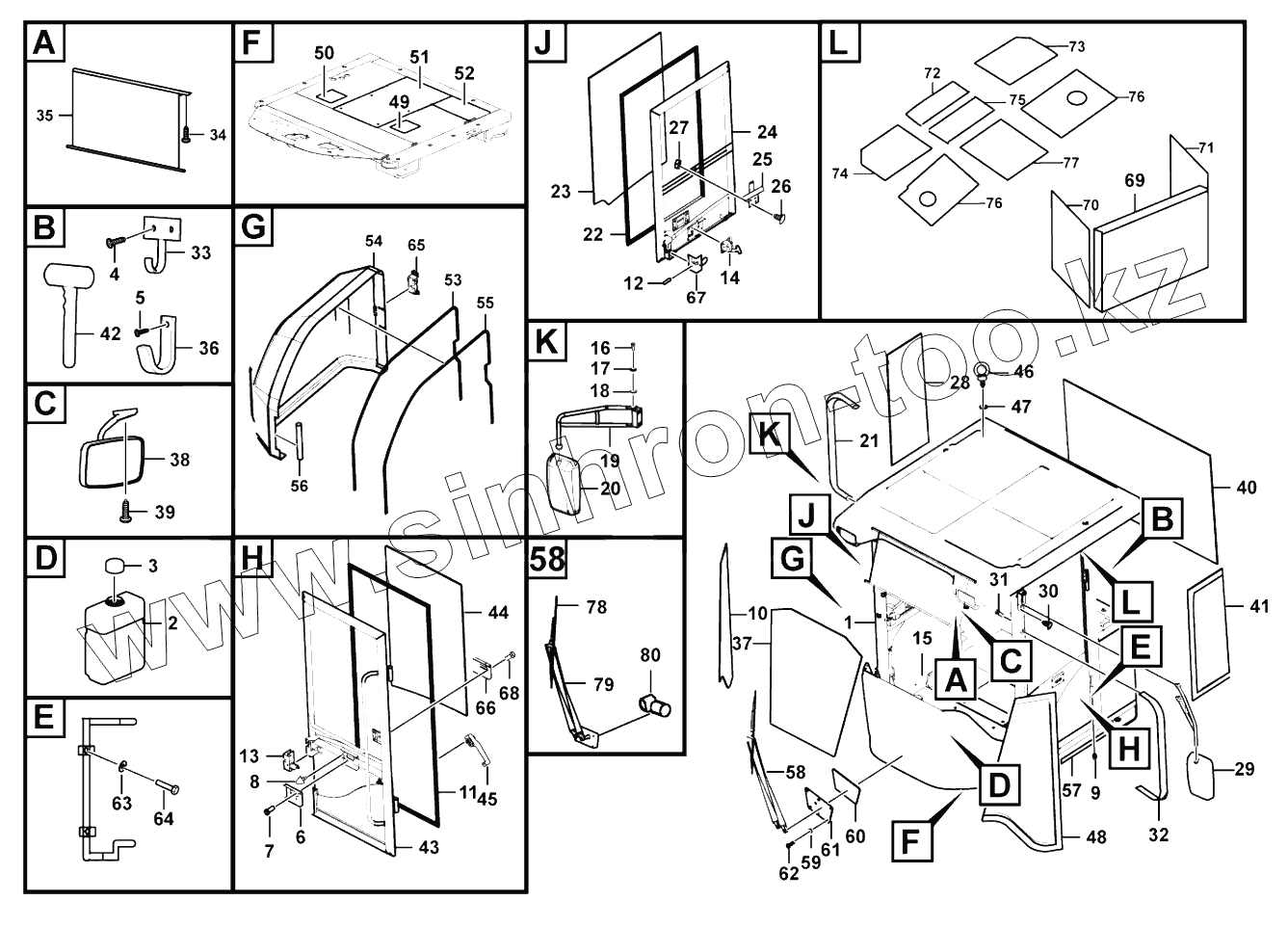

Каталог запасных частей к технике: SDLG LG936L. Cab assembly

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
76
77
78
79
80
Позиция на иллюстрации Заводской номер детали Название детали
1 29290022572 Cab frame
2 29290013351 Plastic bottle
3 29290012591 Cap
4 4014000037 SCREW
5 4011000194 Screw
6 4190001769 Catch
7 4011000458 BOLT
8 4190000596 CHECK OF UPPER GATE
9 4030000535 OIL CUP
10 29290013231 Glass
11 4190002359 Protecting moulding
12 4190001768 Pillar
13 4190002274 Lock
14 4190000595 COUNTER LOCK
15 29290021741 Cab trim
16 4011000105 BOLT
17 4015000036 WASHER
18 4015000072 WASHER
19 29290013421 Bracket
20 29290013761 Rear view mirror
21 29290013571 Handle
22 4190002360 Protecting moulding
23 29290013251 Glass
24 29290013581 Door framework
25 29290013691 Housing
26 4014000198 Screw
27 4013000028 NUT
28 29290013281 Glass
29 29290013411 Bracket
30 4014000055 SCREW GB70.1-M12x30EpZn-8.8
31 4011000560 BOLT
32 29290026241 Hand rail
33 29290013471 Clothes hook
34 4014000042 Screw
35 29290013041 Sun visor
36 29290013711 Clothes hook
37 29290013211 Glass
38 4190001841 Rear view mirror
39 4014000046 SCREW
40 29290013261 Glass
41 29290013271 Glass
42 4190000501 SAFETY HAMMER
43 29290013591 Door framework
44 29290013241 Glass
45 29290013301 Handle
46 4014000028 SCREW
47 4190000956 SEAL WASHER
48 29290013221 Glass
49 29290022591 Plate
50 29290022601 Plate
51 29290013671 Cover plate
52 29290019351 Cover plate
53 4190003104 Lock strip
54 29290013551 Protecting cover
55 29290013391 Weatherstrip
56 4190002391 Pin
57 29290013401 Sealing strip
58 29290013601 Windscreen wiper
59 4015000207 WASHER
60 29290013621 Washer
61 29290013531 Cover plate
62 4011000276 Bolt
63 4015000205 Washer
64 4011000100 Screw
65 29290013291 Lock
66 29290013701 Cover
67 4190002273 Lock
68 4014000040 SCREW
69 29290013491 Sponge
70 29290013501 Sponge
71 29290013521 Sponge
72 29290013311 Sponge
73 29290013631 Sponge
74 29290013641 Sponge
75 29290013461 Sponge
76 29290013651 Sponge
77 29290013661 Sponge
78 4190002589 Wiper blade
79 4190002588 Wiper arm
80 4190002587 Wiper motor
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
