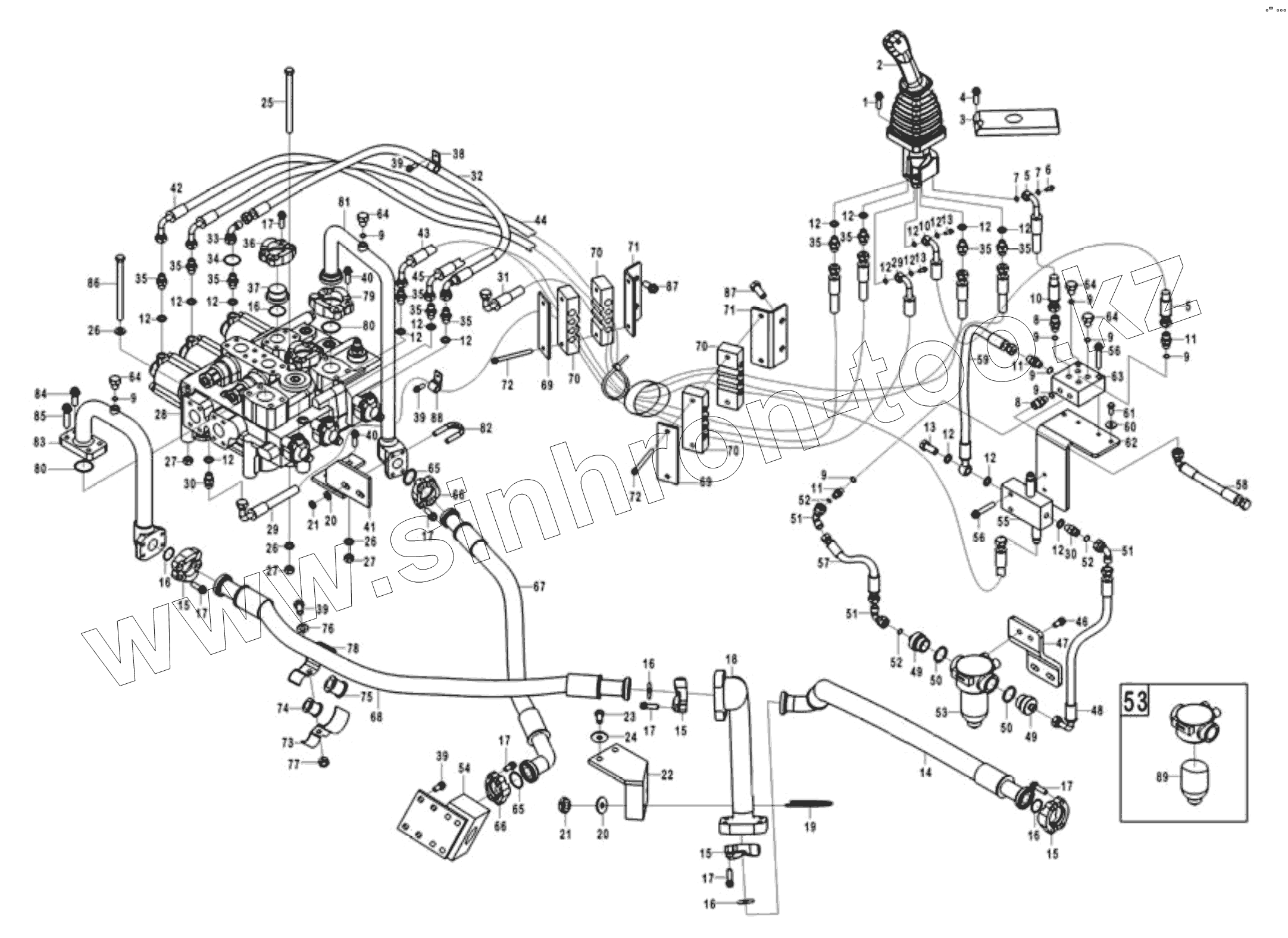

Каталог запасных частей к технике: SDLG LG936L. Hydraulic control assembly

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
5
6
7
7
8
8
9
9
9
9
9
9
9
9
9
10
10
11
11
11
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
13
13
13
14
15
15
15
15
16
16
16
16
16
17
17
17
17
17
17
17
18
19
20
20
21
21
22
23
24
25
26
26
26
27
27
27
28
29
29
30
30
31
32
33
34
35
35
35
35
35
35
35
35
35
35
36
37
38
39
39
39
39
40
40
41
42
43
44
45
46
47
48
49
49
50
50
51
51
51
52
52
52
53
53
54
55
56
56
57
58
59
60
61
62
63
64
64
64
64
65
65
66
66
67
68
69
69
70
70
70
70
71
71
72
72
73
74
75
76
77
78
79
80
80
81
82
83
84
85
86
87
87
88
89
Позиция на иллюстрации Заводской номер детали Название детали
1 4011000488 BOLT
2 4120002027 PILOT VALVE
3 29120015911 COVER PS
4 4014000058 SCREW
5 29120016291 FEEDING HOSE OF PILOT VALVE
6 4011000366 BOLT
7 29120015221 WASHER
8 4041000150 STAIGHT JOINT
9 4041000767 O-RING
10 29120010841 FRONT PILOT PTPE
11 4041000604 JOINT
12 29120014931 WASHER
13 4011000344 BOLT
14 4041000532 TUBE
15 4041000056 FLANGE
16 4030000029 O-RING
17 4011000475 BOLT
18 29120019351 Pipe
19 4011000556 U-BOLT
20 4015000162 Washer
21 4013000007 NUT
22 29120019271 Anchor plate
23 4011000197 BOLT
24 4015000186 WASHER
25 4011000057 BOLT
26 4015000168 WASHER
27 4013000011 NUT
28 4120001054 MULTIPLE UNIT
29 29120016301 PIPE
30 29120007651 JOINT
31 4041001061 PIPE
32 4041001189 HOSE
33 4041001047 CONNECTOR
34 4030000530 O-RING
35 29120015401 FITTING
36 4041000027 FLANGE
37 4041000716 DUST-PREVENTION CAP
38 29120007671 CLAMP
39 4011000458 BOLT
40 4011000477 BOLT
41 29120011391 STEADY REST
42 29120016311 PIPE
43 29120016321 PIPE
44 29120016331 PIPE
45 29120016341 PIPE
46 4011000447 BOLT
47 29120016021 PLATE
48 4041000576 PIPE
49 29120015081 JOINT
50 4030000276 O-RING
51 4041001023 JOINT
52 4030000240 O-RING
53 4120001954 STRAINER
54 29120004041 TWO-WAY MASS
55 4120005063 Valve
56 4011000473 BOLT
57 4041000613 PIPE
58 29120010801 RETURN PIPE OF TRANSITION BLOCK
59 29120011471 RETURN PIPE OF SELECTOR VALVE
60 4015000256 WASHER
61 4011000105 BOLT
62 29120010771 MOUNTED PLATE
63 29120010791 TRANSITION BLOCK
64 4041000774 PLUG
65 4030000026 O-RING
66 4041000043 FLANGE
67 4041000731 PIPE
68 4041001301 PIPE
69 29120016351 MOUNTED PLATE
70 29120016741 CLAMP
71 29120016951 MOUNTED PLATE
72 4011000493 BOLT
73 29120015431 CLAMP
74 4041001188 CUSHION
75 4041000869 CUSHION
76 4015000072 WASHER
77 4013000033 NUT
78 29120015711 CLAMP
79 4041000010 FLANGE
80 4030000130 O-RING
81 29120010691 FEEDING TUBE OF MULTIPLE UNIT VALVE
82 4041000958 U-BOLT
83 29120016541 TUBE
84 4011000478 BOLT
85 4011000793 BOLT
86 4011000056 BOLT
87 4011000560 BOLT
88 26370001961 Clamp
89 4120001954001 Filter insert
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
